U.s. Motors 3G-OTH-60817 — Technical Specifications

Name: U.s. Motors 3G-OTH-60817 U.S. MOTORS Motor: Flange Mount, Totally Enclosed Fan Cooled, 7 1/2 hp, 460V AC, 3,600 RPM (MPN HT39). Key specifications — Brand: U.S. MOTORS; Nameplate Voltage @ 60 Hz: 460V AC; Full Load Current @ 60 Hz: 18.5/9.2 A; Nameplate RPM @ 60 Hz: 3,600 RPM; Motor Enclosure: TEFC.
Brand: U.s. Motors

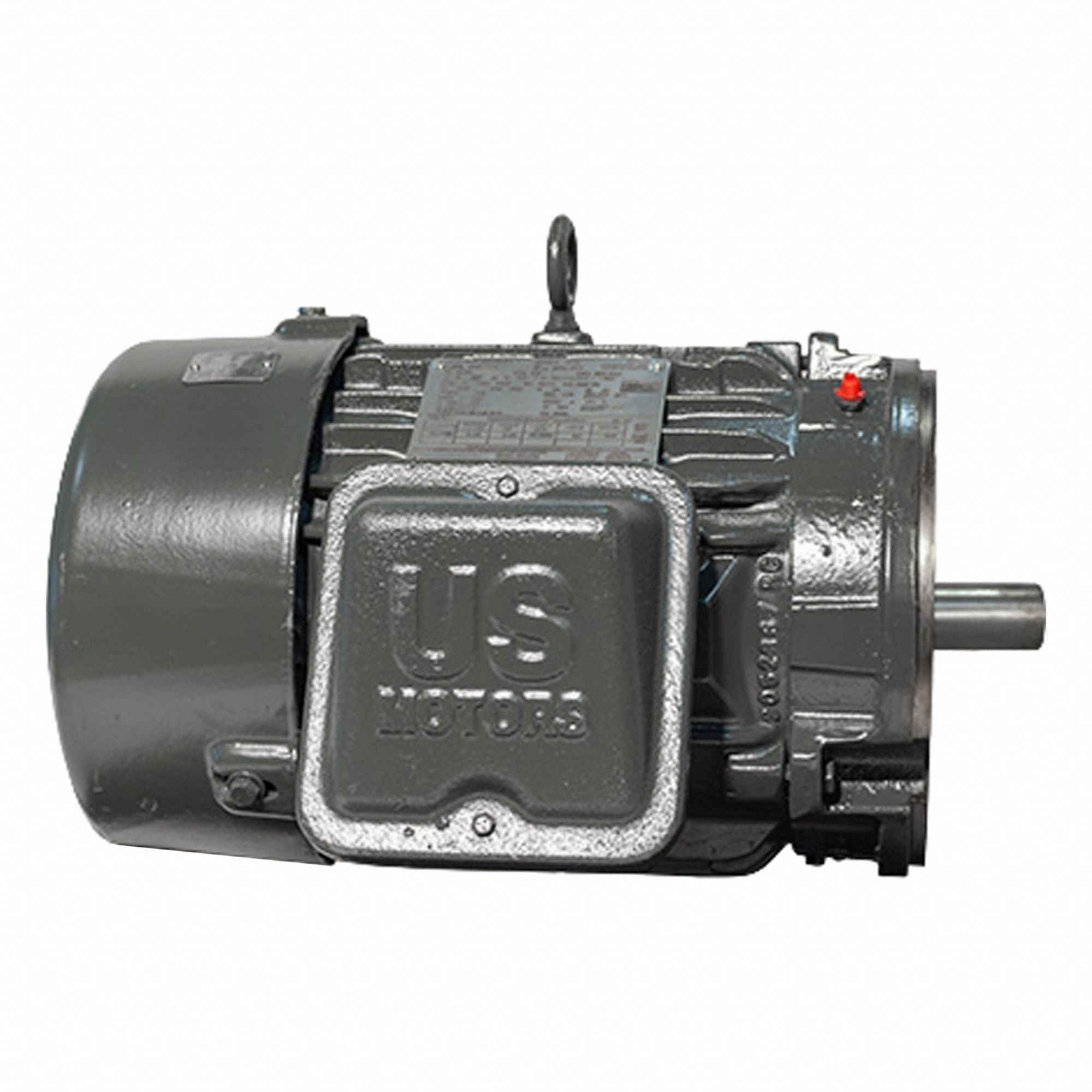

The U.S. MOTORS HT39 is a C-Face 3-Phase General Purpose AC Motor with a TEFC enclosure, rated at 7 1/2 hp, 460V AC, and 3,600 RPM at 60 Hz. It has a full load current of 18.5/9.2 A at 60 Hz. This flange-mount motor is designed for industrial applications requiring a compact, reliable power source.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	U.S. MOTORS
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	3,600 RPM
Manufacturer Part Number	HT39
Full Load Current @ 60 Hz	18.5/9.2 A
Nameplate Voltage @ 60 Hz	460V AC
