PACKARD

The PACKARD EC Max Series is a line of electronically commutated motors (ECMs) with constant-torque operation. They are primarily designed for evaporative cooler and indoor blower applications in HVAC systems. These motors are available in 48-frame and non-standard frame sizes, with power ratings from 1/3 hp to 1 hp. They operate on 115/230V AC and feature either open or totally enclosed air-over (TEAO) enclosures. The EC Max Series is not compatible with external controls, so they are suited for systems where integrated motor control is acceptable. Typical uses include direct-drive fan applications in residential and light commercial cooling equipment.

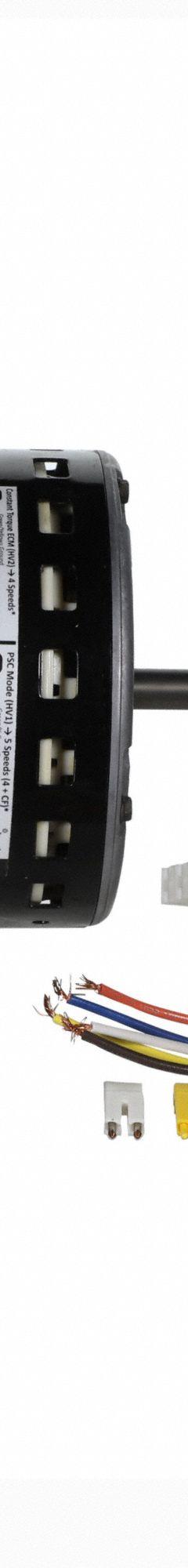

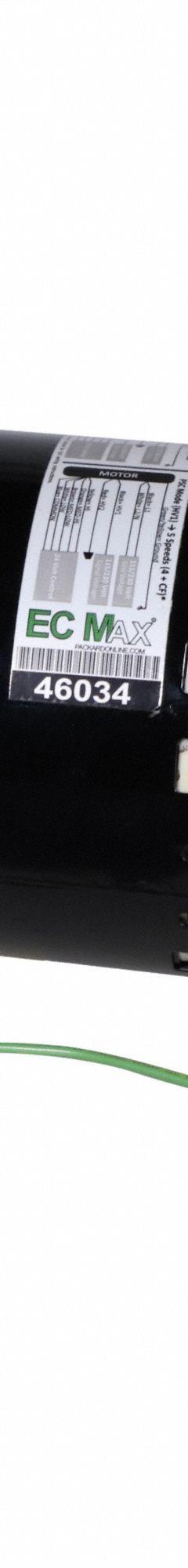

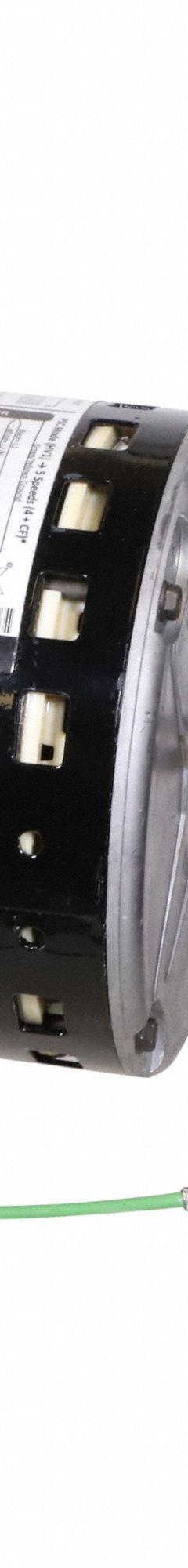

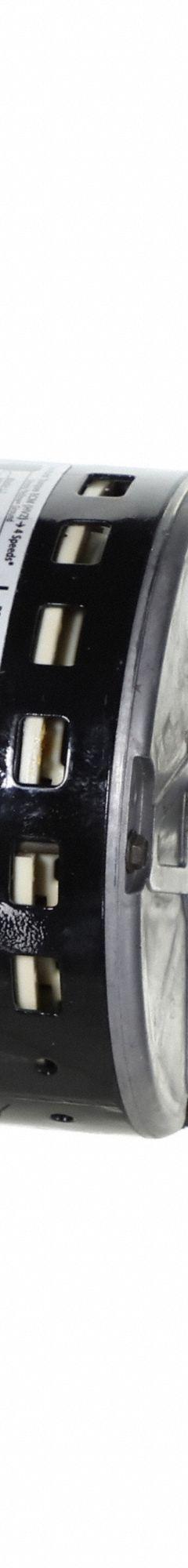

PACKARD EC Max Series motors are dual-voltage, operating on 115/230V AC. Current draw varies by model: for example, the 1 hp model (MPN 46001) draws 11.0 A, the 3/4 hp model (MPN 46034) draws 4.9 A, the 1/2 hp model (MPN 46012) draws 4.0 A, and the 1/3 hp model (MPN 46013) draws 3.0 A. Some non-standard frame models, such as the 5411EC, have a rated current of 0.01 A. Always verify the specific motor's nameplate data for exact electrical requirements.

No, PACKARD EC Max Series motors are not compatible with external controls. They are designed for constant-torque operation with integrated control, meaning the motor's speed and torque are managed internally. This simplifies wiring and installation in applications where variable speed control from an external device is not required. If your system requires external control, you would need to select a different motor type. For assistance in choosing the right motor for your application, consult the product specifications or contact 3G Electric for technical support.

Open enclosures have ventilation openings that allow air to pass directly over the motor windings, providing cooling but offering less protection against dust and moisture. Totally enclosed air-over (TEAO) enclosures are sealed except for the air-over cooling path, meaning the motor is enclosed but relies on a forced air stream from the driven fan to cool it. TEAO motors are typically used in dirty or damp environments where open motors might fail prematurely. PACKARD offers both types in the EC Max Series, with TEAO models often featuring rigid bases and open models using belly band mounts.

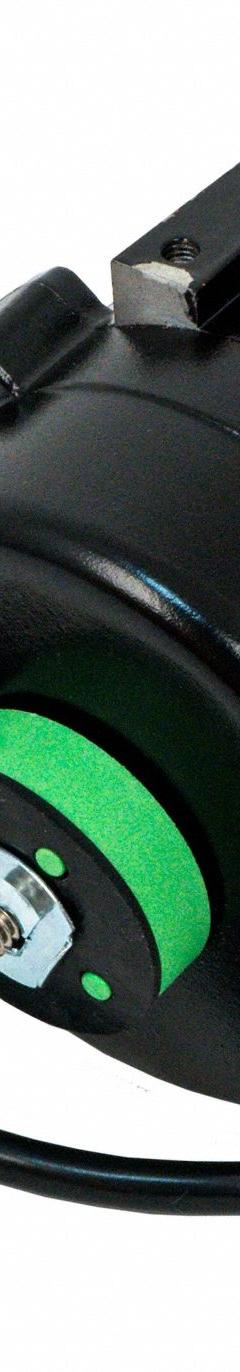

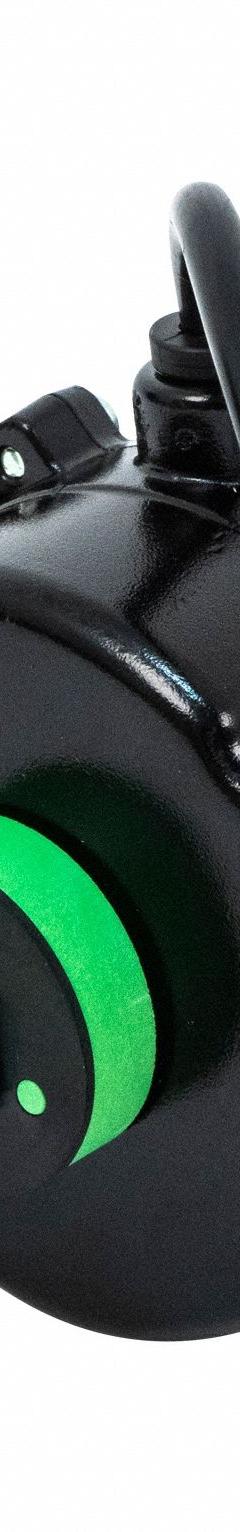

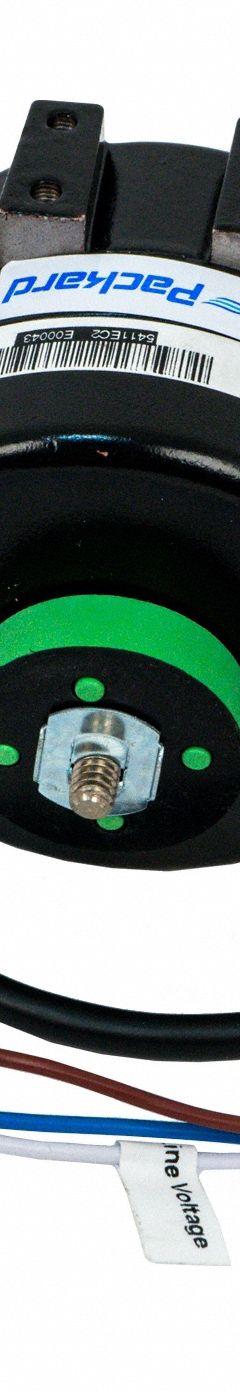

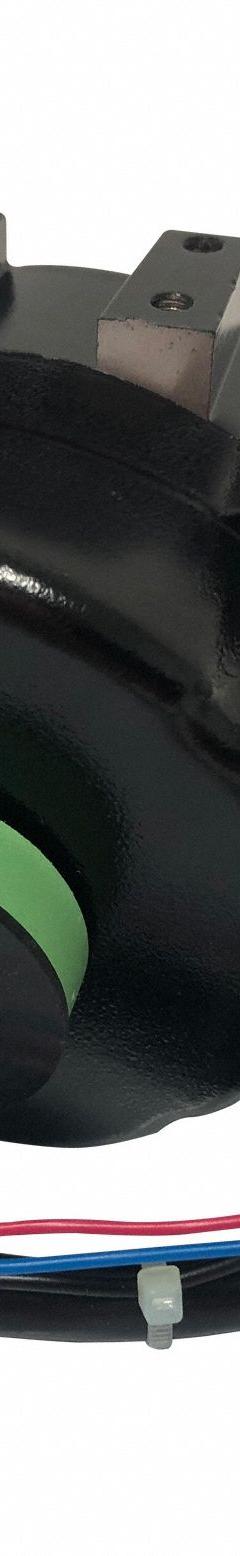

PACKARD EC Max Series motors come in 48-frame and non-standard frame sizes. The 48-frame motors are standard NEMA frame dimensions, commonly used in indoor blower applications. Non-standard frame motors, such as those with MPNs 5411EC, 5412EC, 5414EC, and 5411EC90, are designed for specific evaporative cooler models where a standard frame may not fit. These non-standard frames often include rigid base mounting. When replacing a motor, always match the frame size and mounting configuration to the original equipment to ensure proper fit and alignment.

Yes, 3G Electric offers technical support for PACKARD products, including help with model selection, specification interpretation, and compatibility checks. The company can provide access to product datasheets and manuals to assist with installation and troubleshooting. For complex applications, 3G Electric's team can work with you to identify the correct replacement motor or component based on your system requirements. Support is available globally, aligning with 3G Electric's worldwide distribution of PACKARD and other industrial equipment lines.
