APC BY SCHNEIDER

APC by Schneider Electric is a product line within Schneider Electric's power management portfolio, focused on uninterruptible power supplies (UPS), surge protection, and related power infrastructure. The brand originated as American Power Conversion, founded in 1981, and became part of Schneider Electric in 2007. APC products are widely deployed in information technology, industrial, and commercial environments where continuity of electrical supply is required. The line includes standby, line-interactive, and online double-conversion UPS topologies, ranging from small desktop units to large three-phase systems. 3G Electric supplies APC by Schneider Electric UPS systems, replacement batteries, and external battery packs to technical buyers worldwide. The catalog includes sealed lead-acid replacement batteries, such as the RBC17 (12 V DC, 9 Ah) for the BX950MI-AZ, and external battery packs like the SMX120RMBP2U (120 V DC) and BR24BPG (24 V DC, 18 Ah) that extend runtime for compatible UPS models. Standby UPS systems are available in ratings from 500 VA (BK500BLK) to 4,000 VA (SYPM4KP), with input and output voltages including 120 V and 200–208 V. These products are used in server rooms, data centers, industrial control cabinets, and commercial facilities to protect equipment from outages, voltage fluctuations, and surges. Technical characteristics vary by model: battery connection types include detachable and attached cables; battery capacities range from 1.2 Ah to 18 Ah; and UPS topologies include standby and online double-conversion. 3G Electric supports the APC line by maintaining stock of UPS units, replacement batteries, and extension battery packs, and by providing specification data, compatibility information, and logistics coordination for global delivery. Buyers can reference manufacturer part numbers (MPNs) such as RBC17, SMX120RMBP2U, BR24BPG, BK500BLK, BE650G1, and SYPM4KP when specifying or cross-referencing components. The product range addresses common requirements for backup power in IT and industrial settings, including runtime extension, battery replacement, and surge protection. 3G Electric's role is to make these components available with clear technical documentation and order fulfillment support, without regional restrictions.

Genuine

OEM Parts

Expert

Tech Support

1 Day

Quote Response

Worldwide

Origin

Get a Quote WhatsApp Sales Telegram Sales

Worldwide Shipping

Air & sea freight

Datasheets on Request

Technical specs & drawings

1-Day Quote Response

Singapore-based team

BrandAPC BY SCHNEIDER

CategoryOnline Double-Conversion UPS Systems

Sign inAvailable

← Prev1 2 3 4 Next →

About APC BY SCHNEIDER

Common Applications

Data centers — APC SYPM4KP 4,000 VA online double-conversion UPS for continuous power conditioning of server racks and network equipment.

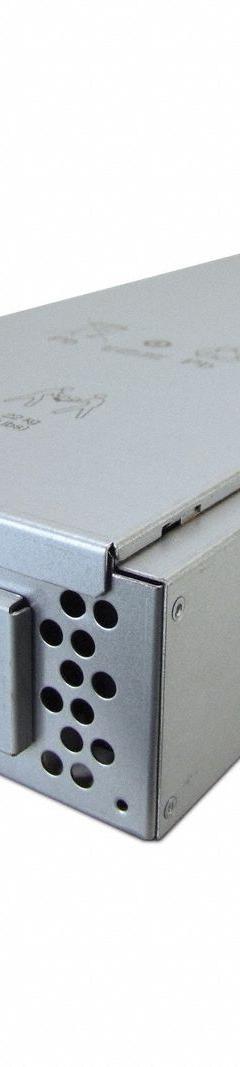

Server rooms — APC SMX120RMBP2U external battery pack (120 V DC) to extend runtime for compatible UPS systems during extended outages.

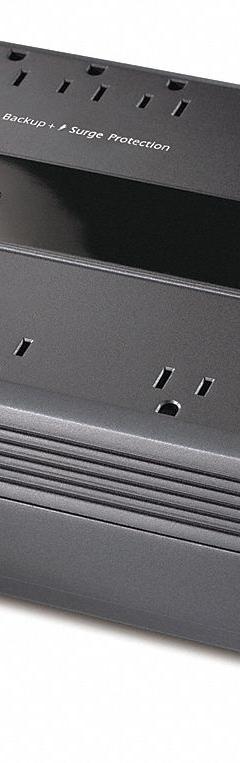

Industrial control cabinets — APC BE650G1 standby UPS (650 VA, 120 V) for backup power to PLCs, HMIs, and control components.

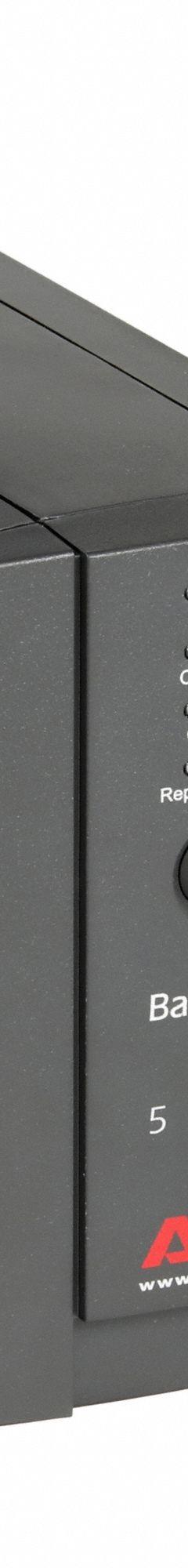

Desktop and peripheral protection — APC BK500BLK standby UPS (500 VA, 120 V) for computers, monitors, and small network devices.
Runtime extension for branch office UPS — APC BR24BPG external battery pack (24 V DC, 18 Ah) compatible with BR1500G UPS.
Battery replacement in installed UPS — APC RBC17 replacement battery (12 V DC, 9 Ah) for BX950MI-AZ and similar models requiring periodic battery service.

Frequently asked questions

Common questions about APC BY SCHNEIDER from 3G Electric.

What is the difference between a replacement battery and an external battery pack for APC UPS systems?

A replacement battery, such as the RBC17 (12 V DC, 9 Ah), is a direct substitute for the internal battery in a compatible UPS model like the BX950MI-AZ. It restores the original runtime capacity. An external battery pack, such as the SMX120RMBP2U (120 V DC) or BR24BPG (24 V DC, 18 Ah), connects to the UPS via an attached cable to add additional battery capacity and extend runtime beyond the internal battery. External packs are used when longer backup time is needed for critical loads. Both types require matching the UPS model and voltage specifications.

Which APC UPS models are compatible with the RBC17 replacement battery?

The RBC17 replacement battery is specified for use with the APC BX950MI-AZ model. It is a sealed lead-acid battery rated 12 V DC, 9 Ah, with a detachable cable connection. Compatibility should be verified against the UPS model number and battery voltage before ordering. Using a battery with incorrect voltage or capacity can damage the UPS or reduce backup performance. For other UPS models, refer to the manufacturer's battery replacement guide or contact 3G Electric with the UPS model number to confirm the correct replacement part.

What input and output voltages are available in APC standby UPS systems from 3G Electric?

APC standby UPS systems in the 3G Electric catalog include models with 120 V input and 120 V output, such as the BK500BLK (500 VA) and BE650G1 (650 VA). A higher-capacity model, the SYPM4KP, is rated 4,000 VA with 200–208 V input and uses online double-conversion technology. Input and output voltage must match the local electrical supply and the connected equipment requirements. For three-phase or other voltage configurations, consult the full APC product line or specify the required voltage when requesting a quote.

How do I choose between a 500 VA and a 4,000 VA APC UPS system?

The choice depends on the total load in volt-amperes (VA) and the required runtime. A 500 VA standby UPS like the BK500BLK is typically used for desktop computers, network equipment, or small peripherals. A 4,000 VA online double-conversion UPS like the SYPM4KP is suited for server racks, industrial control systems, or larger equipment requiring continuous power conditioning. Calculate the sum of connected equipment VA ratings, add a margin for future expansion, and select a UPS rating above that total. Runtime can be extended with external battery packs where supported.

What is the difference between standby and online double-conversion APC UPS topologies?

Standby UPS systems, such as the BK500BLK and BE650G1, normally pass utility power to the load and switch to battery backup when input voltage drops or fails. They also provide surge protection. Online double-conversion UPS systems, such as the SYPM4KP, continuously convert incoming AC power to DC and back to AC, isolating the load from voltage fluctuations, frequency variations, and outages. Online double-conversion provides a higher level of power conditioning and is typically used for sensitive or critical equipment. Selection depends on the tolerance of the connected load to power disturbances.

Can APC external battery packs be used to extend runtime on any UPS model?

No. External battery packs are designed for specific UPS models and voltage ratings. For example, the SMX120RMBP2U (120 V DC) is compatible with the AP9625 and AR201, while the BR24BPG (24 V DC, 18 Ah) is compatible with the BR1500G. The SMX48RMBP2U (48 V DC) is compatible with the APCRBC115 and SU032A. Connecting an incompatible battery pack can cause damage or unsafe operation. Always verify the UPS model number and the battery pack's specified compatibility before ordering. 3G Electric can provide compatibility data for the APC battery packs in stock.
