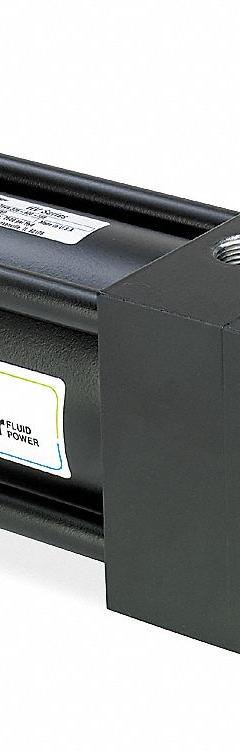

Miller Fluid Power NFPA tie-rod cylinders are designed to meet NFPA dimensional standards, ensuring interchangeability. They are available in bore sizes ranging from 1-1/2 inches to 4 inches and larger, with various stroke lengths. The cylinders feature steel tie rods and bodies, and can be configured for hydraulic or pneumatic service. Mounting styles include front flange (NFPA MF1) and rear flange (NFPA MF2), among others. Operating pressure ratings depend on the specific model and bore size. Seal materials typically include nitrile rubber with a 90 durometer hardness, suitable for temperatures from -20 to 200 degrees Fahrenheit. These cylinders are used in industrial applications requiring linear motion and force.

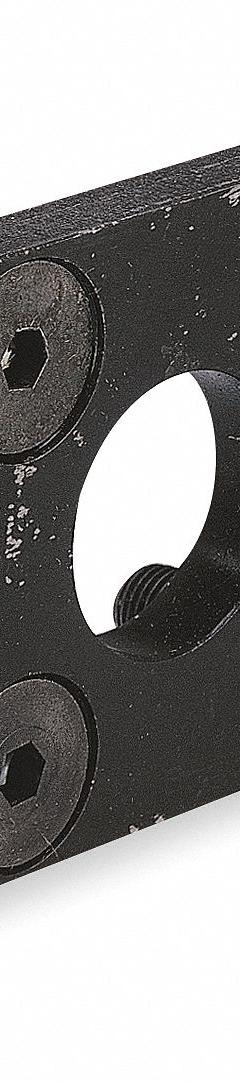

To select the correct Miller Fluid Power flange mount, first identify the cylinder bore diameter and the required mounting configuration (front or rear flange). The mounts are designed for specific bore sizes, such as 1-1/2 in, 2 in, 2-1/2 in, 3-1/4 in, and 4 in. Thread sizes for the mounting bolts vary accordingly, from 7/16-20 to 1-1/4-12. Ensure the mount complies with NFPA MF1 (front) or MF2 (rear) standards. The mount includes four bolts for installation. Verify that the cylinder's mounting pattern matches the flange mount's dimensions. For assistance, consult the cylinder's documentation or contact 3G Electric with the cylinder's model and bore size.

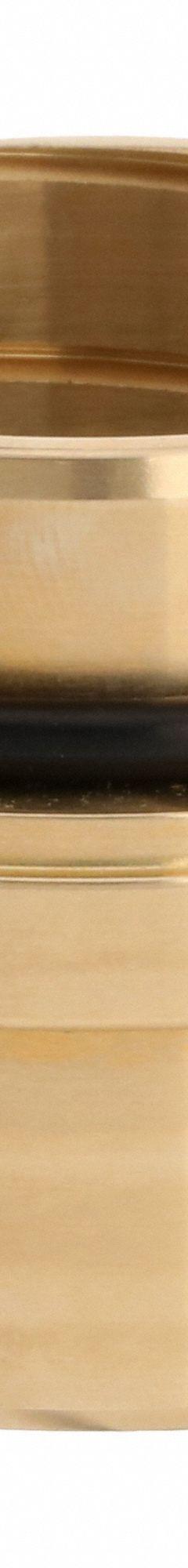

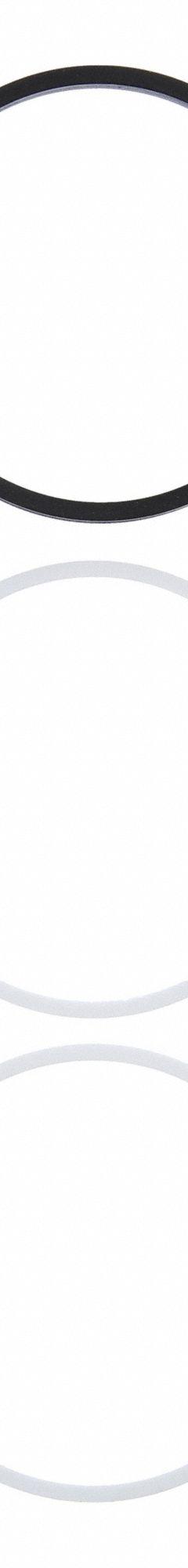

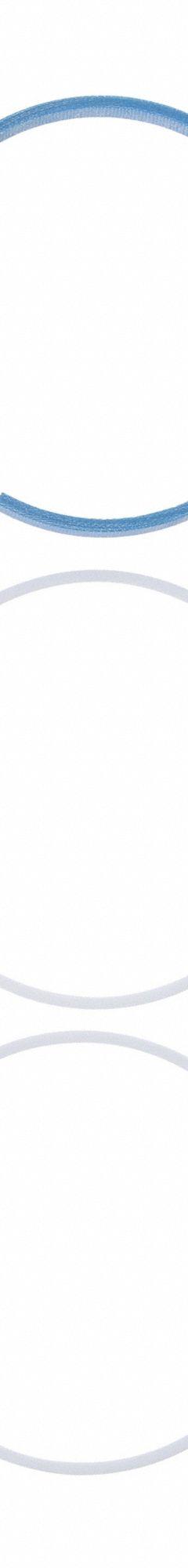

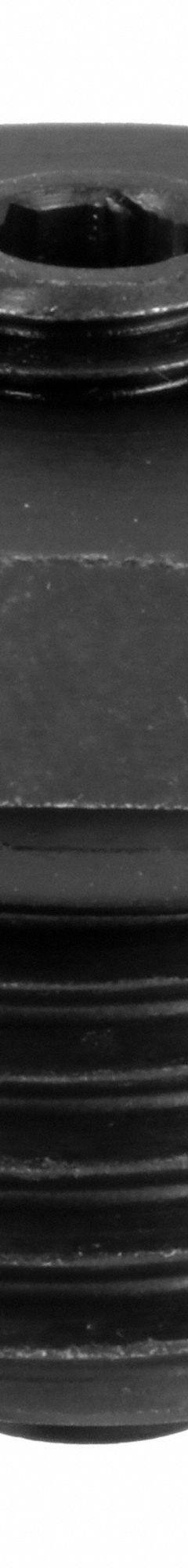

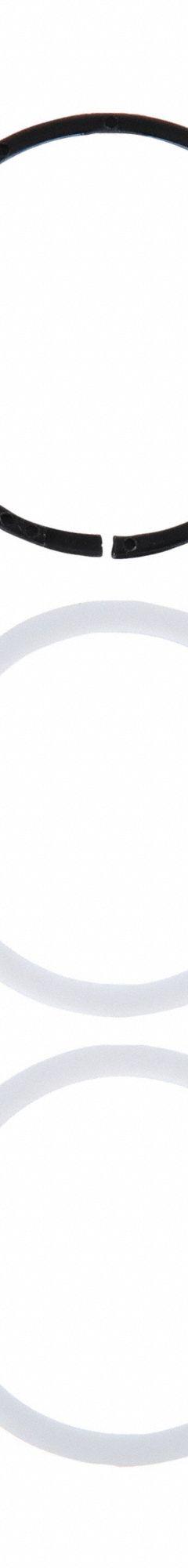

A Miller Fluid Power piston seal kit typically includes a wiper seal, rod seal, and O-ring. These components are made from black nitrile rubber with a 90 durometer hardness, providing resistance to hydraulic fluids and temperatures from -20 to 200 degrees Fahrenheit. The kits are designed for specific bore diameters and groove widths, such as 1-1/2 in bore with 3/16 in groove width, or 3-1/4 in bore with 5/16 in groove width. The seal kit allows for rebuilding hydraulic or pneumatic cylinders to restore performance and prevent leaks. It is important to match the kit to the cylinder's bore and groove dimensions for proper fit and function.

Yes, Miller Fluid Power cylinders that are manufactured to NFPA standards are dimensionally interchangeable with other NFPA-compliant cylinders. This includes mounting dimensions, port locations, and rod end threads. The NFPA standards ensure that cylinders from different manufacturers can be swapped without modifying the mounting or connections. However, always verify the specific model's specifications, as some custom or non-standard cylinders may not fully comply. Interchangeability applies to bore sizes, stroke lengths, and mounting styles that adhere to NFPA guidelines. For critical applications, consult the technical datasheets to confirm compatibility.

Miller Fluid Power nitrile seals, such as those in piston seal kits, are rated for temperatures from -20 to 200 degrees Fahrenheit (-29 to 93 degrees Celsius). This range is typical for nitrile rubber (Buna-N) compounds with a 90 durometer hardness. These seals are suitable for use in hydraulic and pneumatic systems where operating temperatures fall within this range. Exposure to temperatures outside this range may cause seal degradation or failure. For applications requiring higher or lower temperatures, alternative seal materials such as Viton or PTFE may be necessary. Always confirm the seal material compatibility with the system fluid and operating conditions.

Yes — 3G Electric (S) Pte. Ltd. supplies MILLER FLUID POWER products. We stock the MILLER FLUID POWER catalog and supply genuine factory-original products with full manufacturer warranty and technical support.
