CHEMTROL

CHEMTROL ball valves are manufactured in several materials to suit different chemical and temperature requirements. The product range includes polypropylene, CPVC, PVC, PVDF, and carbon steel. Polypropylene valves offer broad chemical resistance and are suitable for many acids and bases. CPVC valves provide higher temperature tolerance, typically up to 210°F. Carbon steel valves are used in applications where metallic construction is needed, such as high-pressure systems. Each material has specific pressure and temperature ratings that should be verified against the application conditions.

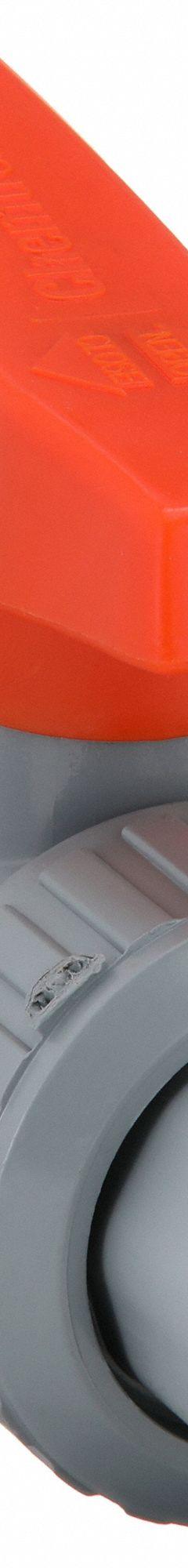

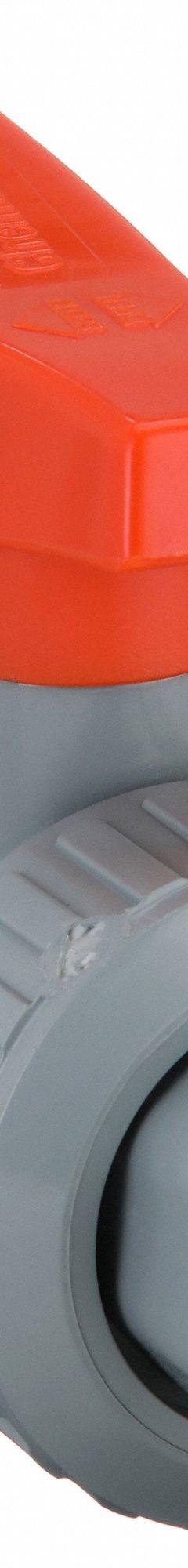

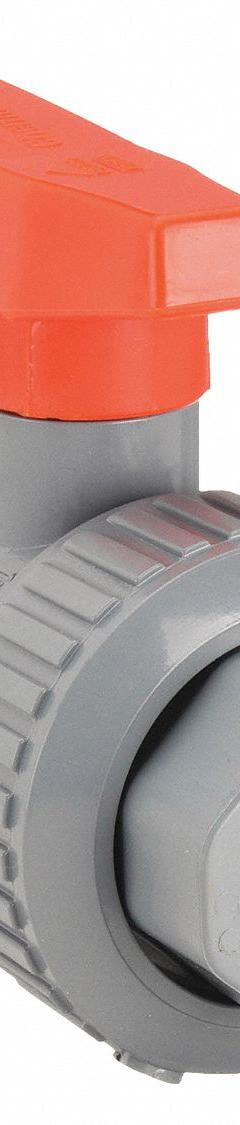

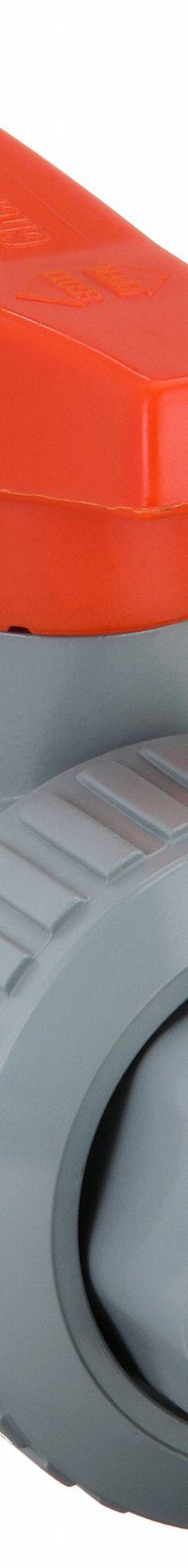

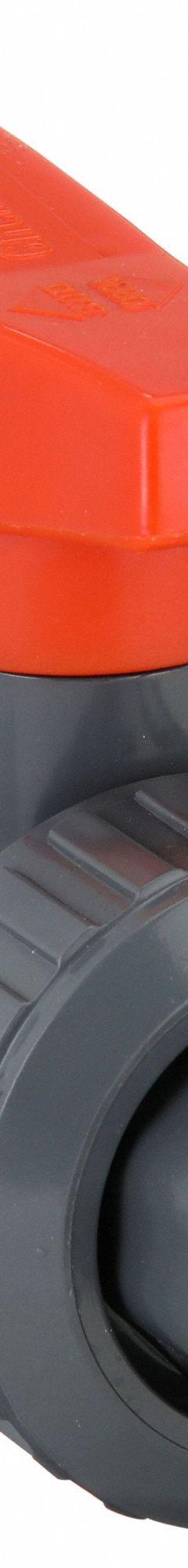

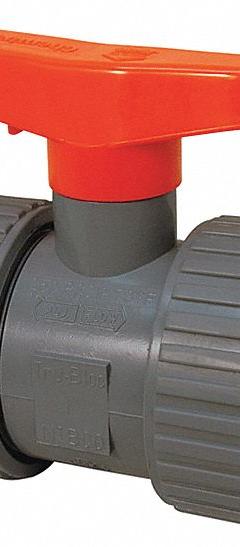

CHEMTROL ball valves are offered with several end connection types to accommodate different piping systems. Common options include socket connections for solvent welding, FNPT (female national pipe thread) for threaded installations, and true union socket/NPT combinations that allow for easy disassembly without disturbing the piping. The specific connection type depends on the valve model and material. For example, the CPVC true union valves (SKU 38AP81, 38AP82) feature both socket and NPT ends, while carbon steel valves (SKU 489X68-489X71) use FNPT connections.

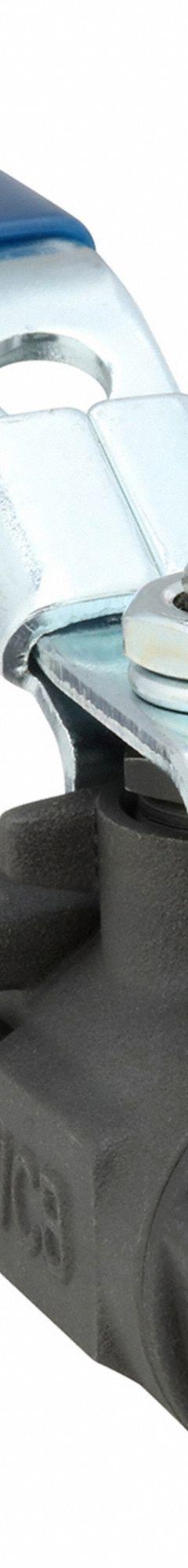

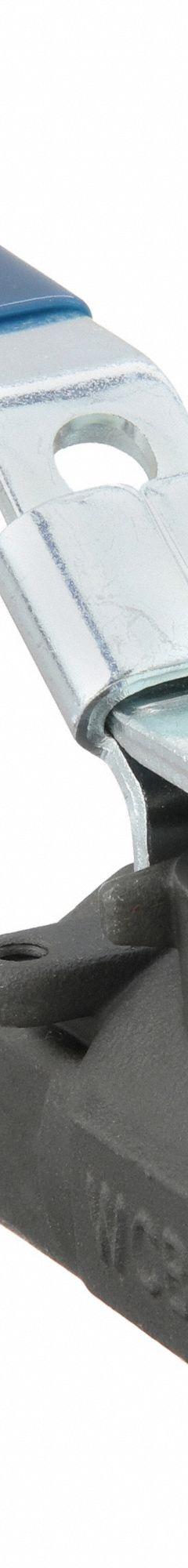

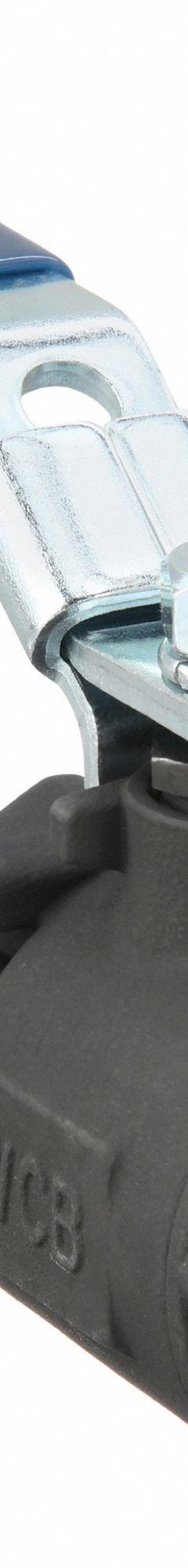

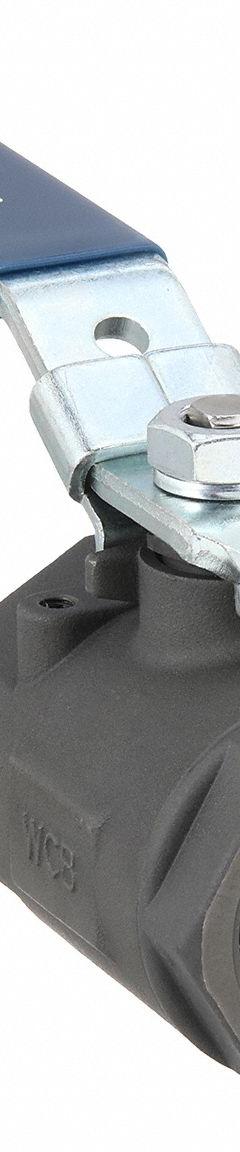

CHEMTROL manual two-way ball valves come with different handle types to suit operational and safety needs. The available handles include tee handles, lever handles, and locking lever handles. Tee handles provide a compact design for limited-space installations. Lever handles offer ergonomic operation for frequent use. Locking lever handles include a mechanism to secure the valve in the open or closed position, preventing accidental operation. The handle type is specified in the product SKU and manufacturer part number, such as the locking lever on carbon steel models (NL94T56, NL94T5A, NL94T58, NL94T5C).

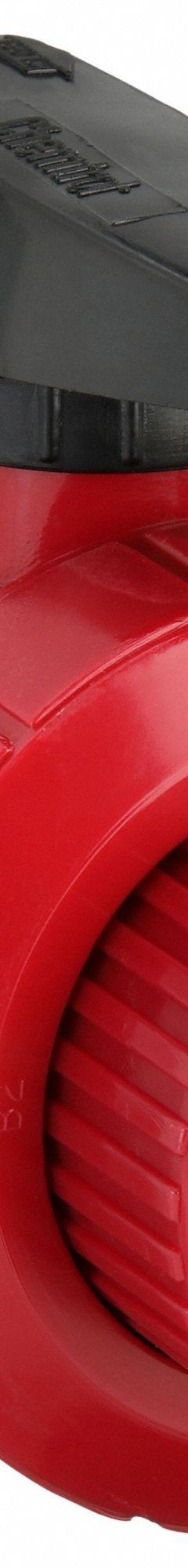

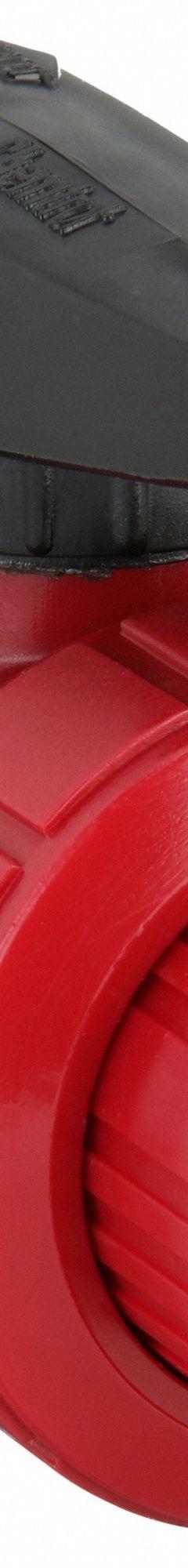

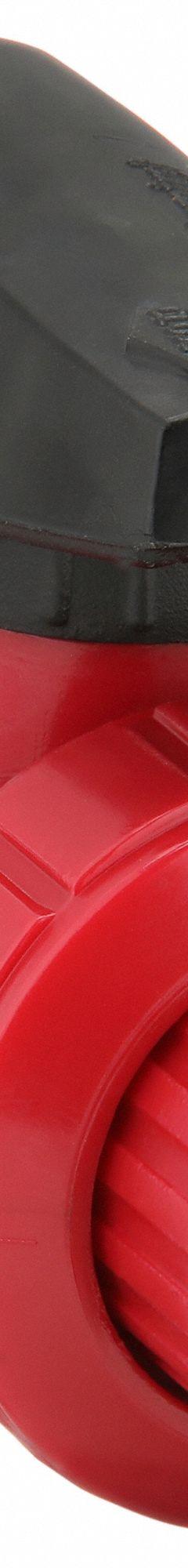

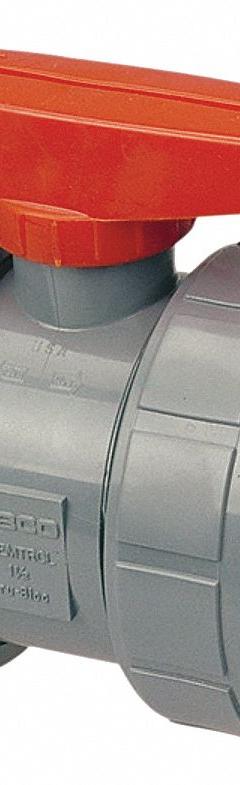

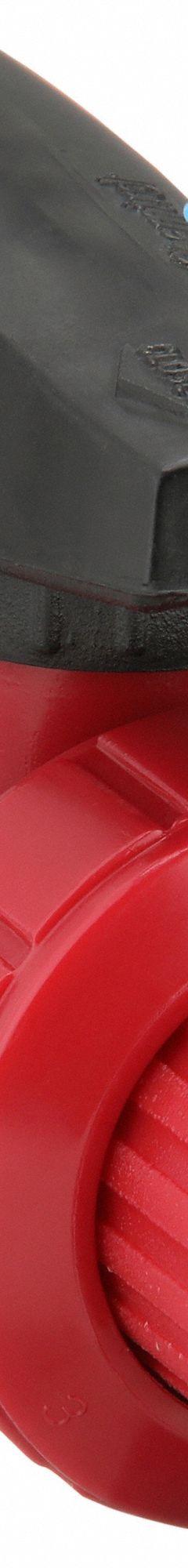

The suitability of CHEMTROL ball valves for high-temperature applications depends on the valve material. CPVC valves are rated for continuous service up to 210°F (99°C) and are commonly used in hot water and chemical processing systems. Polypropylene valves have a lower maximum temperature, typically around 180°F (82°C). PVDF valves can handle temperatures up to 280°F (138°C). Carbon steel valves can withstand higher temperatures but are limited by the seat and seal materials. Always consult the manufacturer's specifications for the specific valve model to ensure it meets the temperature requirements of your application.

CHEMTROL ball valves are available in standard port and full port configurations. Standard port valves have a ball bore that is smaller than the pipe diameter, which reduces flow capacity but allows for a more compact valve body. Full port valves have a ball bore equal to the pipe diameter, providing minimal flow restriction and lower pressure drop. The product listings for CHEMTROL valves, such as the carbon steel models (NL94T56, NL94T5A, NL94T58, NL94T5C), specify 'Std Port Ball Port,' indicating standard port design. For applications requiring maximum flow, full port valves should be selected.

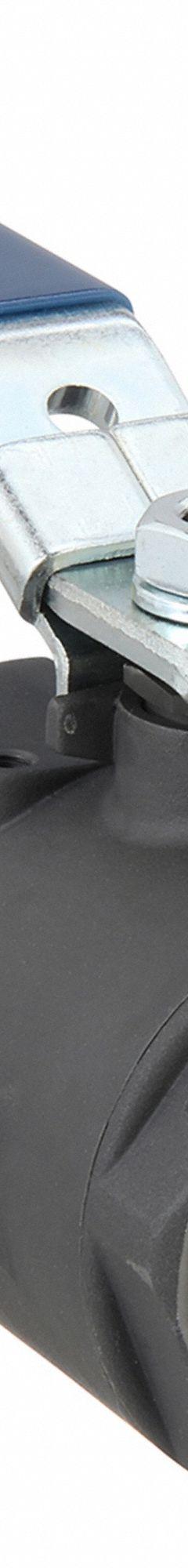

Yes, CHEMTROL offers vented ball valves designed for applications where pressure relief is needed. The carbon steel models (SKU 489X68-489X71) are described as 'Vented Ball Carbon Steel Ball Valves,' indicating they include a venting feature. Vented ball valves have a small hole drilled in the ball that allows trapped pressure to escape when the valve is in the closed position, preventing damage to the valve or piping system. This design is particularly useful in thermal expansion scenarios or when the valve is used as a block valve in a system that may experience pressure buildup.
