GEM BY TRIPLETT

GEM by Triplett is a line of video, audio, and data connectivity products built for professional installation environments. Triplett has a long history in test equipment and connectivity, and the GEM series focuses on passive and active components that carry analog and digital signals over coaxial and twisted-pair cabling. The product families include A-V hubs, extenders, baluns, adapters, and coaxial connectors. These components are used in surveillance, digital signage, commercial AV, and broadcast systems where signal integrity over distance is a primary concern. The hubs in the GEM line, such as the HDHUB-16PVP and HDHUB-8P, distribute video and power over Category 5e cabling through RJ45 female ports. They are available in 8-port and 16-port configurations, with some models including built-in TVS surge protection or lightning protection rated to Design Grade III. Baluns like the HDB-RJPT2 convert analog video from BNC male pigtails to screw terminals, allowing coaxial-based cameras to run over twisted-pair infrastructure. Adapters such as the BNC male to RJ45 female unit provide a direct interface between coaxial and twisted-pair cabling. The connector range includes male BNC connectors for RG-59 and RG-6 coaxial cables, with twist-on and compression termination styles, nickel-plated finishes, and 10-pack packaging. These connectors are used to terminate cables in video surveillance and RF signal applications. 3G Electric supplies the GEM by Triplett line as part of its industrial-equipment catalog. The product data available includes port counts, connector types, cable compatibility, surge protection ratings, and physical dimensions. This allows technical buyers to match components to existing cabling infrastructure and signal requirements. 3G Electric supports the line with logistics and quote-based ordering for global customers. The GEM by Triplett range is suited to projects that require reliable signal distribution over structured cabling, whether for new installations or upgrades to existing analog or high-definition systems. The components are designed to work together, forming a complete chain from camera or source to display or recording device. For plant engineers and maintenance managers, these products offer a way to extend or adapt video signals without replacing entire cabling systems. The use of Category 5e cabling for video and power distribution can simplify installation and reduce the need for separate power runs to each camera or display. The hubs and extenders are available in different port counts to match the scale of the installation. The baluns and adapters address the need to interface between coaxial and twisted-pair segments. The connectors provide the termination points for coaxial runs. All products are specified with concrete electrical and mechanical parameters, allowing procurement specialists to verify compatibility before ordering. 3G Electric maintains inventory and provides quotation support for these SKUs, with the ability to ship to international destinations. The GEM by Triplett line is not a single product but a system of interoperable parts, and 3G Electric supplies the individual components as listed in its catalog.

Genuine
OEM Parts
Expert
Tech Support
1 Day
Quote Response
Worldwide
Origin
Worldwide Shipping
Air & sea freight
Datasheets on Request
Technical specs & drawings
1-Day Quote Response
Singapore-based team
Browse:
Show
Page 1 of 2
← Prev12Next →

About GEM BY TRIPLETT

GEM by Triplett is a line of video, audio, and data connectivity products built for professional installation environments. Triplett has a long history in test equipment and connectivity, and the GEM series focuses on passive and active components that carry analog and digital signals over coaxial and twisted-pair cabling. The product families include A-V hubs, extenders, baluns, adapters, and coaxial connectors. These components are used in surveillance, digital signage, commercial AV, and broadcast systems where signal integrity over distance is a primary concern. The hubs in the GEM line, such as the HDHUB-16PVP and HDHUB-8P, distribute video and power over Category 5e cabling through RJ45 female ports. They are available in 8-port and 16-port configurations, with some models including built-in TVS surge protection or lightning protection rated to Design Grade III. Baluns like the HDB-RJPT2 convert analog video from BNC male pigtails to screw terminals, allowing coaxial-based cameras to run over twisted-pair infrastructure. Adapters such as the BNC male to RJ45 female unit provide a direct interface between coaxial and twisted-pair cabling. The connector range includes male BNC connectors for RG-59 and RG-6 coaxial cables, with twist-on and compression termination styles, nickel-plated finishes, and 10-pack packaging. These connectors are used to terminate cables in video surveillance and RF signal applications. 3G Electric supplies the GEM by Triplett line as part of its industrial-equipment catalog. The product data available includes port counts, connector types, cable compatibility, surge protection ratings, and physical dimensions. This allows technical buyers to match components to existing cabling infrastructure and signal requirements. 3G Electric supports the line with logistics and quote-based ordering for global customers. The GEM by Triplett range is suited to projects that require reliable signal distribution over structured cabling, whether for new installations or upgrades to existing analog or high-definition systems. The components are designed to work together, forming a complete chain from camera or source to display or recording device. For plant engineers and maintenance managers, these products offer a way to extend or adapt video signals without replacing entire cabling systems. The use of Category 5e cabling for video and power distribution can simplify installation and reduce the need for separate power runs to each camera or display. The hubs and extenders are available in different port counts to match the scale of the installation. The baluns and adapters address the need to interface between coaxial and twisted-pair segments. The connectors provide the termination points for coaxial runs. All products are specified with concrete electrical and mechanical parameters, allowing procurement specialists to verify compatibility before ordering. 3G Electric maintains inventory and provides quotation support for these SKUs, with the ability to ship to international destinations. The GEM by Triplett line is not a single product but a system of interoperable parts, and 3G Electric supplies the individual components as listed in its catalog.

Common Applications

  • Video surveillance — GEM by Triplett HDHUB-16PVP 16-port video/power hub distributes signals and power to multiple cameras over Cat5e.
  • Digital signage — GEM by Triplett HDHUB-8P 8-port video hub extends video signals to multiple displays via RJ45 connections.
  • Commercial AV — GEM by Triplett HDB-RJPT2 balun converts analog video from BNC to twisted-pair for long cable runs.
  • Broadcast systems — GEM by Triplett 301-4TP twist-on BNC connectors terminate RG-59/RG-6 coaxial cables in video equipment.
  • Security camera upgrades — GEM by Triplett BNC male to RJ45 female adapter interfaces existing coaxial cameras with Cat5e infrastructure.
  • RF signal distribution — GEM by Triplett 302-N2CSTP compression BNC connectors provide reliable terminations for RG-59 coaxial cable.

Frequently asked questions

Common questions about GEM BY TRIPLETT from 3G Electric.

What is the difference between the GEM by Triplett HDHUB-16PVP and HDHUB-16P video hubs?

The HDHUB-16PVP is a 16-port video and power hub, meaning it distributes both video signals and power over Category 5e cabling to connected devices. The HDHUB-16P is a 16-port video hub that distributes video signals only, with built-in TVS surge protection. Both use RJ45 female connectors and support Category 5e cabling. The HDHUB-16PVP has an overall height of 7 7/8 inches, while the HDHUB-16P is 4 3/8 inches. The choice depends on whether remote power is required at the camera or display end.

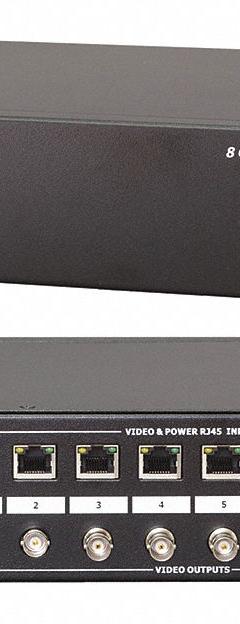

What is the maximum frequency supported by the GEM by Triplett HDHUB-8PVP?

The HDHUB-8PVP operates at a maximum frequency of 60 Hz. This specification indicates the device is intended for baseband video signals, not for RF modulation or high-frequency data. It is an 8-position video and power hub with RJ45 female connectors, supporting Category 5e cabling. The 60 Hz rating aligns with standard analog video or low-resolution digital video signals that fall within that bandwidth. For applications requiring higher frequencies, consult the specific signal requirements and verify compatibility with the hub's passband.

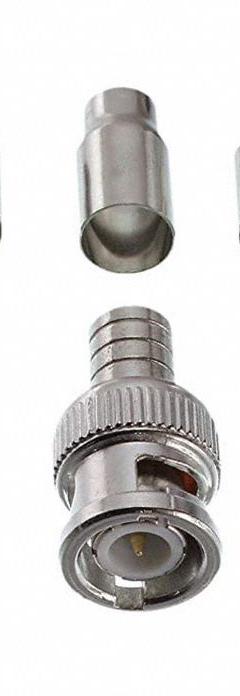

What termination methods are available for GEM by Triplett BNC coaxial connectors?

GEM by Triplett offers BNC male connectors with twist-on and compression termination methods. The twist-on model, part number 301-4TP, is designed for RG-59 or RG-6 coaxial cables and has a silver, nickel-plated finish. The compression model, part number 302-N2CSTP, is for RG-59 cable and also features a nickel-plated silver finish. Both are sold in packs of 10. Twist-on connectors are typically used where speed of installation is a priority, while compression connectors provide a more secure mechanical and electrical joint. Selection depends on cable type and installation practices.

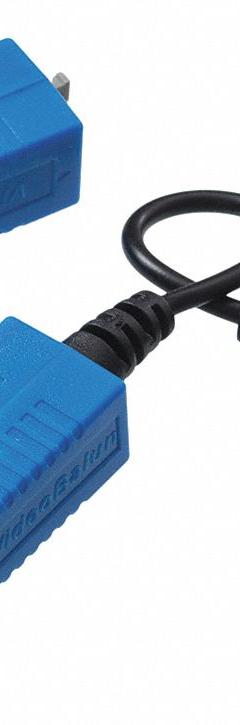

Can GEM by Triplett video baluns transmit signals over Category 5e cable?

Yes. The GEM by Triplett HDB-RJPT2 is an analog video balun with a BNC male pigtail to screw terminal interface. It is rated for Category 5e infrastructure and transmits analog video signals over twisted-pair cable. This allows coaxial-based cameras or video sources to be connected to a Category 5e cabling system. The balun is sold as a 2-pack and has a blue housing. It is a passive device, so signal distance and quality depend on the cable and the source signal strength. For best results, use with Category 5e or better cable and maintain proper impedance matching.

What is the purpose of the GEM by Triplett BNC male to RJ45 female adapter?

The GEM by Triplett BNC male to RJ45 female adapter converts a coaxial BNC connection to an RJ45 interface. This enables signal transmission between coaxial and twisted-pair cabling. It is suitable for data, audio, and video applications. The adapter has a black housing and is a single-piece unit. It is typically used to interface a coaxial video source or device with a Category 5e cabling run, or to adapt a BNC patch panel to RJ45 equipment. It is a passive adapter and does not perform signal conversion or amplification.

What surge protection features are included in GEM by Triplett video hubs?

The GEM by Triplett HDHUB-16P includes built-in TVS (transient voltage suppression) for surge protection. The HDHUB-8P features Lightning Protection Design Grade III. These features are intended to protect connected equipment from voltage spikes on the video or power lines. The HDHUB-16PVP and HDHUB-8PVP do not list surge protection in the available specifications. When selecting a hub, consider the level of surge protection required for the installation environment. TVS and lightning protection help reduce the risk of damage from electrical transients, but they do not replace proper grounding and surge protection at the system level.
