JAN FAN

JAN FAN is a manufacturer of industrial air-circulation and ventilation equipment. The product line is built around direct-drive and belt-free fan designs in pedestal, wall-mount, ceiling-mount, and mobile floor configurations. Blade diameters in the catalog range from 12 inches to 42 inches, with motor ratings typically at 1/4 hp for the smaller wall and pedestal units and higher-output direct-drive motors on the larger mobile floor models. Voltage options include 115 V AC single-phase and 120 V AC single-phase, with 50/60 Hz availability on selected wall-mount SKUs. Speed control is either two-speed or three-speed depending on model, and most units are non-oscillating, which suits fixed-position air circulation rather than spot cooling that requires a sweeping pattern. Construction is predominantly steel, and several models are finished in high-visibility yellow for placement in busy plant areas. The wall-mount and dock-fan variants ship with adapter kits that allow mounting to wall, ceiling, or floor structures, which reduces the number of distinct part numbers a maintenance department needs to stock. Accessories include fan shroud air filters with polyester media and hook-and-loop attachment, sized for 30 in x 30 in fan guards, rated to a maximum temperature of 150 °F and intended to capture dirt and dust from equipment cooling fans. 3G Electric supplies the JAN FAN line as individual SKUs and as configured assemblies where a fan, mount, and filter are specified together. The catalog currently lists 77 JAN FAN SKUs, covering pedestal fans, wall-mount fans, floor fans, dock fans, mounting brackets, pedestals, and replacement filter media. Because the audience for these products is plant engineers, maintenance managers, and procurement specialists, the specification data that matters most is available at the SKU level: blade diameter, motor horsepower, voltage, amperage draw, number of speeds, oscillation type, mount type, and material. Buyers specifying for a warehouse aisle, a loading dock, a fabrication bay, or a machine-cooling application can match airflow direction and mounting constraint to the model that fits without oversizing the motor. 3G Electric ships JAN FAN orders globally and can quote single units or multi-SKU packages that include the fan, the mounting adapter, and the shroud filter in one line item. For replacement and retrofit work, the MPN and SKU cross-reference is maintained so that a failed unit can be matched to a current catalog number. Where a facility standardizes on a blade diameter and mount type, the two-speed and three-speed variants within that size give maintenance planners a consistent spare-parts profile across multiple departments. The line does not include explosion-proof, corrosive-environment, or high-temperature process fans; it is intended for general industrial air movement and worker comfort in non-hazardous areas. Specifiers should confirm available circuit amperage against the nameplate amps shown on each SKU, particularly on the larger 36-inch and 42-inch mobile floor fans, which draw more than the 1/4 hp wall and pedestal units. Filter media should be checked against the fan guard diameter before ordering, since the shroud filters are sized to a specific guard dimension rather than a universal fit.

Genuine
OEM Parts
Expert
Tech Support
1 Day
Quote Response
Worldwide
Origin
Worldwide Shipping
Air & sea freight
Datasheets on Request
Technical specs & drawings
1-Day Quote Response
Singapore-based team
Browse:
Show
Page 1 of 8
← Prev123…8Next →

About JAN FAN

JAN FAN is a manufacturer of industrial air-circulation and ventilation equipment. The product line is built around direct-drive and belt-free fan designs in pedestal, wall-mount, ceiling-mount, and mobile floor configurations. Blade diameters in the catalog range from 12 inches to 42 inches, with motor ratings typically at 1/4 hp for the smaller wall and pedestal units and higher-output direct-drive motors on the larger mobile floor models. Voltage options include 115 V AC single-phase and 120 V AC single-phase, with 50/60 Hz availability on selected wall-mount SKUs. Speed control is either two-speed or three-speed depending on model, and most units are non-oscillating, which suits fixed-position air circulation rather than spot cooling that requires a sweeping pattern. Construction is predominantly steel, and several models are finished in high-visibility yellow for placement in busy plant areas. The wall-mount and dock-fan variants ship with adapter kits that allow mounting to wall, ceiling, or floor structures, which reduces the number of distinct part numbers a maintenance department needs to stock. Accessories include fan shroud air filters with polyester media and hook-and-loop attachment, sized for 30 in x 30 in fan guards, rated to a maximum temperature of 150 °F and intended to capture dirt and dust from equipment cooling fans. 3G Electric supplies the JAN FAN line as individual SKUs and as configured assemblies where a fan, mount, and filter are specified together. The catalog currently lists 77 JAN FAN SKUs, covering pedestal fans, wall-mount fans, floor fans, dock fans, mounting brackets, pedestals, and replacement filter media. Because the audience for these products is plant engineers, maintenance managers, and procurement specialists, the specification data that matters most is available at the SKU level: blade diameter, motor horsepower, voltage, amperage draw, number of speeds, oscillation type, mount type, and material. Buyers specifying for a warehouse aisle, a loading dock, a fabrication bay, or a machine-cooling application can match airflow direction and mounting constraint to the model that fits without oversizing the motor. 3G Electric ships JAN FAN orders globally and can quote single units or multi-SKU packages that include the fan, the mounting adapter, and the shroud filter in one line item. For replacement and retrofit work, the MPN and SKU cross-reference is maintained so that a failed unit can be matched to a current catalog number. Where a facility standardizes on a blade diameter and mount type, the two-speed and three-speed variants within that size give maintenance planners a consistent spare-parts profile across multiple departments. The line does not include explosion-proof, corrosive-environment, or high-temperature process fans; it is intended for general industrial air movement and worker comfort in non-hazardous areas. Specifiers should confirm available circuit amperage against the nameplate amps shown on each SKU, particularly on the larger 36-inch and 42-inch mobile floor fans, which draw more than the 1/4 hp wall and pedestal units. Filter media should be checked against the fan guard diameter before ordering, since the shroud filters are sized to a specific guard dimension rather than a universal fit.

Common Applications

  • Warehouse loading docks — JAN FAN 24-inch wall-mount dock fan with 1/4 hp motor and two-speed non-oscillating airflow

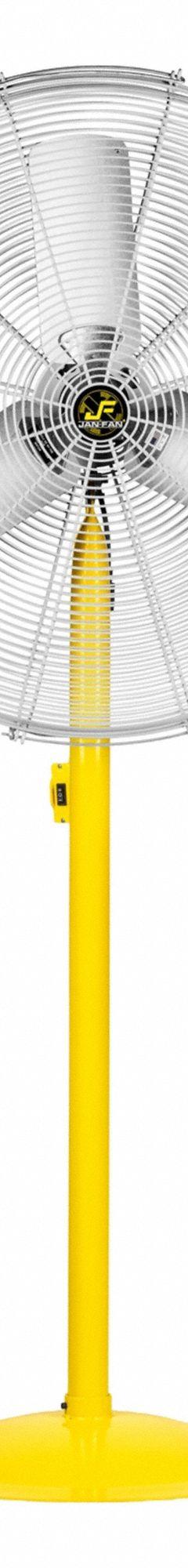

  • Manufacturing floor worker cooling — JAN FAN 24-inch pedestal circulating fan, 115 V, 1/4 hp, two-speed
  • Large open plant bays — JAN FAN 36-inch and 42-inch mobile direct-drive floor fans on 120 V AC
  • Machine and equipment cooling — JAN FAN fan shroud air filter, polyester media, 30 in x 30 in guard, 150 °F max
  • Wall or ceiling air circulation in fabrication shops — JAN FAN high-visibility wall-mount fan with adapter kit, 24-inch blade

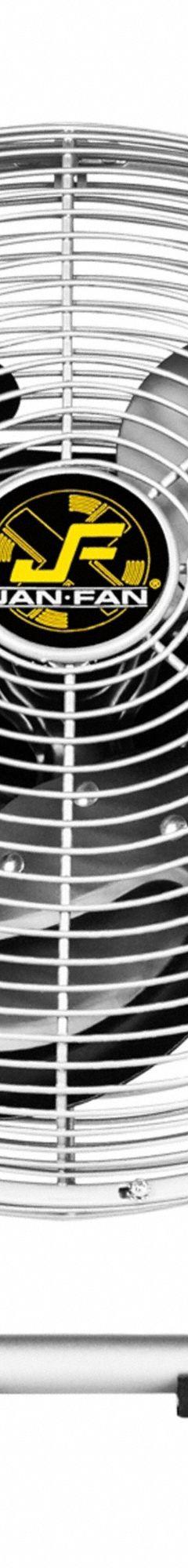

  • Portable spot cooling in work cells — JAN FAN 12-inch and 18-inch high-visibility floor fans, three-speed, 120 V AC

Frequently asked questions

Common questions about JAN FAN from 3G Electric.

What blade diameters and motor sizes are available in the JAN FAN industrial fan line?

JAN FAN industrial fans in the 3G Electric catalog cover blade diameters from 12 inches to 42 inches. The 12-inch, 18-inch, 24-inch, and 36-inch models appear in floor, pedestal, and wall-mount configurations. Motor ratings include 1/4 hp on the 24-inch pedestal and wall-mount units, with direct-drive motors on the larger mobile floor fans. Voltage is 115 V AC or 120 V AC single-phase depending on model, and speed control is two-speed or three-speed. Buyers should match blade diameter to the throw distance required and confirm circuit capacity against the nameplate amperage for the specific SKU.

Are JAN FAN wall-mount fans supplied with mounting hardware for ceiling or floor installation?

Selected JAN FAN wall-mount SKUs ship with an adapter kit that supports wall, ceiling, or floor mounting. This is noted in the product data for the high-visibility wall-mount fan, which lists a 24-inch blade diameter, 115 V operation, 1/4 hp motor, two speeds, and a non-oscillating design with the adapter kit included. The adapter approach lets a single fan head be repositioned between mount types without ordering a different fan assembly. Confirm the specific SKU includes the adapter kit before ordering, since not every wall-mount model in the line is packaged the same way.

What is the JAN FAN fan shroud air filter rated for, and how does it attach?

The JAN FAN fan shroud air filter uses polyester media and attaches with a hook-and-loop closure to a fan guard. It is sized for a 30 in x 30 in guard diameter and is rated to a maximum temperature of 150 °F. The media is intended to capture dirt and dust drawn through equipment cooling fans. Because the filter is sized to a specific guard dimension, verify the guard diameter on the fan it will be fitted to before ordering. The media color is white, which allows visual loading assessment during inspection rounds.

Which JAN FAN models are suitable for warehouse dock and loading bay ventilation?

The JAN FAN wall-mount warehouse dock fan is configured for loading bay and distribution center use. It has a 24-inch steel blade, a 1/4 hp motor, 115 V operation, two speeds, and a non-oscillating design. The non-oscillating configuration directs airflow at a fixed target rather than sweeping, which suits dock positions where the air stream should stay on a work area. For larger open bays, the 36-inch and 42-inch mobile floor fans provide higher-volume air movement and can be repositioned as dock activity shifts between doors.

What voltage and amperage do JAN FAN pedestal and floor fans draw?

The JAN FAN 24-inch pedestal circulating fan operates on single-phase 115 V AC with a 1/4 hp motor and draws 2.4 A at high speed and 1.2 A at low speed. The high-visibility floor fans in 12-inch, 18-inch, 36-inch, and 42-inch sizes operate on 120 V AC. Amperage varies with motor size and speed setting, so the nameplate value for the specific SKU should be used for circuit planning. On the larger 36-inch and 42-inch mobile floor fans, confirm the available branch circuit can carry the motor's running current before placing the unit.

Does 3G Electric stock replacement parts and accessories for JAN FAN equipment?

3G Electric lists 77 JAN FAN SKUs covering fans, mounting brackets, pedestals, and accessories such as the fan shroud air filter. Replacement and retrofit orders can be matched by manufacturer part number or by the 3G Electric SKU. Where a facility has standardized on a blade diameter and mount type, the two-speed and three-speed variants within that size allow a consistent spare-parts profile across departments. For configured assemblies, the fan, mount adapter, and filter can be quoted as a single line item.
