The POLARIS IPL250-3B multitap connector accommodates wire sizes from 6 AWG to 250 kcmil. It is a single-sided entry connector with an aluminum body, intended for splicing or tapping conductors in dry locations. The connector is identified by manufacturer part number IPL250-3B and is classified under UNSPSC 39121408. It is suitable for use in panel boards and junction boxes where multiple conductors need to be joined or tapped. The aluminum body provides a lightweight yet durable termination option for copper or aluminum conductors within the specified range. Installation requires standard tools and practices for mechanical connectors, and the single-sided entry design allows for easier access in confined spaces. This model is part of the POLARIS multitap connector family, which includes various port configurations and wire ranges.

The POLARIS CTH-111 C-tap compression connector uses die code KC12-250. It is a copper connector designed for splicing or tapping copper conductors, with a run size range of 1 AWG to 4/0 AWG and a tap size range of 8 AWG to 4/0 AWG. The connector is color-coded blue for easy identification. The die code indicates the required compression tool die for proper installation, ensuring a secure and low-resistance connection. This C-tap is typically used in electrical distribution systems where a branch connection is needed from a main conductor. The copper construction provides good conductivity and corrosion resistance. When installing, verify that the conductor sizes fall within the specified ranges and use the correct die to achieve the manufacturer's recommended compression. The CTH-111 is one of several C-tap connectors offered by POLARIS, each with specific size and die requirements.

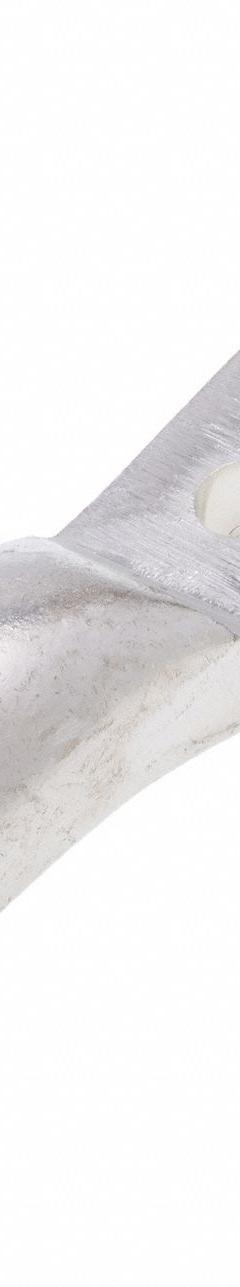

POLARIS two-hole compression lugs, including the L600N and AL500N-NT, feature a 1/2-inch stud size. The L600N is a copper lug for stranded conductors, while the AL500N-NT is an aluminum lug for 500 kcmil stranded wire. Both have a long barrel design and two holes for mounting to a stud or busbar. The 1/2-inch stud size is a common standard for medium-voltage and low-voltage power connections. These lugs are used in power distribution, switchgear, and panel building applications. The long barrel provides a larger contact area for the conductor, which can help with heat dissipation and mechanical stability. When selecting a lug, ensure the wire size and material match the lug's specifications. The AL500N-NT does not have an inspection hole, while other models may include one. Always use the recommended compression tool and die for the specific lug.

Yes, POLARIS offers compression lugs specifically designed for aluminum conductors. Examples include the AL500N-NT for 500 kcmil, AL300N for 300 kcmil, and AL750N-NT for 750 kcmil stranded aluminum wire. These lugs have aluminum bodies and long barrels with a 1/2-inch stud size. They are intended for terminating aluminum conductors in applications such as switchgear, panel boards, and heavy machinery. When using aluminum lugs, it is important to follow proper installation practices to prevent galvanic corrosion, such as using compatible materials and inhibitors where required. The AL series lugs do not have inspection holes, which is a design feature for certain installations. Always verify the conductor material and size against the lug specifications. POLARIS also manufactures copper lugs for copper conductors, such as the L600N, L250N, and L1000N, so it is essential to match the lug to the conductor material.

POLARIS multitap connectors are suitable for splicing or tapping conductors in dry locations, such as panel boards, junction boxes, and electrical distribution equipment. They are not rated for wet locations unless specifically noted. The connectors accommodate a range of wire sizes, for example, the IPL250-3B handles 6 AWG to 250 kcmil. They are used to distribute power from a main feed to multiple branch circuits or to join conductors in a through-connection. The aluminum body provides a durable and conductive path, and the single-sided entry design simplifies installation in tight spaces. These connectors are commonly found in industrial, commercial, and institutional electrical systems. When selecting a multitap connector, consider the number of ports, wire size range, and conductor material. POLARIS offers various configurations to meet different connection requirements. Always follow local electrical codes and manufacturer instructions for installation.

POLARIS connectors are manufactured in South Korea, according to the product information for the IPL250-3B multitap connector. However, country of origin may vary by part number and is subject to change. For specific sourcing or compliance requirements, verify the country of origin for each part number at the time of order. 3G Electric lists the country of origin as provided by the manufacturer, but it is advisable to confirm current information before finalizing procurement. The manufacturing location does not affect the product's specifications or performance, which are defined by the manufacturer's standards. POLARIS products are distributed globally, and 3G Electric supplies them to customers worldwide. For accurate trade compliance and documentation, always refer to the latest manufacturer data or contact 3G Electric for assistance.
