GRUNDFOS CR

Grundfos CR pumps typically have cast iron pump heads and bases with stainless steel impellers and diffusers, while CRN pumps are constructed entirely of stainless steel, including the pump head and base. This makes CRN suitable for applications where corrosion resistance is required, such as in water treatment or food processing. Both series share the same hydraulic design and modular stage configuration, allowing similar performance characteristics. The choice between CR and CRN depends on the liquid being pumped and the environment. CR pumps are commonly used for water supply and pressure boosting, while CRN pumps are preferred for more aggressive or high-purity liquids. 3G Electric supplies both variants and can provide material specifications for each.

Grundfos CR pumps can be connected using various flange sizes, depending on the pump model and flow rate. Common flange sizes include 2 in, 2.5 in, and 3 in NPT, with ANSI Class 150 ratings. For example, the CR 10 pump typically uses a 2 in flange set, while the CR 32 pump uses a 2.5 in flange set. Larger CR models may require 4 in or 6 in flanges. Flange sets include the flange body, bolts, and gaskets. 3G Electric stocks standard flange sets for many CR models, with cast iron bodies and aramid fiber/NBR gaskets. Custom flange sizes and materials can be sourced on request. Always verify the pump model and piping specifications before ordering.

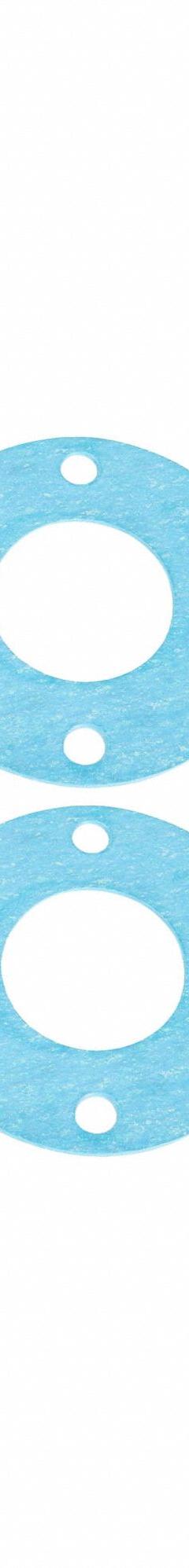

A Grundfos CR flange set typically includes the flange itself, the required number of bolts, and gaskets. For example, the 2 in flange set for CR 10 pumps includes 16 bolts and aramid fiber/NBR gaskets. The 3 in flange set includes 8 bolts and a gasket. The flange body is made of cast iron and is rated to ANSI Class 150. These sets are designed to connect the pump to standard piping systems. Some sets may include only the flange and gaskets, with bolts sold separately. 3G Electric provides complete sets as specified by Grundfos, ensuring compatibility with the pump. Always check the product description for exact contents.

Grundfos CR pumps are constructed with a combination of materials to balance durability and corrosion resistance. The pump head and base are typically cast iron, while the impellers, diffusers, and shaft are stainless steel. The chamber can be cast iron or stainless steel, depending on the model. Mechanical shaft seals are available in various materials, including carbon/ceramic and silicon carbide. O-rings and gaskets are made from materials such as EPDM, NBR, or aramid fiber. For aggressive liquids, CRN pumps use stainless steel for all wetted parts. The motor enclosure is typically IP55, with other ratings available. 3G Electric can provide material certificates for specific components upon request.

Yes, Grundfos CR pumps are commonly used for boiler feed applications due to their high-pressure capability and ability to handle hot water. However, standard CR pumps have temperature limits, typically up to 120°C for the standard version. For higher temperatures, special versions with high-temperature seals and bearings are required. The pump must be selected with the correct number of stages to match the boiler pressure. Additionally, the materials must be compatible with the boiler water chemistry. 3G Electric supplies CR pumps and can advise on the appropriate model and accessories for boiler feed systems. Always consult the technical documentation for temperature and pressure limits.

The maximum pressure of a Grundfos CR pump depends on the number of stages and the pump size. Standard CR pumps can achieve pressures up to 50 bar, with some models reaching higher pressures. The pressure is determined by the number of stages, with each stage adding approximately 1 to 3 bar, depending on the impeller diameter. The pump housing and flanges are rated for the maximum pressure. When selecting a CR pump, consider the required duty point and ensure the pump is not operated beyond its pressure rating. 3G Electric provides performance curves and technical data for each model to assist in selection.
