Smc 3G-OTH-161109 — Technical Specifications

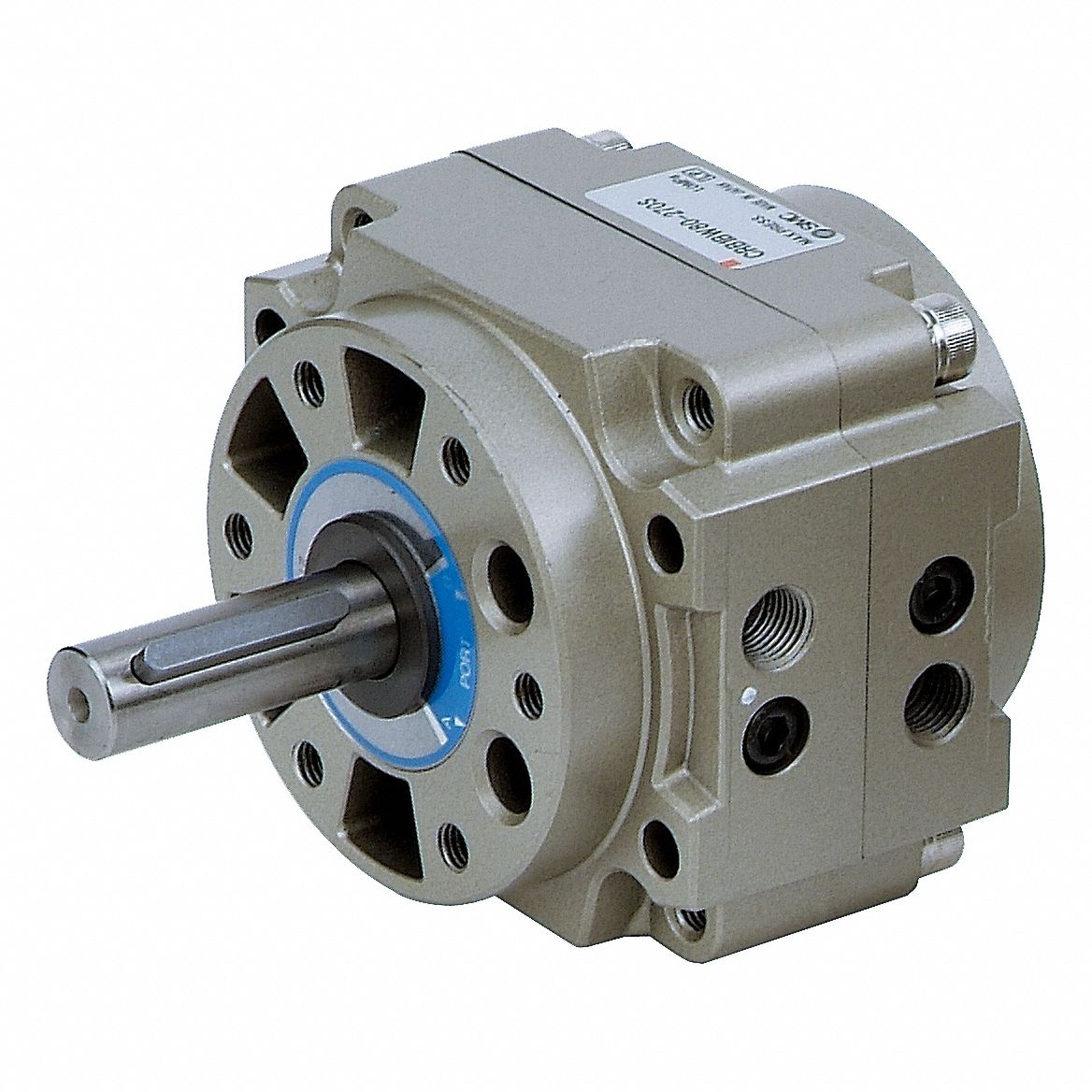

The SMC Rotary Actuator is a single vane actuator (MPN CDRB1BW100-180S) offering a 180° rotation angle and 75 N-m output torque with a 65 mm shaft length. It features a magnetic piston, basic design, metric dimensions, and side ported configuration.
