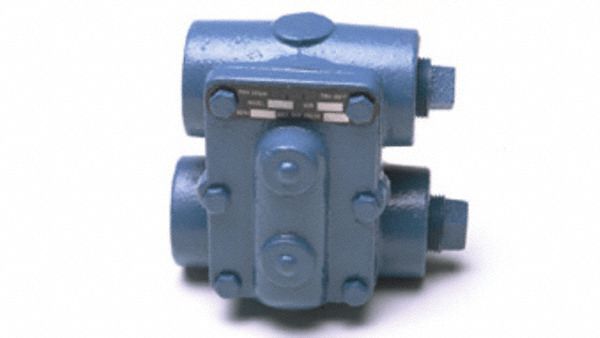

Nicholson 3G-OTH-70068 — Technical Specifications

Name: Nicholson 3G-OTH-70068 Steam Trap: Cast Iron, 2 in FNPT, 6,600 lb/hr, 125 psi Max., 450°F Max., C Pattern (MPN FTN-C5H9A). Key specifications — Brand: NICHOLSON; Installation Orientation: Horizontal; Float Material: Cast Iron; Manufacturer Series: FTN.
Brand: Nicholson

The NICHOLSON FTN-C5H9A is a Cast Iron C-Pattern Float & Thermostatic Steam Trap from the FTN series. It features a 2 in FNPT connection, a maximum capacity of 6,600 lb/hr, a maximum pressure of 125 psi, and a maximum temperature of 450°F. The float material is cast iron, and the trap is designed for horizontal installation.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	NICHOLSON
Float Material	Cast Iron
Manufacturer Series	FTN
Installation Orientation	Horizontal
Manufacturer Part Number	FTN-C5H9A
