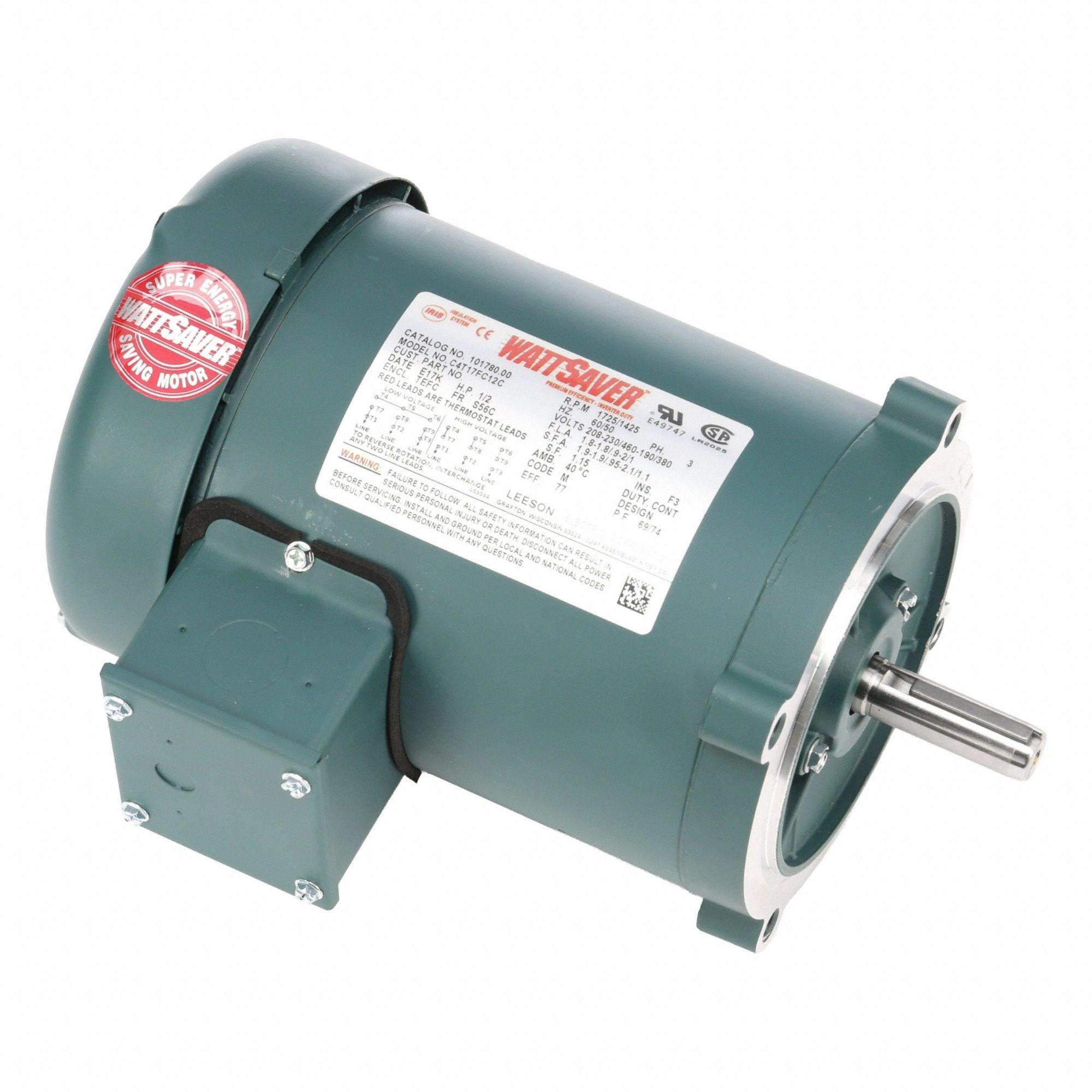

Leeson 3G-OTH-60896 — Technical Specifications

Name: Leeson 3G-OTH-60896 LEESON General Purpose: C-Face Mount, Totally Enclosed Fan Cooled, 1/2 hp, 230/460V AC, 1,725 RPM (MPN 101780.00). Key specifications — Brand: LEESON; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 1.8/0.9 A; Nameplate RPM @ 60 Hz: 1,725 RPM; Motor Enclosure: TEFC.
Brand: Leeson

The LEESON General Purpose: C-Face Mount is a C-Face 3-Phase General Purpose AC Motor with a TEFC enclosure. It operates at 1,725 RPM at 60 Hz and is rated for 230/460V AC with a full load current of 1.8/0.9 A. This motor is identified by manufacturer part number 101780.00.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	LEESON
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	1,725 RPM
Manufacturer Part Number	101780.00
Full Load Current @ 60 Hz	1.8/0.9 A
Nameplate Voltage @ 60 Hz	230/460V AC
