Harting 3G-OTH-11032 — Technical Specifications

Name: Harting 3G-OTH-11032 HARTING M12 Circular Connector: D Coded, 4 Pin, M12 Male Thread, IP65/IP67, HARAX Quick-Connect (MPN 21032811405). Key specifications — Connector Body Type: Pin; Coding: D; Brand: HARTING; Voltage Rating: 50V; Thread Size: M12; Mounting Style: Male Thread; IP Rating: IP67; Housing Material: Zinc Die-Cast.
Brand: Harting

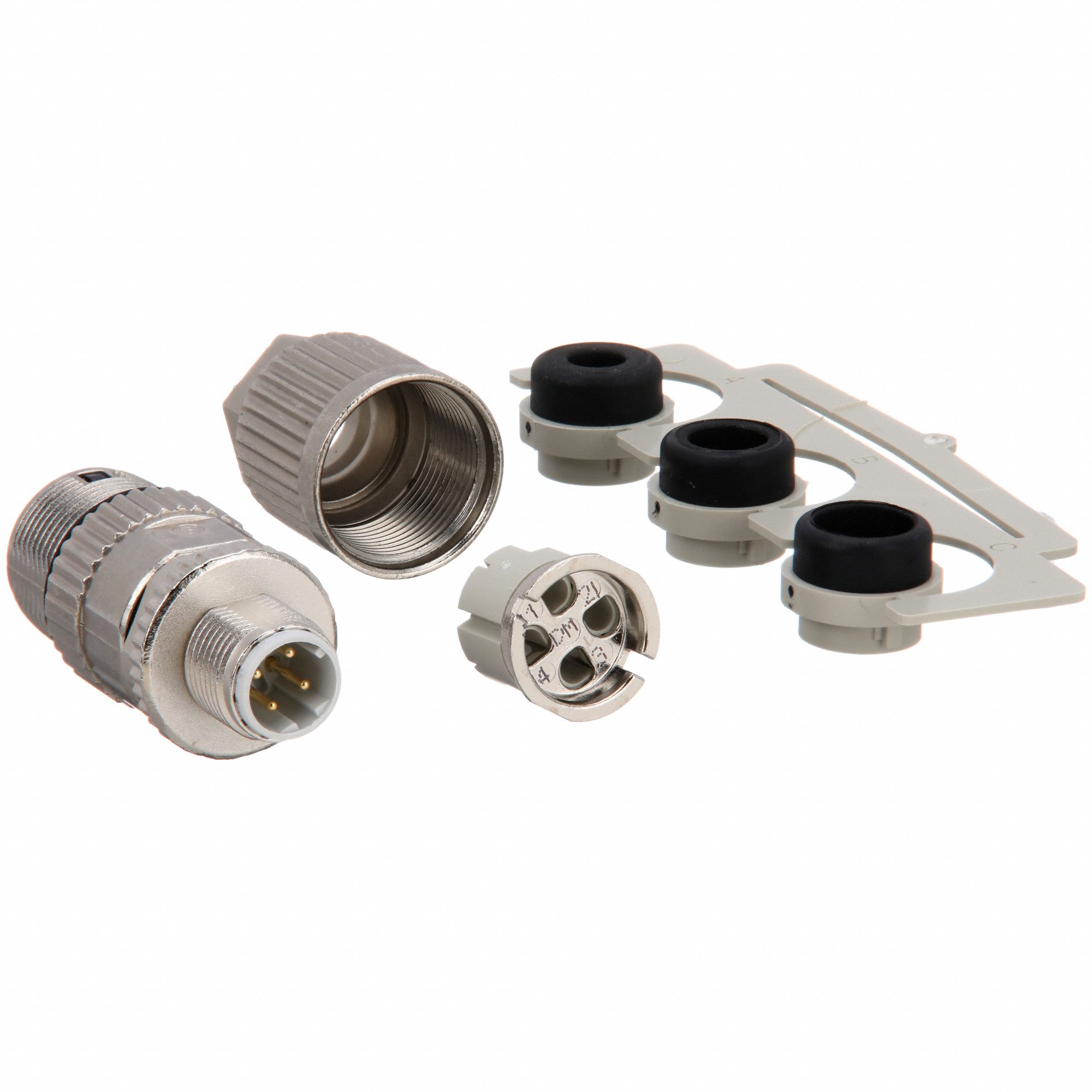

The HARTING M12 Circular Connector: D Coded (SKU 793YH1, MPN 21032811405) is a field-wireable industrial M12 circular connector with a pin connector body type and D coding for 100 Mbps Cat 5e Industrial Ethernet and Profinet. It features a M12 male thread mounting style, HARAX quick-connect wiring, and a zinc die-cast housing with an IP67 rating. The connector is rated for 50V and supports 100 Mbit Ethernet applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	HARTING
Coding	D
IP Rating	IP67
Application	100 Mbit Ethernet
Thread Size	M12
Wiring Type	HARAX Quick-Connect
Mounting Style	Male Thread
Voltage Rating	50V
Connection Type	Cable Connector
Housing Material	Zinc Die-Cast
Connector Body Type	Pin
Connector Application	D-Coded for 100 Mbps Cat 5e Industrial Ethernet & Profinet
Connector Orientation	Straight
Manufacturer Part Number	21032811405
