Dwyer 3G-OTH-89908 — Technical Specifications

Name: Dwyer 3G-OTH-89908 DWYER Liquid Flow Switch: Paddle, 1/2 in/1/4 in/2 in/3/8 in For Pipe Size, Brass, 1 1/4 in NPT, NPT (MPN V6EPB-B-S-4-B). Key specifications — Brand: DWYER; Contact Rating (DC): 24 A (Inductive) @ 30V (CSA, ATEX and IECEx Models); For Pipe Size: 1/2 in; Hazardous Location Rating: Class I, Div 1 and 2, Group A, B, C, D; Contact Rating (AC): 5 A @ 125/250V.
Brand: Dwyer

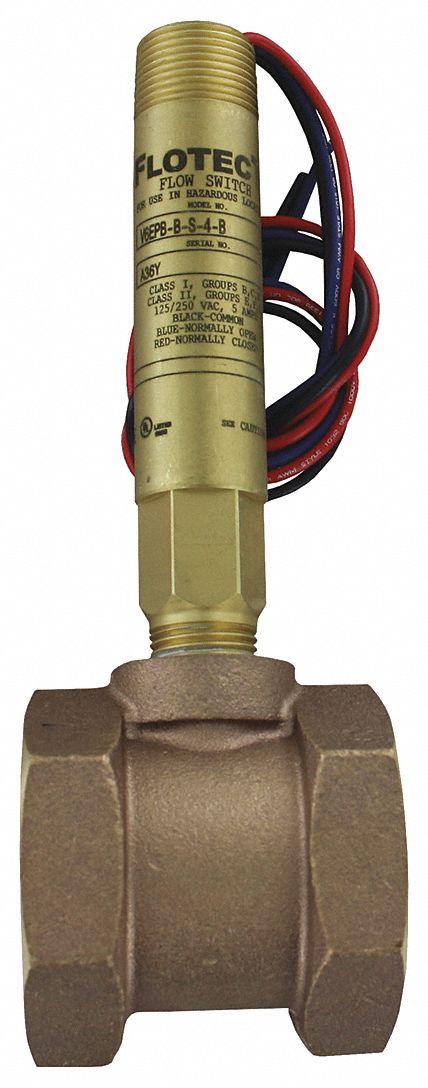

The DWYER V6EPB-B-S-4-B is an inline hazardous-location paddle liquid flow switch designed for pipe sizes of 1/2 inch. It features a brass body with a 1 1/4 inch NPT connection and carries a hazardous location rating of Class I, Div 1 and 2, Group A, B, C, D. The switch offers a contact rating of 5 A @ 125/250V AC and 24 A (Inductive) @ 30V DC for CSA, ATEX, and IECEx models.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	DWYER
For Pipe Size	1/2 in
Contact Rating (AC)	5 A @ 125/250V
Contact Rating (DC)	24 A (Inductive) @ 30V (CSA, ATEX and IECEx Models)
Manufacturer Part Number	V6EPB-B-S-4-B
Hazardous Location Rating	Class I, Div 1 and 2, Group A, B, C, D
