Dayton 3G-OTH-38198 — Technical Specifications

Name: Dayton 3G-OTH-38198 DAYTON Solid State Relay: DIN-Rail & Surface Mounted, 25 A Max Output Current, SCR, AC Output (MPN 1EJK3). Key specifications — Brand: DAYTON; Current Type: AC; Electrical Connection: Screw; Finger Safe: Yes; Maximum Output Current without Heat Sink: 25 A; Mounting Style: DIN Rail & Surface; Output Voltage: 24 to 280V AC; Switch Configuration: Form A.
Brand: Dayton

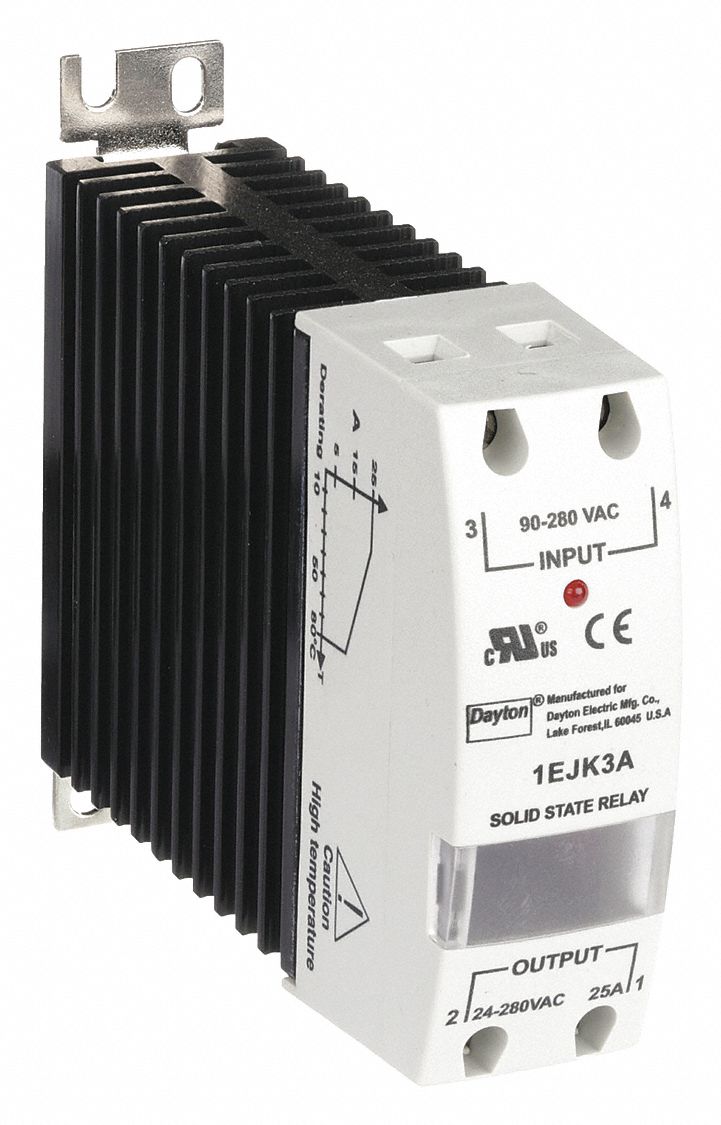

The DAYTON Solid State Relay is a combination DIN-rail and surface-mounted relay with an AC output. It features a Form A switch configuration, an output voltage range of 24 to 280V AC, and a maximum output current without a heat sink of 25 A. The relay is finger safe and uses screw-type electrical connections.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	DAYTON
Finger Safe	Yes
Current Type	AC
Mounting Style	DIN Rail & Surface
Output Voltage	24 to 280V AC
Switch Configuration	Form A
Voltage/Current Type	AC Output
Electrical Connection	Screw
Manufacturer Part Number	1EJK3
Maximum Output Current Without Heat Sink	25 A
