Crydom 3G-OTH-40400 — Technical Specifications

Name: Crydom 3G-OTH-40400 CRYDOM Solid State Relay: Surface Mounted, 25 A Max Output Current, SCR, AC Output (MPN D53TP25C-10). Key specifications — Brand: CRYDOM; Current Type: DC; Electrical Connection: Saddle Clamp; Screw; Finger Safe: Yes; Input Current: 35 mA; Maximum Output Current without Heat Sink: Not Recommended; Mounting Style: Panel.
Brand: Crydom

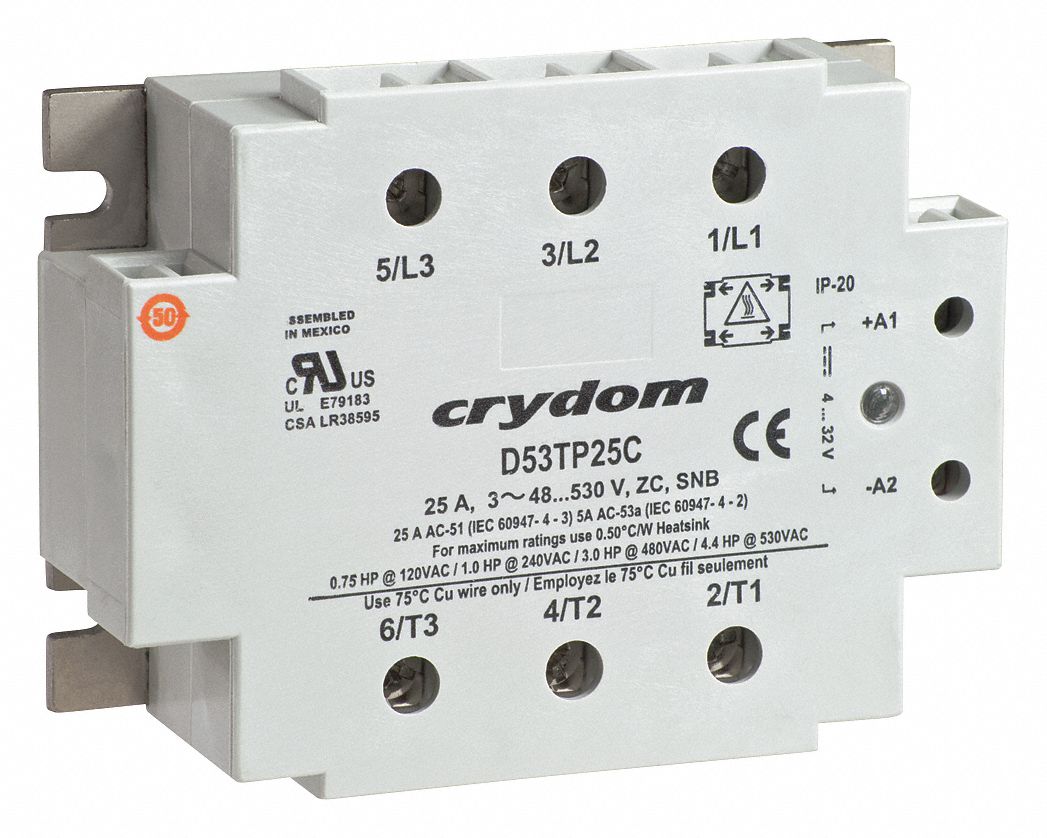

The CRYDOM D53TP25C-10 is a panel-mounted solid-state relay with a surface-mounted form factor, featuring a DC input current of 35 mA and an AC output voltage range of 48 to 530V AC. It uses a Form A (SPST-NO) switch configuration with SCR output, and includes a saddle-clamp electrical connection. This relay is finger-safe and has a maximum output current of 25 A, though operation without a heat sink is not recommended.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CRYDOM
Finger Safe	Yes
Current Type	DC
Input Current	35 mA
Mounting Style	Panel
Output Voltage	48 to 530V AC
Switch Configuration	Form A
Voltage/Current Type	AC Output
Electrical Connection	Saddle Clamp
Manufacturer Part Number	D53TP25C-10
Maximum Output Current Without Heat Sink	Not Recommended
