Chainflex 3G-OTH-45792 — Technical Specifications

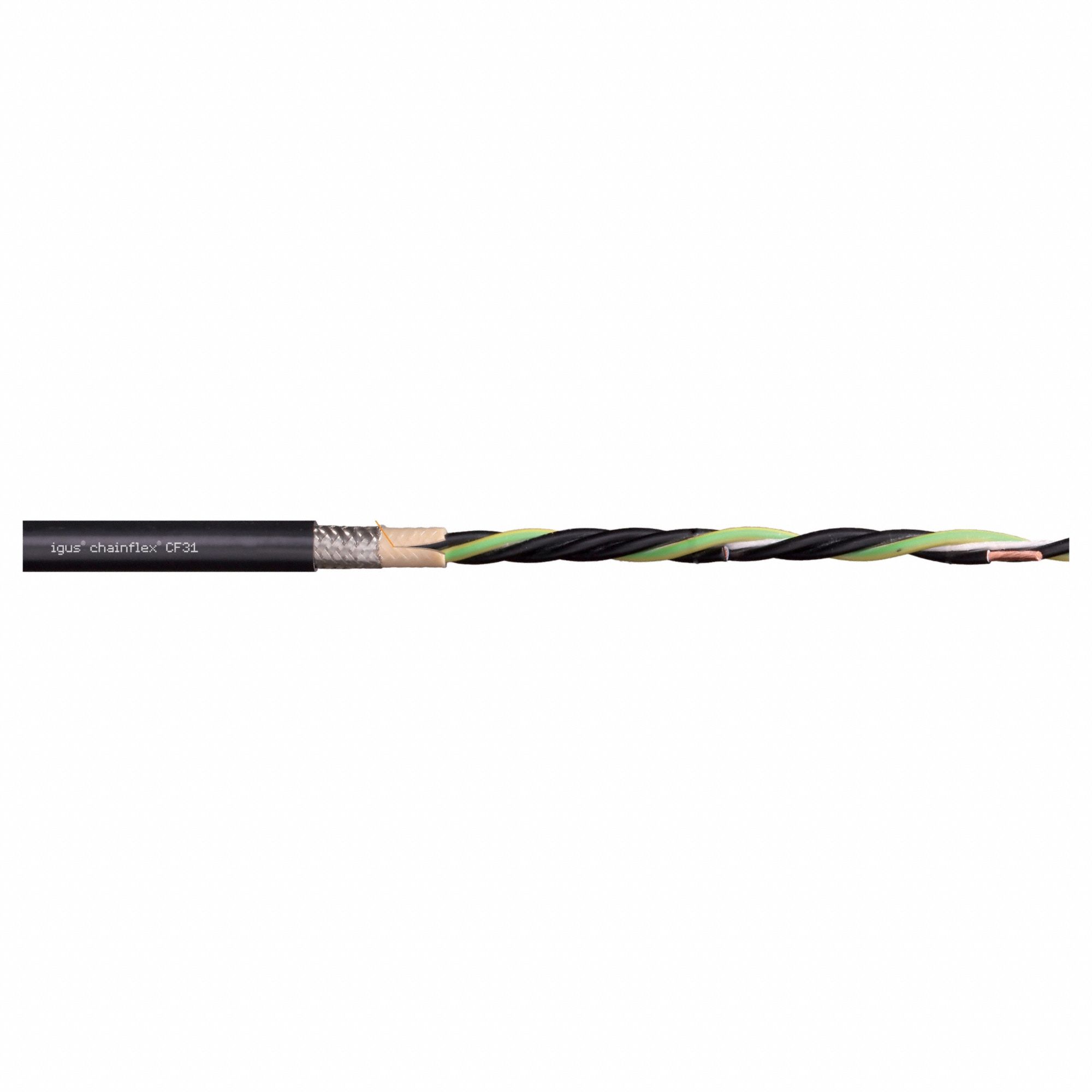

The CHAINFLEX Motor Cable: 4 AWG (SKU 801LZ7, MPN CF31-250-04) is a continuous flexing power cable for VFDs from the Chainflex CF31 series. It features 4 AWG, 4 conductors, copper single conductors, a PVC jacket, and a 1,000 V rating, with an included ground. The cable is UV/sunlight resistant, meets FT-1 standards, and has minimum bend radius factors of 4 x OD (fixed), 6 x OD (flexible), and 7.5 x OD (e-chain).
