Chainflex 3G-OTH-49690 — Technical Specifications

Name: Chainflex 3G-OTH-49690 CHAINFLEX Measuring System Cable: (3) Shielded Twisted Pr 24 AWG (0.25), Green, PUR Jacket (MPN CF113-016-D). Key specifications — Conductor Grouping: (3) Shielded Twisted Pair 24 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Brand: CHAINFLEX.
Brand: Chainflex

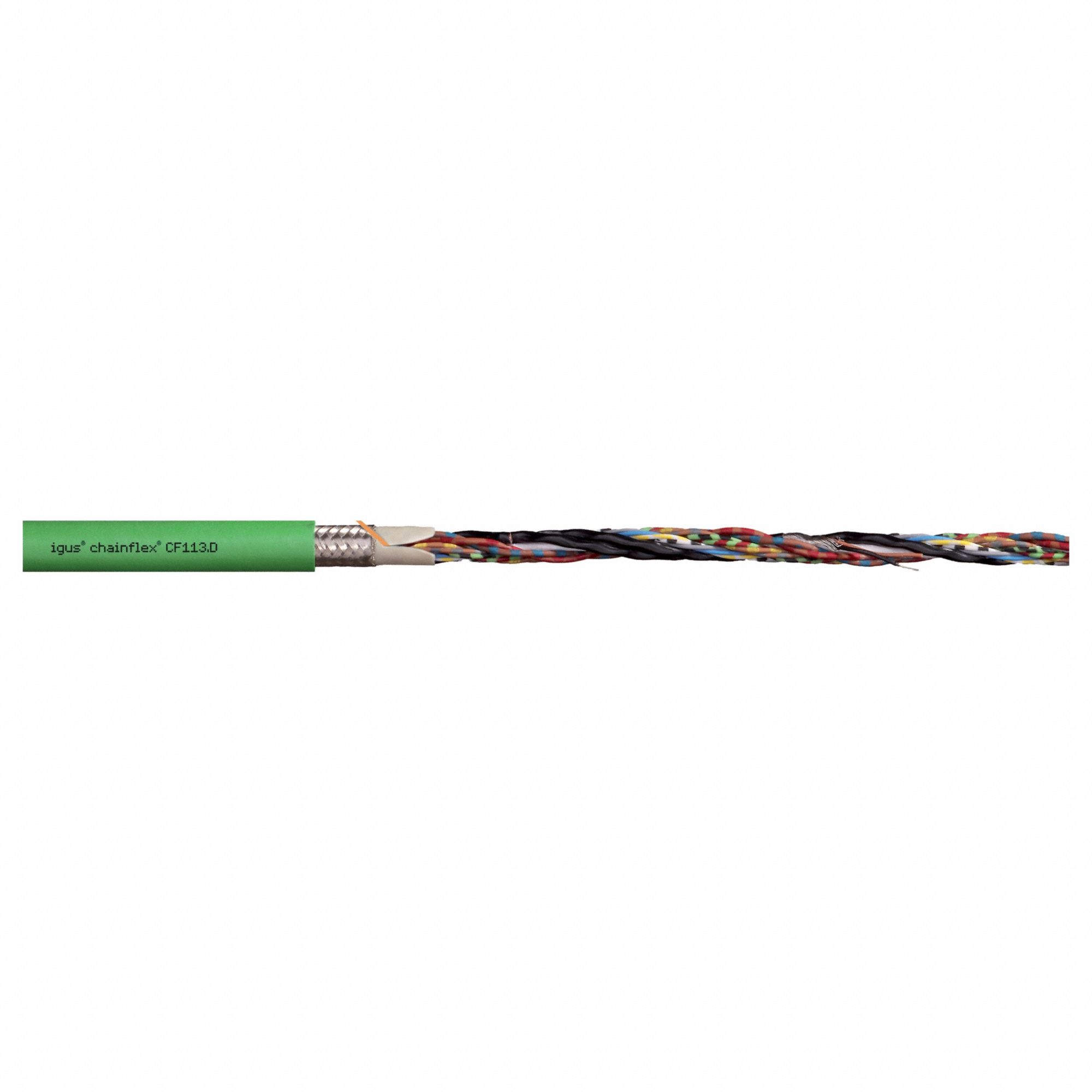

The CHAINFLEX Measuring System Cable (SKU 801L36, MPN CF113-016-D) is a servo motor feedback cable featuring (3) shielded twisted pair 24 AWG conductors with a green PUR jacket. It is designed for flexible and fixed installations, with a minimum bend radius factor of 4 x OD for fixed and 6 x OD for flexible applications. This cable is sold by the foot and does not include a ground conductor.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(3) Shielded Twisted Pair 24 AWG
Manufacturer Part Number	CF113-016-D
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
