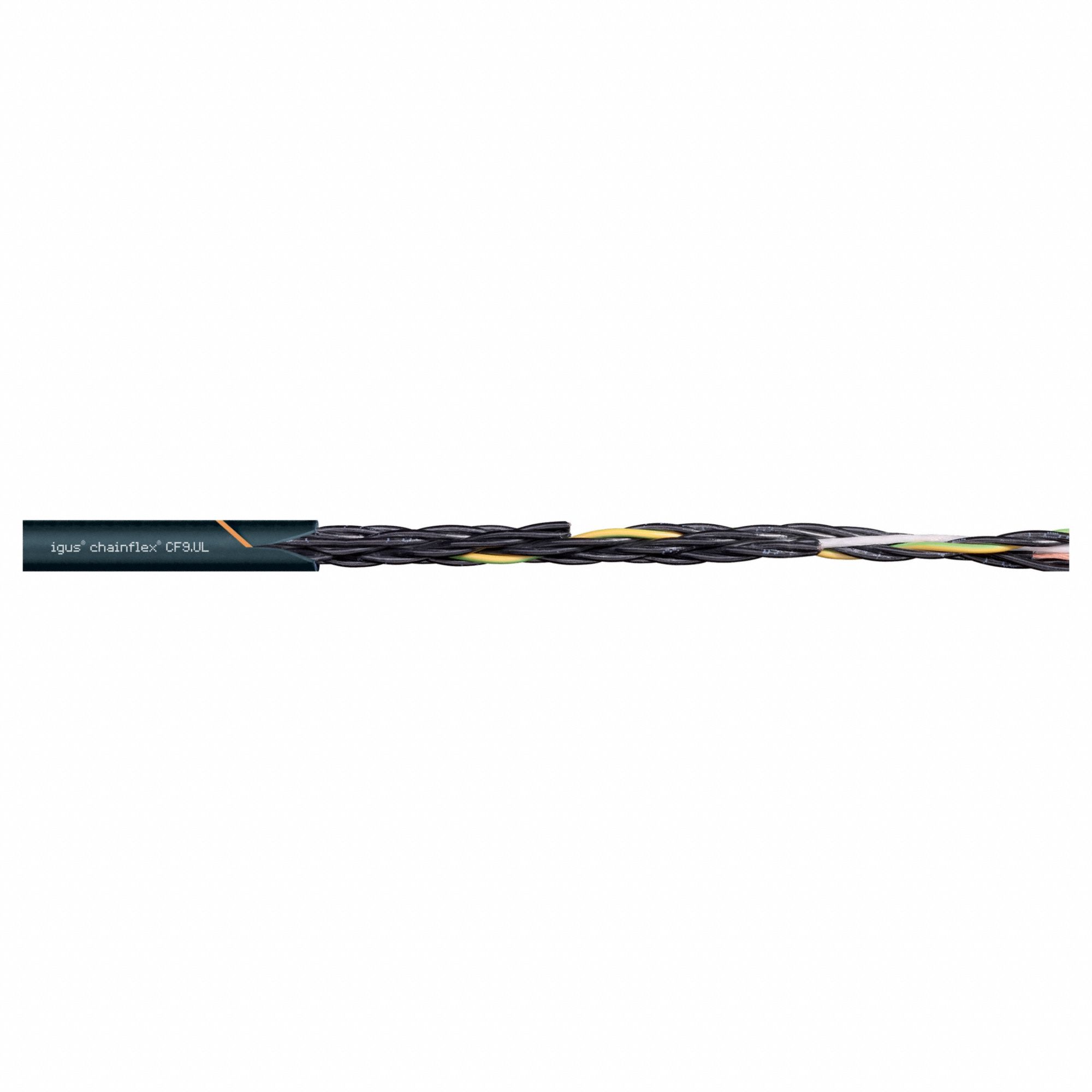

Chainflex 3G-OTH-50615 — Technical Specifications

Name: Chainflex 3G-OTH-50615 CHAINFLEX Control Cable: 22 AWG, 5 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF9-UL-0305INI). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: No; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Flame Retardant; Standards: CE 2014/35/EU.
Brand: Chainflex

CHAINFLEX Control Cable: 22 AWG, 5 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF9-UL-0305INI). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: No; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Flame Retardant; Standards: CE 2014/35/EU.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	CE 2014/35/EU
Cable Series	CF9-UL
Product Type	Control Cable
Includes Ground	No
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF9-UL-0305INI
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
