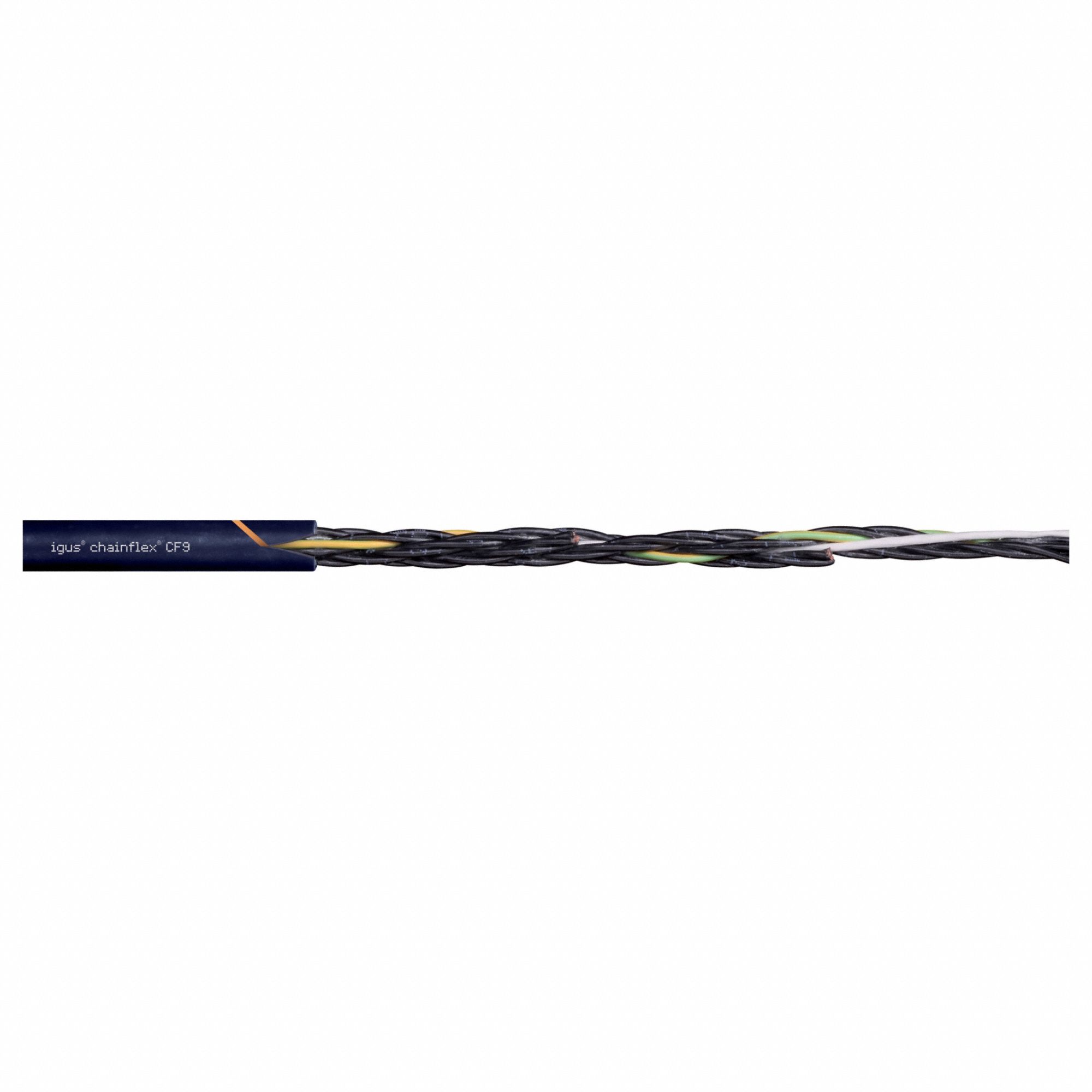

Chainflex 3G-OTH-54208 — Technical Specifications

Name: Chainflex 3G-OTH-54208 CHAINFLEX Control Cable: 10 AWG, 4 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF9-60-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Flame Retardant; Standards: IEC 60332-1-2.
Brand: Chainflex

The CHAINFLEX Control Cable: 10 AWG is a continuous flexing control cable from the Chainflex CF9 series. This 4-conductor, single-conductor-configuration cable features a copper conductor with a black-and-white-numbered color code, includes a ground, and is rated 300 V with a TPR jacket. It meets IEC 60332-1-2 flame-retardant standards and has minimum bend radius factors of 3 x OD (fixed), 4 x OD (flexible), and 5 x OD (e-chain).

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	IEC 60332-1-2
Cable Series	CF9
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF9-60-04
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
