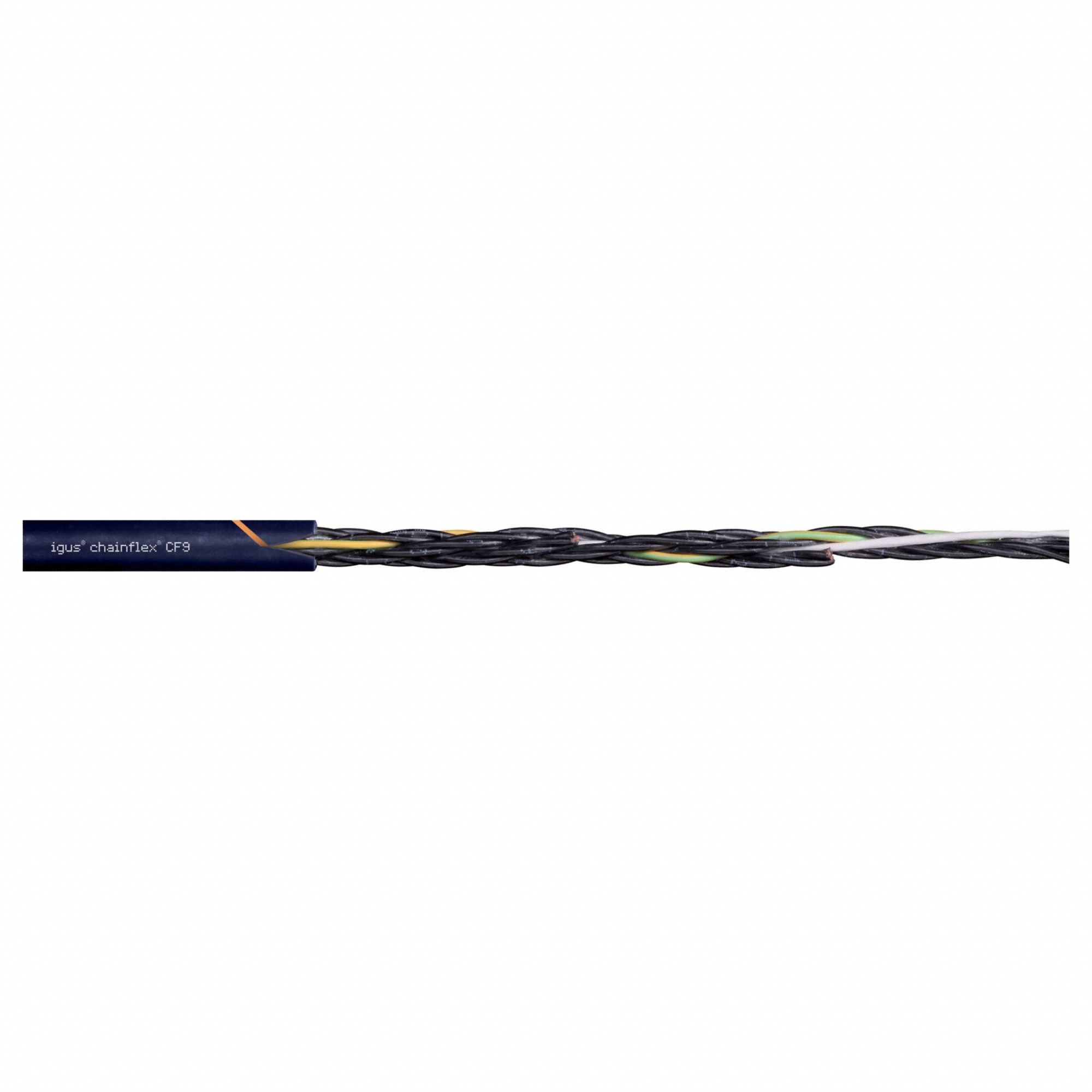

Chainflex 3G-OTH-54189 — Technical Specifications

Name: Chainflex 3G-OTH-54189 CHAINFLEX Control Cable: 14 AWG, 18 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF9-25-18). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Coolant Resistant; Standards: DNV 61 935-14 HH.
Brand: Chainflex

The CHAINFLEX Control Cable: 14 AWG is a continuous flexing control cable from the Chainflex CF9 series, featuring 18 conductors of single copper wire with black and white numbering, a TPR jacket, and a 300 V rating. It includes a ground conductor, is coolant resistant, and meets DNV 61 935-14 HH standards. Minimum bend radius factors are 3 x OD for fixed installation, 4 x OD for flexible use, and 5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	DNV 61 935-14 HH
Cable Series	CF9
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Coolant Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF9-25-18
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
