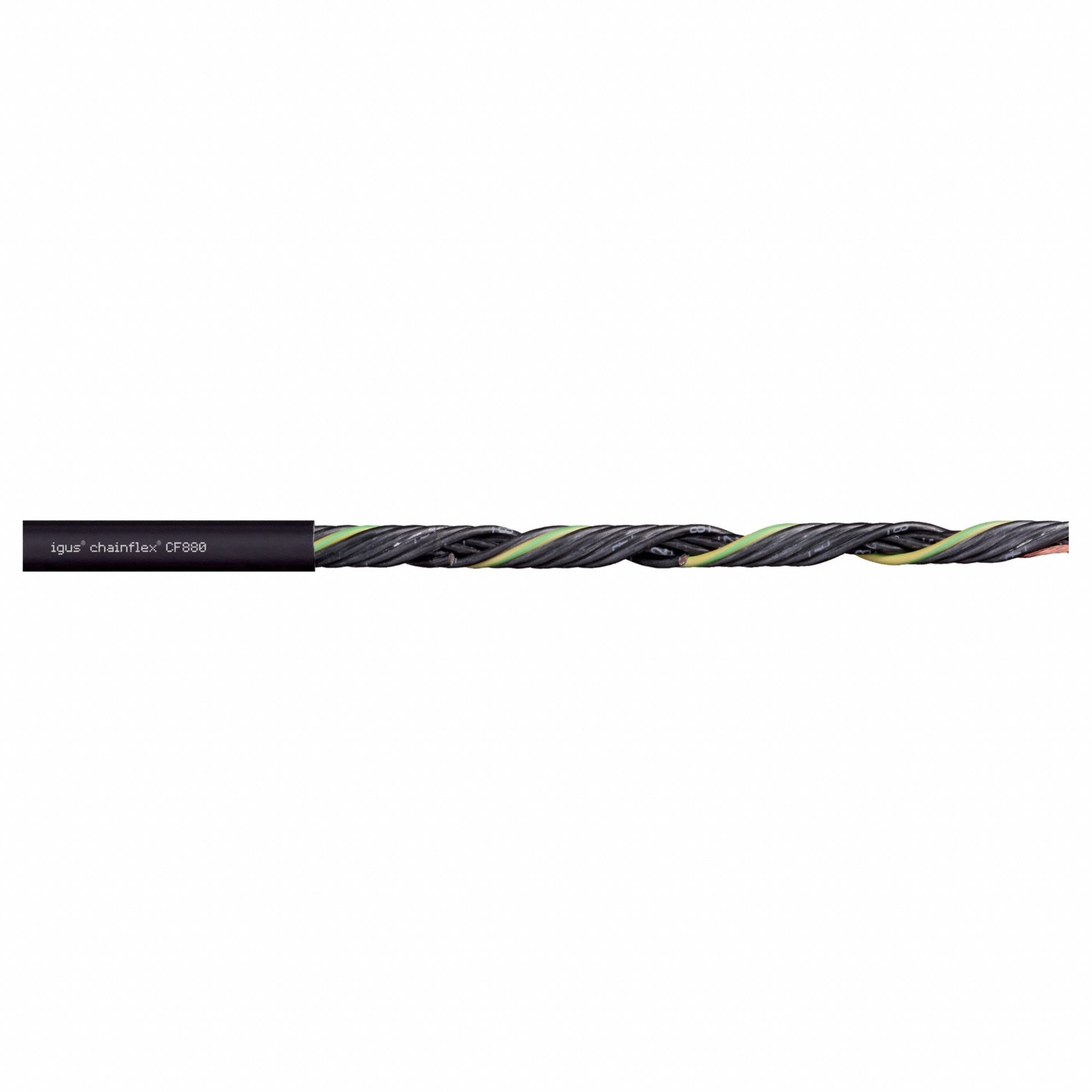

Chainflex 3G-OTH-50671 — Technical Specifications

Name: Chainflex 3G-OTH-50671 CHAINFLEX Control Cable: 16 AWG, 12 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF880-15-12). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 12.5 x OD; Resistance Properties: Flame Retardant; Standards: FT-1.
Brand: Chainflex

CHAINFLEX Control Cable: 16 AWG, 12 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF880-15-12). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 12.5 x OD; Resistance Properties: Flame Retardant; Standards: FT-1.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	FT-1
Cable Series	CF880
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF880-15-12
Minimum Bend Radius Factor - Fixed	7 x OD
Minimum Bend Radius Factor - E-Chain	12.5 x OD
Minimum Bend Radius Factor - Flexible	10 x OD
