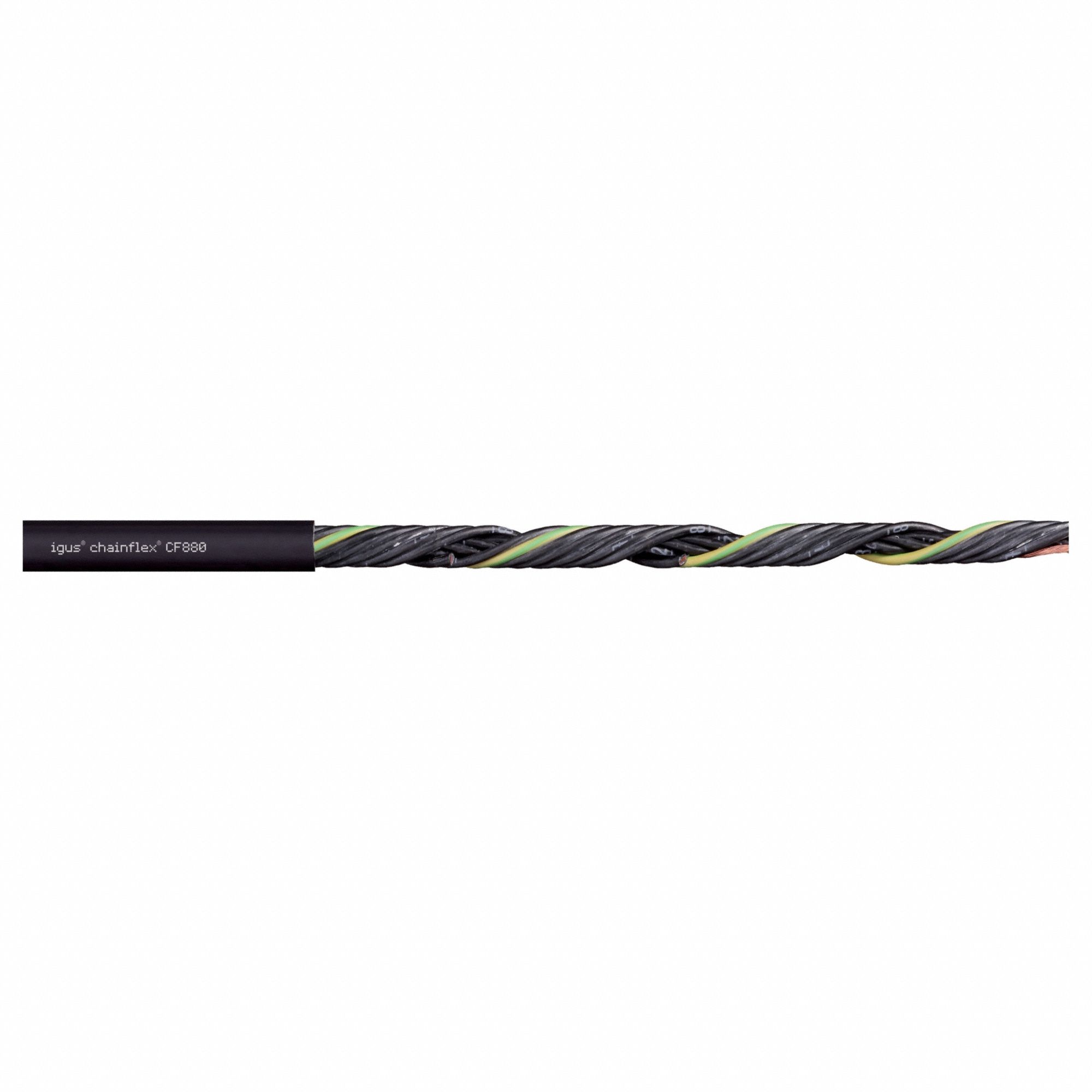

Chainflex 3G-OTH-50937 — Technical Specifications

Name: Chainflex 3G-OTH-50937 CHAINFLEX Control Cable: 18 AWG, 5 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF880-07-05). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 12.5 x OD; Resistance Properties: Flame Retardant; Standards: 2011/65/EU (RoHS Compliant-II).
Brand: Chainflex

CHAINFLEX Control Cable: 18 AWG, 5 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF880-07-05). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 12.5 x OD; Resistance Properties: Flame Retardant; Standards: 2011/65/EU (RoHS Compliant-II).

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	2011/65/EU (RoHS Compliant-II)
Cable Series	CF880
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF880-07-05
Minimum Bend Radius Factor - Fixed	7 x OD
Minimum Bend Radius Factor - E-Chain	12.5 x OD
Minimum Bend Radius Factor - Flexible	10 x OD
