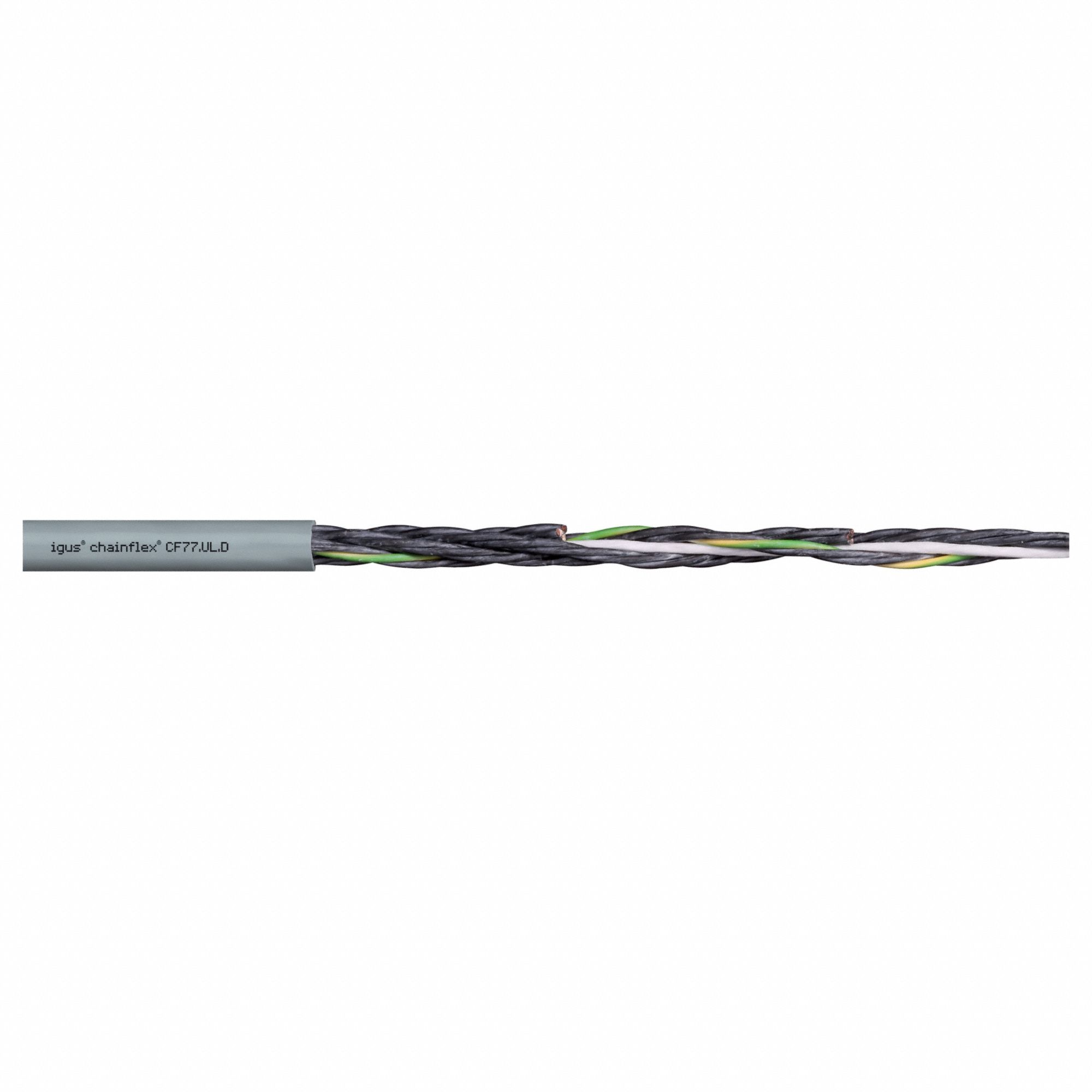

Chainflex 3G-OTH-45805 — Technical Specifications

Name: Chainflex 3G-OTH-45805 CHAINFLEX Control Cable: 22 AWG, 5 Conductors, Order by the Foot, PUR Jacket, 1,000 V (MPN CF77-UL-35INIG). Key specifications — Conductor Material: Copper; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Coolant Resistant; Standards: VW-1; Product Type: Control Cable; Series: Chainflex.
Brand: Chainflex

CHAINFLEX Control Cable: 22 AWG, 5 Conductors, Order by the Foot, PUR Jacket, 1,000 V (MPN CF77-UL-35INIG). Key specifications — Conductor Material: Copper; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Coolant Resistant; Standards: VW-1; Product Type: Control Cable; Series: Chainflex.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	VW-1
Cable Series	CF77-UL
Product Type	Control Cable
Conductor Material	Copper
Resistance Properties	Coolant Resistant
Manufacturer Part Number	CF77-UL-35INIG
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
