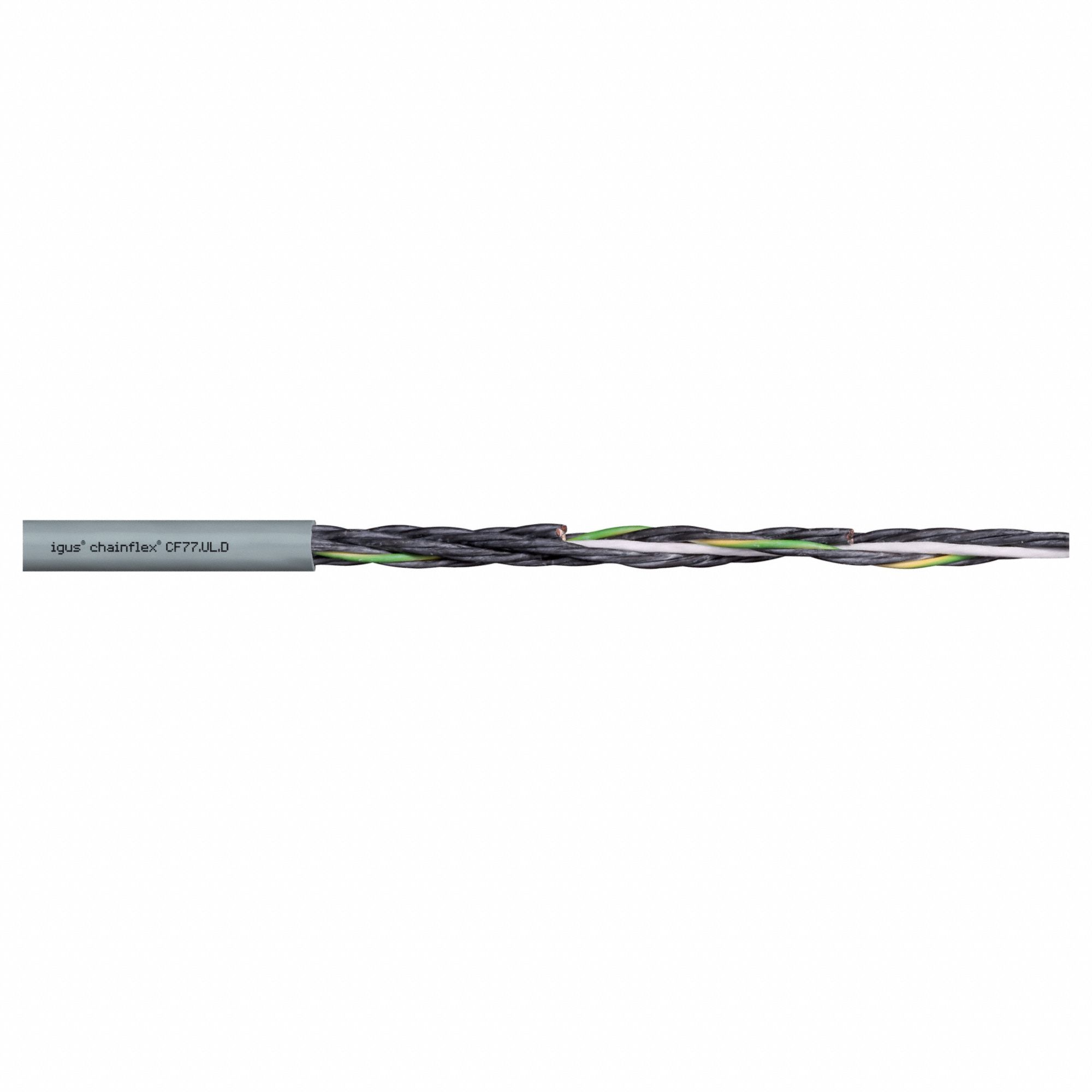

Chainflex 3G-OTH-51133 — Technical Specifications

Name: Chainflex 3G-OTH-51133 CHAINFLEX Control Cable: 17 AWG, 4 Conductors, Order by the Foot, PUR Jacket, 1,000 V (MPN CF77-UL-10-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Flame Retardant; Standards: CF77.UL.05.12.D (Outer Jacket Material).
Brand: Chainflex

CHAINFLEX Control Cable: 17 AWG, 4 Conductors, Order by the Foot, PUR Jacket, 1,000 V (MPN CF77-UL-10-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Flame Retardant; Standards: CF77.UL.05.12.D (Outer Jacket Material).

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	CF77.UL.05.12.D (Outer Jacket Material)
Cable Series	CF77-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF77-UL-10-04
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
