Chainflex 3G-OTH-50817 — Technical Specifications

Name: Chainflex 3G-OTH-50817 CHAINFLEX Control Cable: 17 AWG, 3 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF130-10-03). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Flame Retardant; Standards: CTP C-DE.PB49.B.00416.
Brand: Chainflex

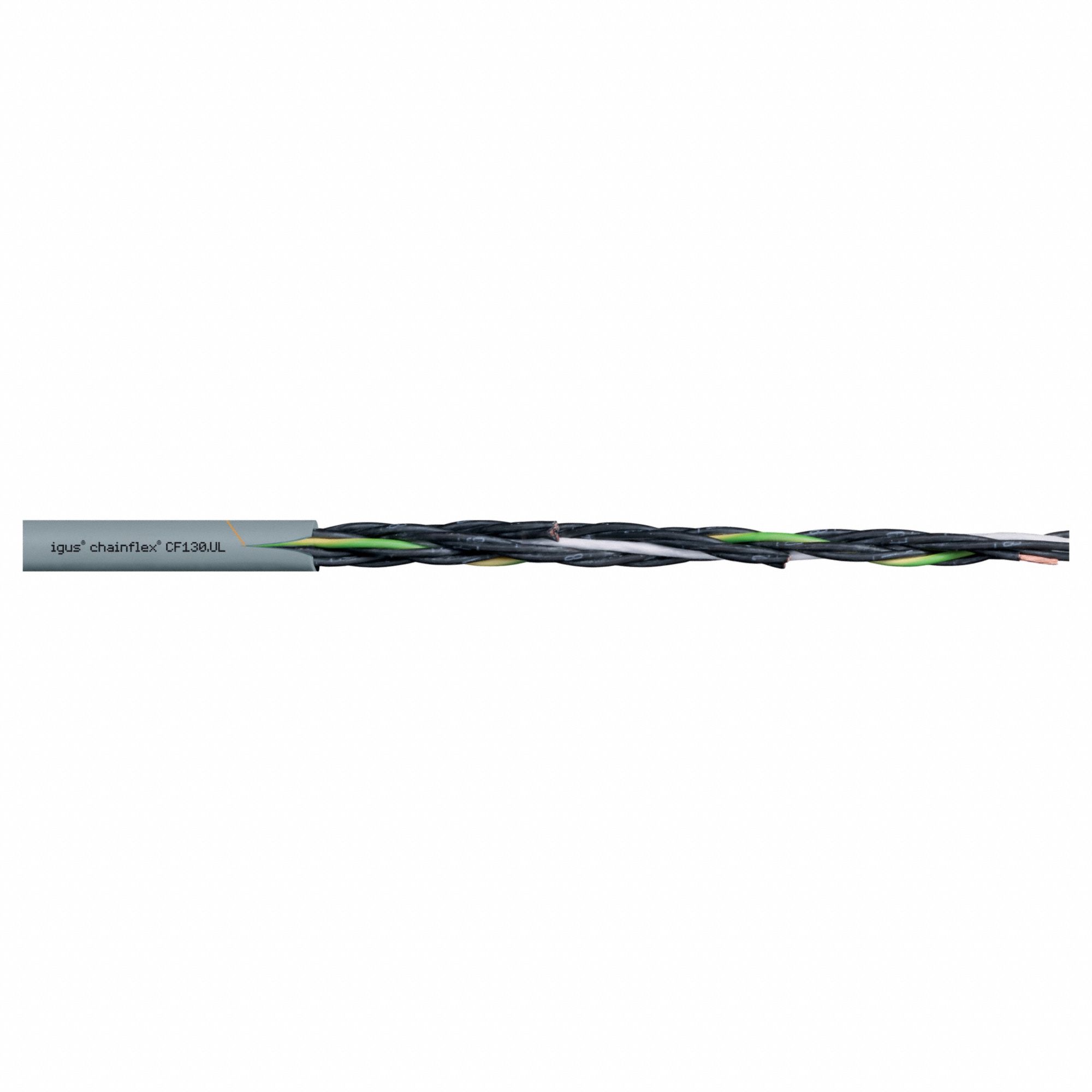

The CHAINFLEX Control Cable: 17 AWG is a continuous flexing control cable from the Chainflex series, model CF130-UL (MPN CF130-10-03). It features 3 copper conductors with a single conductor configuration, includes a ground, and has a PVC jacket rated for 300 V. The cable offers minimum bend radius factors of 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications, with flame retardant resistance properties.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	CTP C-DE.PB49.B.00416
Cable Series	CF130-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF130-10-03
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
