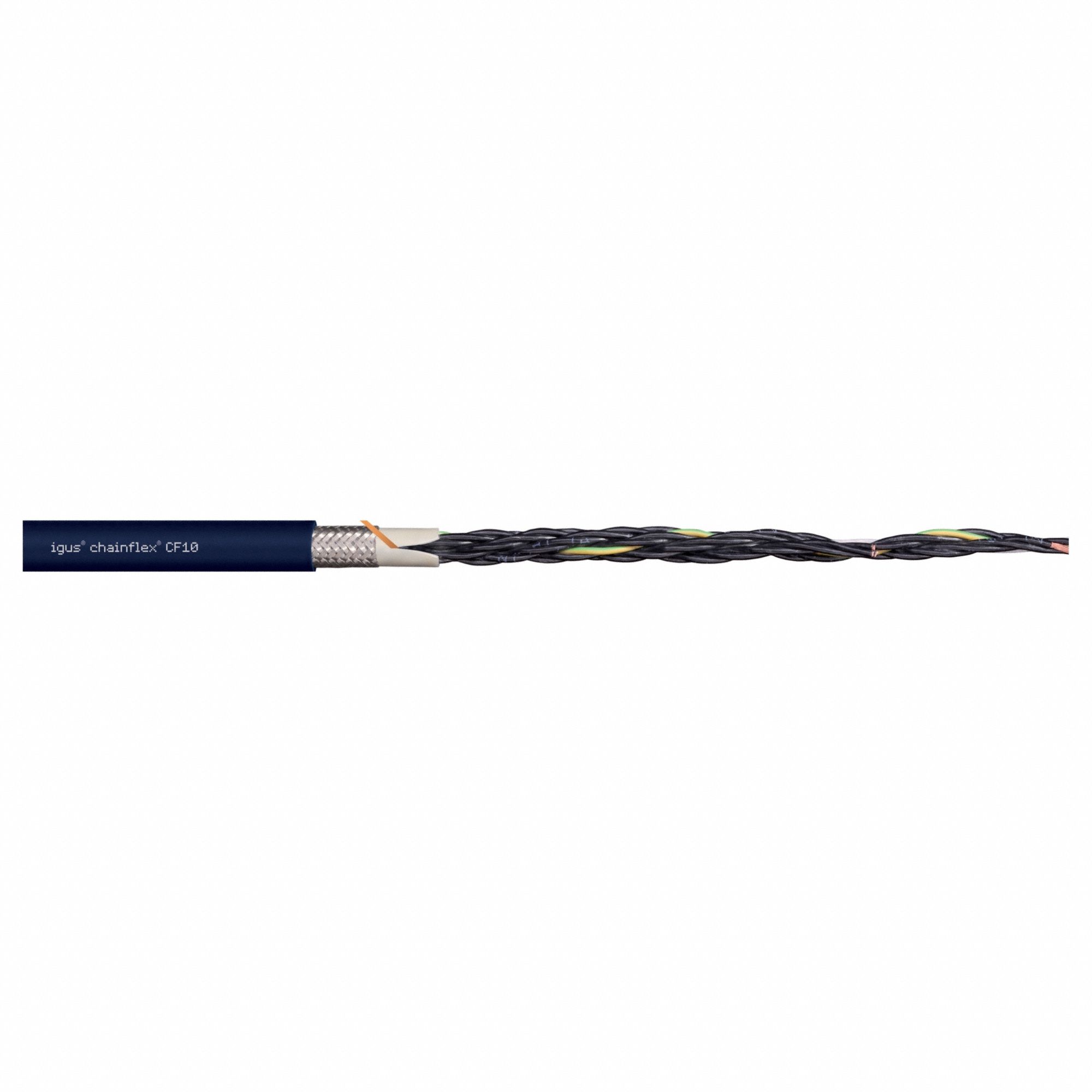

Chainflex 3G-OTH-51583 — Technical Specifications

Name: Chainflex 3G-OTH-51583 CHAINFLEX Control Cable: 17 AWG, 5 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF10-10-05). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Antimicrobial; Standards: PV 3.10.7 Status 1992.
Brand: Chainflex

CHAINFLEX Control Cable: 17 AWG, 5 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF10-10-05). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Antimicrobial; Standards: PV 3.10.7 Status 1992.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	PV 3.10.7 Status 1992
Cable Series	CF10
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Antimicrobial
Conductor Configuration	Single
Manufacturer Part Number	CF10-10-05
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
