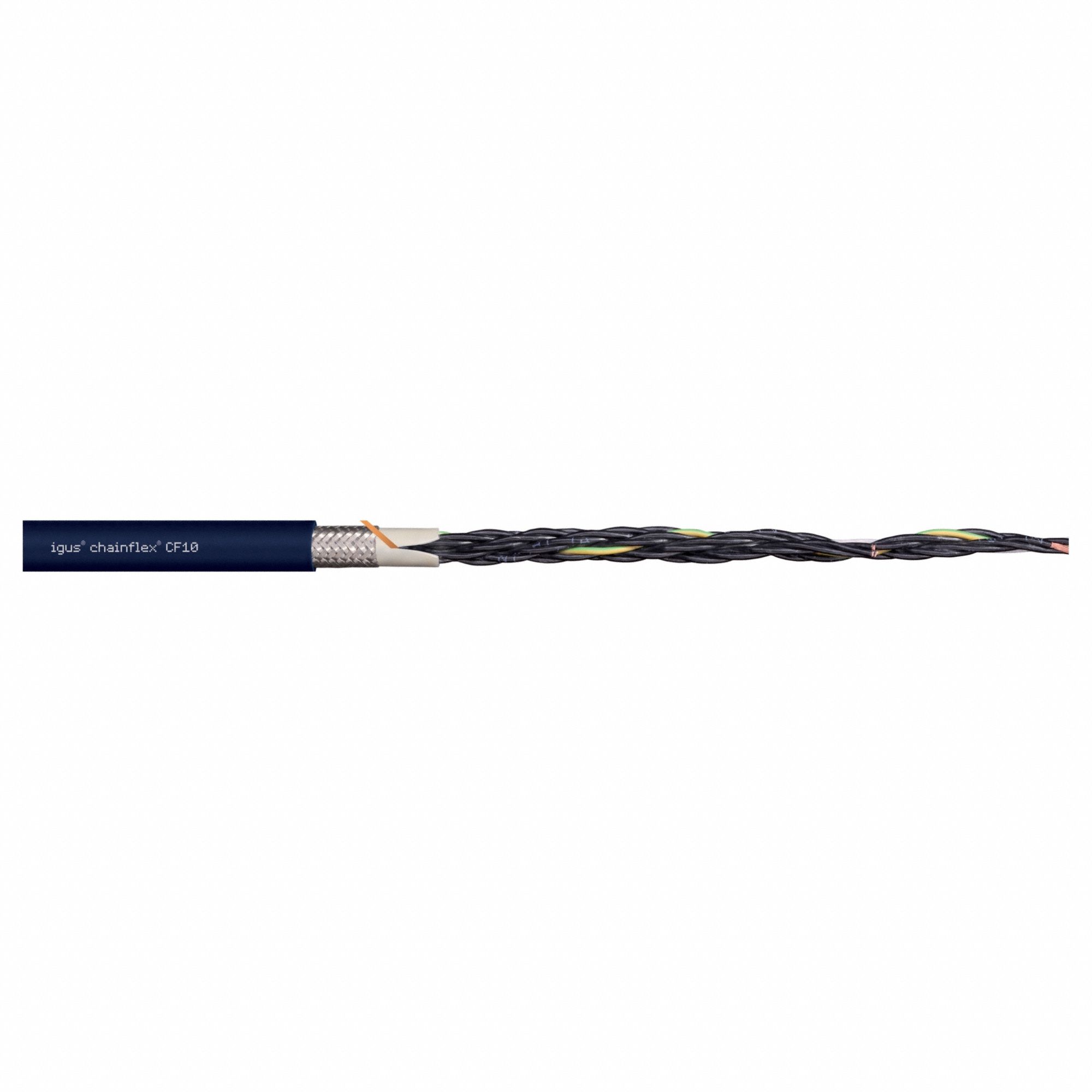

Chainflex 3G-OTH-46670 — Technical Specifications

Name: Chainflex 3G-OTH-46670 CHAINFLEX Control Cable: 20 AWG, 18 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF10-05-18). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: No; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Bending Resistance; Standards: FT-1.
Brand: Chainflex

CHAINFLEX Control Cable: 20 AWG, 18 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF10-05-18). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: No; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Bending Resistance; Standards: FT-1.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	FT-1
Cable Series	CF10
Product Type	Control Cable
Includes Ground	No
Conductor Material	Copper
Resistance Properties	Bending Resistance
Conductor Configuration	Single
Manufacturer Part Number	CF10-05-18
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
