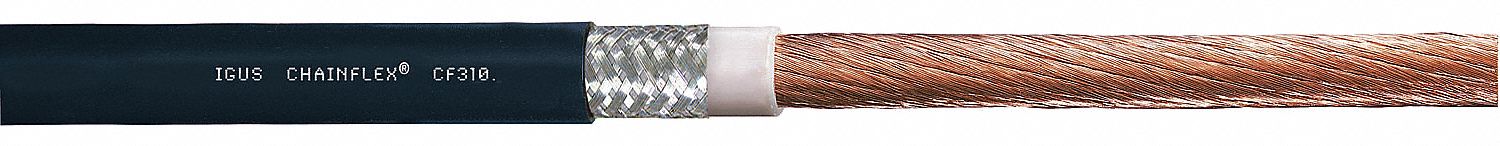

Chainflex 3G-OTH-45861 — Technical Specifications

Name: Chainflex 3G-OTH-45861 CHAINFLEX Motor Cable: 1 AWG, 1 Conductors, Order by the Foot, TPR Jacket, 1,000 V (MPN CF310-500-01-1). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Notch Resistance; Standards: CE.
Brand: Chainflex

CHAINFLEX Motor Cable: 1 AWG, 1 Conductors, Order by the Foot, TPR Jacket, 1,000 V (MPN CF310-500-01-1). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Notch Resistance; Standards: CE.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	CE
Cable Series	CF310-UL
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Notch Resistance
Conductor Configuration	Single
Manufacturer Part Number	CF310-500-01-1
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
