Chainflex 3G-OTH-46871 — Technical Specifications

Name: Chainflex 3G-OTH-46871 CHAINFLEX Motor Cable: 350 kcmil, 1 Conductors, Order by the Foot, TPR Jacket, 1,000 V (MPN CF300-1850-01-1). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: cRUus.
Brand: Chainflex

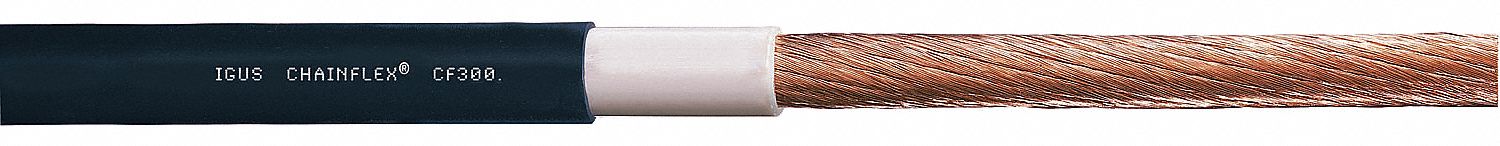

The CHAINFLEX Motor Cable: 350 kcmil (SKU 24C152, MPN CF300-1850-01-1) is a single-conductor continuous flexing power cable from the Chainflex CF300-UL series. It features a copper conductor, TPR jacket, includes a ground, and is rated at 1,000 V with cRUus standards. The cable is oil and grease resistant, with minimum bend radius factors of 4 x OD for fixed, 6 x OD for flexible, and 7.5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	cRUus
Cable Series	CF300-UL
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF300-1850-01-1
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
