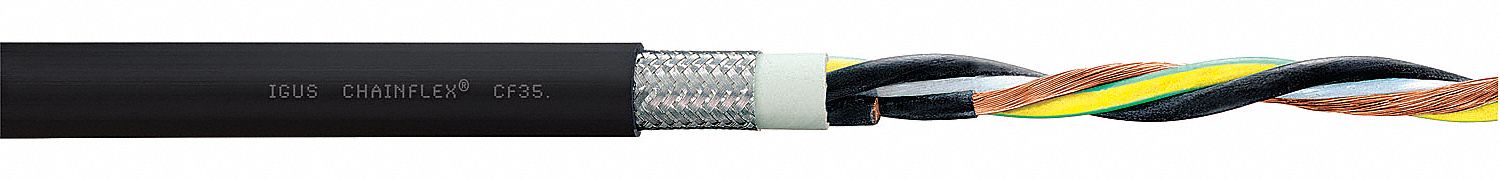

Chainflex 3G-OTH-45506 — Technical Specifications

Name: Chainflex 3G-OTH-45506 CHAINFLEX Motor Cable: 10 AWG, 4 Conductors, Order by the Foot, TPR Jacket, 1,000 V (MPN CF35-60-04-1). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Notch Resistance; Standards: CE.
Brand: Chainflex

The CHAINFLEX Motor Cable: 10 AWG (SKU 24C140, MPN CF35-60-04-1) is a continuous flexing power cable for VFDs from the Chainflex series. This CE-certified, CF35-UL cable features 4 copper conductors with a TPR jacket, includes a ground, and is rated at 1,000 V. It offers notch resistance and minimum bend radius factors of 4 x OD (fixed), 6 x OD (flexible), and 7.5 x OD (e-chain).

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	CE
Cable Series	CF35-UL
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Notch Resistance
Conductor Configuration	Single
Manufacturer Part Number	CF35-60-04-1
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
