Chainflex 3G-OTH-47754 — Technical Specifications

Name: Chainflex 3G-OTH-47754 CHAINFLEX Motor Cable: 14 AWG, 4 Conductors, Order by the Foot, TPR Jacket, 1,000 V (MPN CF34-25-04-1). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Notch Resistance; Standards: CE.
Brand: Chainflex

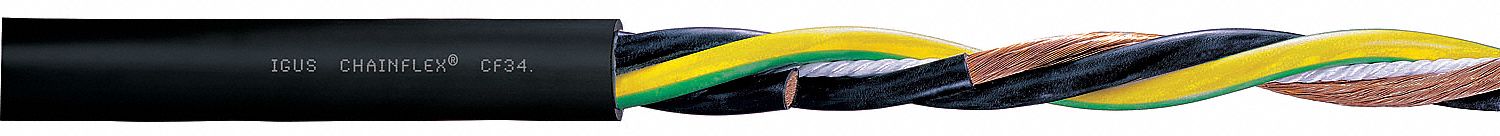

The CHAINFLEX Motor Cable: 14 AWG (SKU 24C134) is a continuous flexing power cable from the Chainflex series, model CF34-UL. This 4-conductor, single-configuration copper cable includes a ground conductor, features a TPR jacket, and is rated for 1,000 V. It offers notch resistance and meets CE standards, with minimum bend radius factors of 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	CE
Cable Series	CF34-UL
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Notch Resistance
Conductor Configuration	Single
Manufacturer Part Number	CF34-25-04-1
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
