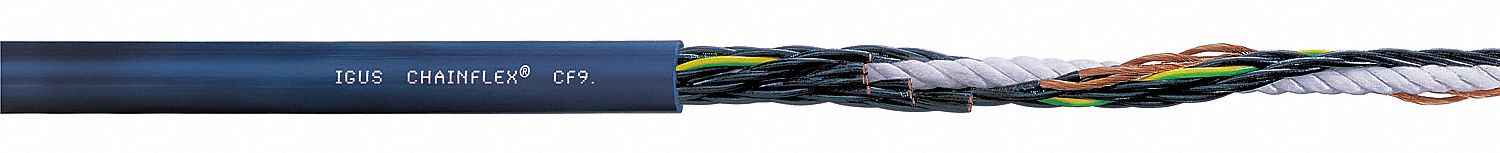

Chainflex 3G-OTH-52192 — Technical Specifications

Name: Chainflex 3G-OTH-52192 CHAINFLEX Control Cable: 24 AWG, 12 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF9-02-12-1). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Notch Resistance; Standards: DIN 47100.
Brand: Chainflex

CHAINFLEX Control Cable: 24 AWG, 12 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF9-02-12-1). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Notch Resistance; Standards: DIN 47100.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	DIN 47100
Cable Series	CF9
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Notch Resistance
Conductor Configuration	Single
Manufacturer Part Number	CF9-02-12-1
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
