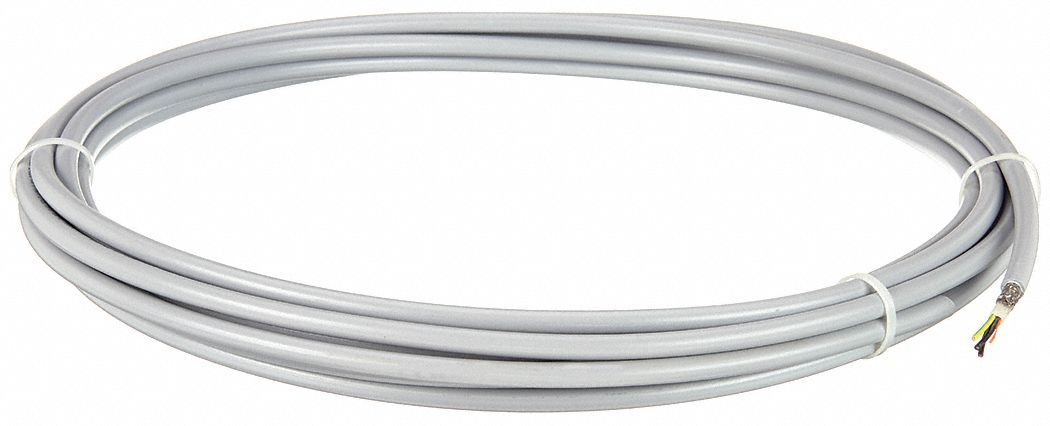

Chainflex 3G-OTH-53409 — Technical Specifications

Name: Chainflex 3G-OTH-53409 CHAINFLEX Control Cable: 18 AWG, 3 Conductors, Order by the Foot, PUR Jacket, 1,000 V (MPN CF78-UL-07-03). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Coolant Resistant; Standards: CE.
Brand: Chainflex

The CHAINFLEX Control Cable: 18 AWG is a continuous flexing control cable from the Chainflex series, featuring 3 conductors of 18 AWG copper with a PUR jacket and a 1,000 V rating. It includes a ground conductor, is coolant resistant, and meets CE standards. The cable supports fixed, flexible, and e-chain installations with minimum bend radius factors of 4 x OD, 5 x OD, and 6.8 x OD respectively.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	CE
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Coolant Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF78-UL-07-03
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
