CHAINFLEX Control Cable: 17 AWG - Continuous Flexing Control Cables
CHAINFLEXContinuous Flexing Control Cables

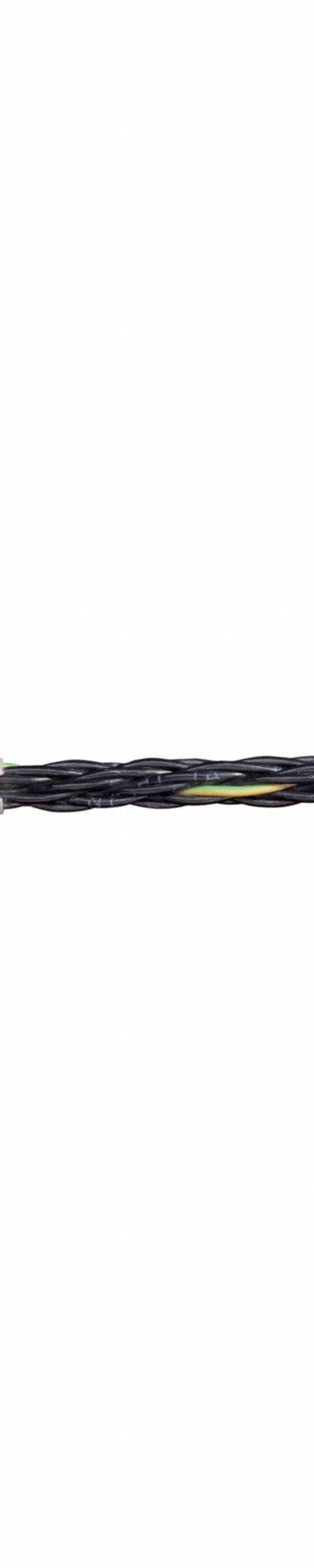

CHAINFLEX Control Cable: 17 AWG

The CHAINFLEX Control Cable: 17 AWG is a continuous flexing control cable from the Chainflex CF10 series, featuring 18 conductors with single copper conductors and a TPR jacket rated at 300 V. It includes a ground…

SKU 3G-OTH-51669

Brand
CHAINFLEX
Item
Control Cable: 17 AWG
Category
Continuous Flexing Control Cables
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

CHAINFLEX
Brand
CHAINFLEX
Series
Chainflex
Standards
VW-1
Cable Series
CF10
Product Type
Control Cable
Includes Ground
Yes
Conductor Material
Copper
Resistance Properties
Coolant Resistant
Conductor Configuration
Single
Manufacturer Part Number
CF10-10-18
Minimum Bend Radius Factor - Fixed
3 x OD
Minimum Bend Radius Factor - E-Chain
5 x OD
Minimum Bend Radius Factor - Flexible
4 x OD
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

CHAINFLEX Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The CHAINFLEX Control Cable: 17 AWG is a continuous flexing control cable from the Chainflex CF10 series, featuring 18 conductors with single copper conductors and a TPR jacket rated at 300 V. It includes a ground conductor, is coolant resistant, and meets VW-1 standards. Minimum bend radius factors are 3 x OD for fixed, 4 x OD for flexible, and 5 x OD for e-chain applications.

Used in

Common applications for CHAINFLEX
Automated assembly lines — Chainflex CF10 control cables for signal transmission in cable carriers
Robotic arms — Chainflex CF280ULH servo motor cables for power and feedback in high-flex joints
Material handling conveyors — Chainflex CF78-UL control cables with PUR jacket for oil resistance
CNC machining centers — Chainflex CF9-UL control cables rated at 1,000 V for spindle and axis control
Packaging machinery — Chainflex CFBUS-PVC-021 bus cables for CAN-Bus communication in continuous motion
Automotive manufacturing — Chainflex CF2 control cables with UV-resistant PUR jacket for outdoor gantry systems
