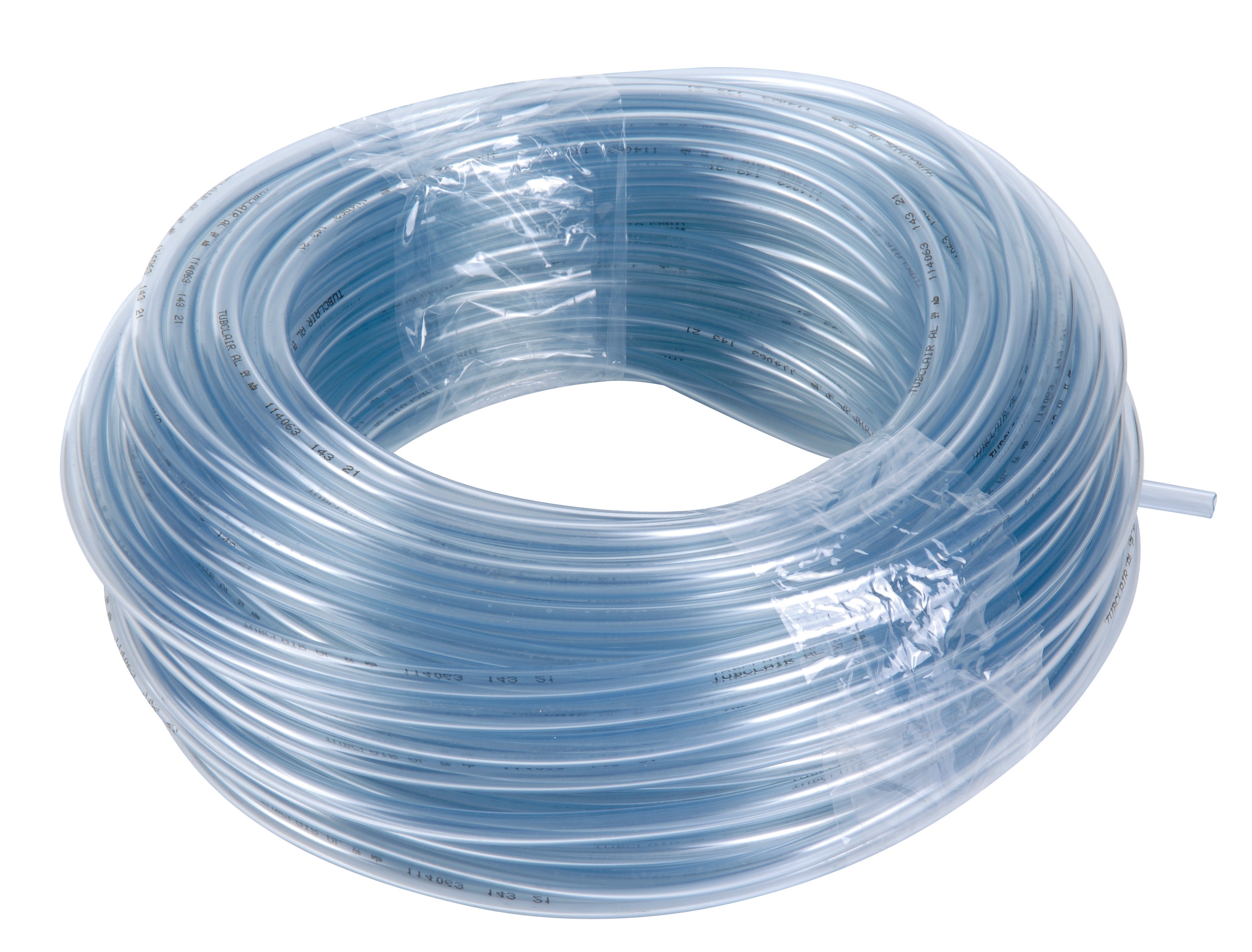

CBM Clear reinforced tubing 10X15 roll 50m

CBM clear reinforced tubing delivers transparent air-conditioning applications with 10 mm inner diameter and 50 m length. Rated to 40 bar maximum pressure and temperature range from -15°C to 60°C, polyester…

SKU 3G-CBM-00933

Also listed as: CLI 04515 · CLI-04515

Brand

CBM

Item

Clear reinforced tubing 10X15 roll 50m

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

CBM

color

transparent

length m

50

dimensions

0 ext. : 15 mm - Ø int. 10 mm 50m

reinforcement

polyester

max pressure bar

40

inner diameter mm

10

max temperature c

60

min temperature c

-15

outer diameter mm

15

wall thickness mm

2.5

Datasheet Content

Multi usages

                                                               3G-CBM-00933 à 16
                                                                                                                                                                           +60
                                                                                                                                                                           -15
                                                                                                                                                                                 °C



                                              P.L.N.E.                               Simulants A,B,C                           P jus de fruits
                                   24 à 40 bar
                                                               (EU) N° 10/2011
                                                                                                                               P vins

                                                                                                                                1 Recouvrement en PVC souple
                                                                                 1            2             3                   2 Renforcement polyester
                                                                                                                                3 Tube intérieur en PVC souple

 APPLICATIONS
Tuyau polyvalent adapté à de nombreux                     Tuyau polyvalent transparent.
usages :                                                  Conception tri-couches en PVC souple transparent, avec renforcement en fibre polyester haute ténacité.
- Alimentation de machines et d’outillages
  à air comprimé
- Transfert de certains produits chimiques
  voir tableau pages 89 à 92
- Refoulement d’eau (traitement des eaux)

TOUS SECTEURS D’ACTIVITÉ
- Industrie automobile, usines d’assemblage
- Plasturgie
- Bâtiment
- Garages (VL/PL et véhicules agricoles)
- Menuiserie, etc...
                                                           Marquage : Ø int x Ø ext / Ø int x ep.    (EU) N° 10/2011 Sim. A, B, C [N° lot]


AVANTAGES                                                 RACCORDS COMPATIBLES                                                 TENUE CHIMIQUE
Grâce aux matières choisies, le TCF est souple et         Embouts cannelés, à olive ou à gorge (type Express).                 Le TCF est compatible avec certains acides et alcalins.
transparent. Par ailleurs, son renforcement permet une    Montage avec colliers à bande, à tourillons, à oreilles              Nous vous invitons à consulter le tableau pages 89 à 92
bonne tenue en pression.                                  (éviter les colliers à une oreille), ou coiffes adaptées. Le         colonne A pour plus de précisions.
                                                          sertissage avec des jupes non blessantes est possible                Attention : Le transfert d'hydrocarbures provoque une
                                                          (nous consulter dans ce cas). Bien veiller avant montage             perte de souplesse rapide du TCF, le rendant cassant. On
                                                          à ce que l’embout ne soit pas blessant pour le tube                  lui préférera donc le Tricofuel dans ce cas. Pour plus de
                                                          intérieur (cas notamment des raccords mal ébavurés                   précisions, nous consulter.
                                                          donc coupants).




                                                                                                                         Transparent                       Bleu            Rouge
               mm                   mm                                                                            25 m                 50 m                25 m             25 m
   6,3        +/- 0,3     11        +/- 0,5     2,35      77                 40        13           50          149621              149622
    8         +/- 0,4     13        +/- 0,6     2,5      100                 40        13           65          149635              149648             125675            125662
    10        +/- 0,4     15        +/- 0,6     2,5      120                 40        13           80          149651              149664             125691            125688
  12,5        +/- 0,5     18        +/- 0,7     2,75     160                 40        13           110         149677              149680             125717            125704
    16        +/- 0,8     22        +/- 0,8       3      217                 40        13           145         149693              149706
    19        +/- 0,8     26        +/- 0,8     3,5      300                 40        13           174         149712              149725
    25        +/- 0,8     33        +/- 1,0       4      444                 40        13           260         149738              149741
    30        +/- 0,8     40        +/- 1,0       5      670                 36        12           300         149754              149767
    32        +/- 0,8     41        +/- 1,0     4,5      629                 36        12           350         149770              149783
    38        +/- 1,0     47        +/- 1,2     4,5      733                 33        11           400         149796              149809
    40        +/- 1,0     50        +/- 1,2       5      865                 26         8           420         149812
    50        +/- 1,0     60        +/- 1,2       5      1056                24         8           500         149825

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

CBM Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

Where can I source CBM CLI04515 clear tubing worldwide?

3G Electric is an authorised CBM distributor. We source and deliver the CLI04515 50 m roll globally, handling all logistics and customs. Lead time on request.

What is the pressure and temperature rating for CBM CLI04515 tubing?

The CLI04515 is rated to 40 bar maximum pressure with a temperature range of −15°C to +60°C. The 10 mm inner diameter and polyester reinforcement suit HVAC and refrigeration systems.

What are the dimensions and material of this CBM tubing?

Outer diameter 15 mm, inner diameter 10 mm, wall thickness 2.5 mm. Clear polyester-reinforced construction, supplied as a 50 m roll for air-conditioning and refrigeration applications.
