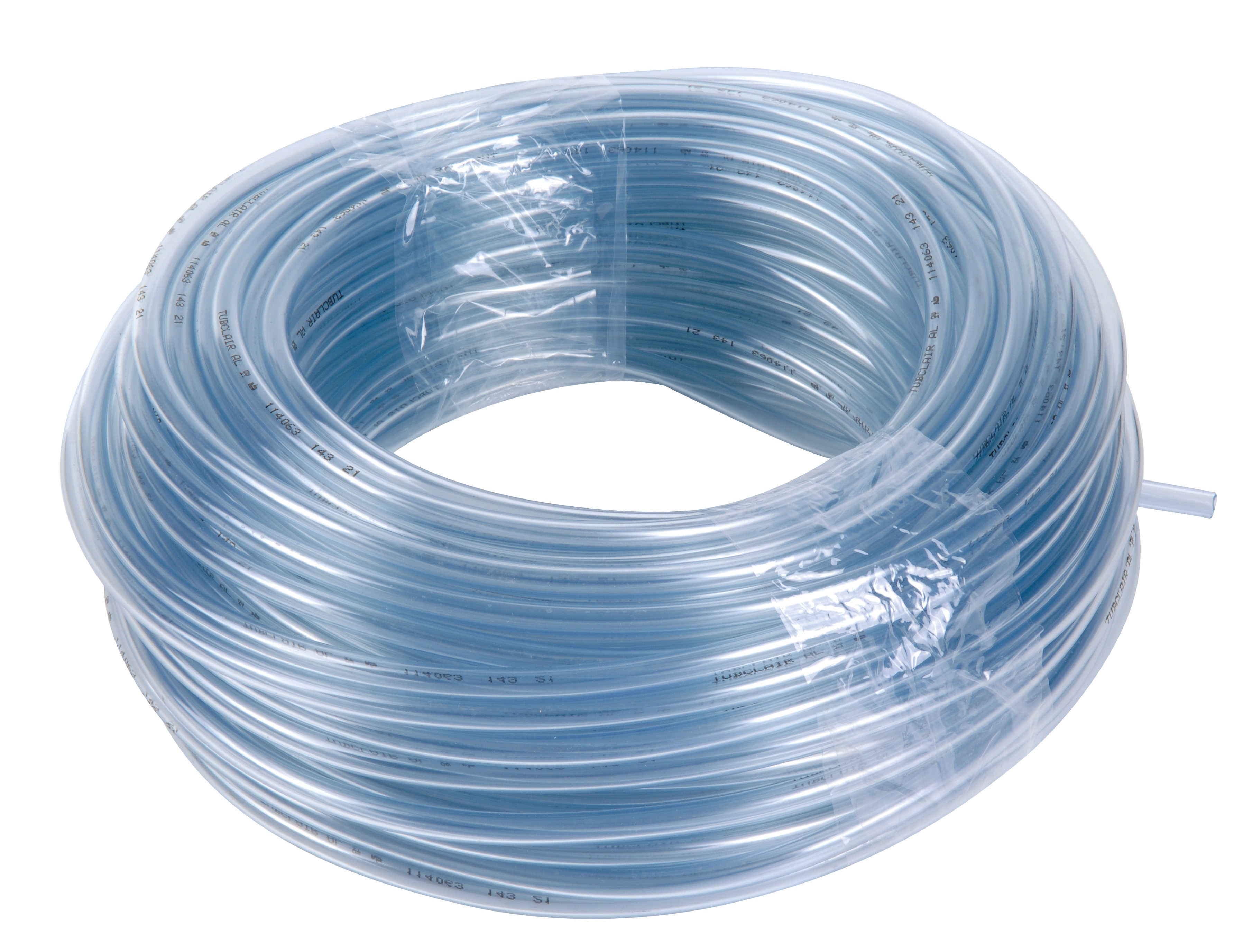

CBM Crystal tube 3x5 roll 50m

CBM crystal tube is a transparent PVC air conditioning line with 3 mm inner diameter and 5 mm outer diameter, available in 50 m rolls. Operating temperature range of -15 to +60°C and EU 10/2011 food-contact…

SKU 3G-CBM-00929

Also listed as: CLI 04511 · CLI-04511

Brand

CBM

Item

Crystal tube 3x5 roll 50m

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

CBM

length m

50

material

PVC transparent

dimensions

0 ext. : 5 mm 0 int. 3 mm 50m

food contact

EU 10/2011 compliant

inner diameter mm

3

outer diameter mm

5

temperature range

-15 to +60°C

Datasheet Content

Multi usages

                                                              3G-CBM-00929                                                                                              +60
                                                                                                                                                                    -15
                                                                                                                                                                          °C



                                                                                    Simulants A,B,C                                 P jus de fruits
                                                               (EU) N° 10/2011
                                                                                                                                    P vins

                                                             Tube monocouche économique en PVC souple transparent

APPLICATIONS
- Passage de produits alimentaires faiblement
  alcoolisés et non gras (non-compatible avec les
  produits laitiers)
- Utilisation comme gaine de protection

SECTEURS D’ACTIVITÉ
- Industrie en général




                                                              Marquage :          (EU) N° 10/2011 Sim. A, B, C [N° lot]


                                                                                                                                                      Transparent
RACCORDS
Raccords à embout cannelé ou à olive avec colliers à                              mm                                      mm                  25 m       50 m        100 m
bande ou à oreille(s). Le sertissage est à proscrire. Bien       4                +/- 0,2         6               1       +/- 0,2     19                            141040
veiller avant montage à ce que l’embout ne soit pas              4                +/- 0,2         7             1,5       +/- 0,2     31               069141
blessant pour le tube intérieur (cas notamment des               5                +/- 0,2         8             1,5       +/- 0,2     37               069167
raccords mal ébavurés donc coupants).
                                                                 6                +/- 0,3         9             1,5       +/- 0,2     43               069286
TENUE CHIMIQUE                                                   7                +/- 0,4        10             1,5       +/- 0,2     49               069290
Voir tableau pages 89 à 92 colonne A.                            8                +/- 0,4        10               1       +/- 0,2     34               069326
Ne résiste pas aux hydrocarbures.                                8                +/- 0,4        11             1,5       +/- 0,2     54               069328
Choisir plutôt dans ce cas le TUBE PU CALIBRE                    8                +/- 0,5        12               2       +/- 0,2     75               141266
(page 33).
                                                                 9                +/- 0,5        12             1,5       +/- 0,2     60               093910       069153
                                                                10                +/- 0,5        13             1,5       +/- 0,2     66               069330
                                                                10                +/- 0,5        14               2       +/- 0,2     90               141369
                                                                10                +/- 0,5        16               3       +/- 0,3     147              141372
                                                                12                +/- 0,5        15             1,5       +/- 0,3     77               069340
                                                                12                +/- 0,5        16               2       +/- 0,3     106              069360
                                                                13                +/- 0,6        17               2       +/- 0,3     114              069370
                                                                15                +/- 0,8        19               2       +/- 0,3     130              141919
                                                                15                +/- 0,8        21               3       +/- 0,3     204              141485
                                                                16                +/- 0,8        20               2       +/- 0,3     138              141501
                                                                16                +/- 0,8        21             2,5       +/- 0,3     176              141505
                                                                19                +/- 0,8        24             2,5       +/- 0,3     205              141510
                                                                20                +/- 0,8        26               3       +/- 0,3     260              141633
                                                                25                +/- 1,0        31               3       +/- 0,3     317    141662
                                                                30                +/- 1,0        37             3,5       +/- 0,4     442    141720
                                                                38                +/- 1,0        48               5       +/- 0,5     818    141817
