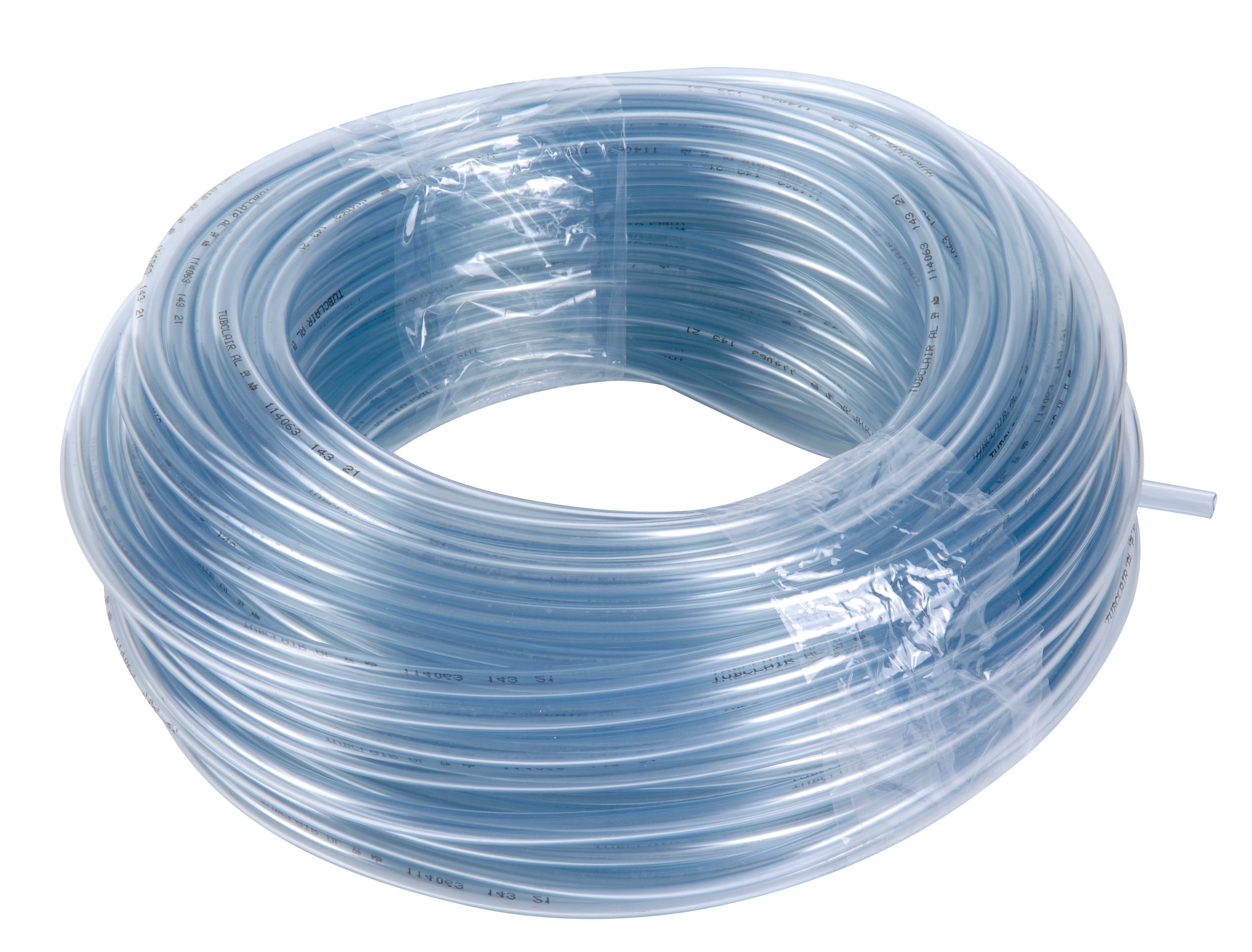

CBM Crystal tube 10x14 roll 50m

CBM Crystal tube is a transparent PVC air conditioning hose with 10 mm inner diameter and 14 mm outer diameter, supplied in 50 m rolls. Operating range spans -15°C to +60°C, suitable for HVAC cooling applications…

SKU 3G-CBM-00935

Also listed as: CLI 04517 · CLI-04517

Brand

CBM

Item

Crystal tube 10x14 roll 50m

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

CBM

type

monocouche transparent

length m

50

material

PVC

simulants

A, B, C

dimensions

Ø ext. 14 mm ø int. 10 mm 50m

temperature max

+60°C

temperature min

-15°C

inner diameter mm

10

outer diameter mm

14

food contact standard

EU 10/2011

Datasheet Content

Multi usages

                                                              3G-CBM-00935                                                                                              +60
                                                                                                                                                                    -15
                                                                                                                                                                          °C



                                                                                    Simulants A,B,C                                 P jus de fruits
                                                               (EU) N° 10/2011
                                                                                                                                    P vins

                                                             Tube monocouche économique en PVC souple transparent

APPLICATIONS
- Passage de produits alimentaires faiblement
  alcoolisés et non gras (non-compatible avec les
  produits laitiers)
- Utilisation comme gaine de protection

SECTEURS D’ACTIVITÉ
- Industrie en général




                                                              Marquage :          (EU) N° 10/2011 Sim. A, B, C [N° lot]


                                                                                                                                                      Transparent
RACCORDS
Raccords à embout cannelé ou à olive avec colliers à                              mm                                      mm                  25 m       50 m       100 m
bande ou à oreille(s). Le sertissage est à proscrire. Bien       4                +/- 0,2         6               1       +/- 0,2     19                              X
veiller avant montage à ce que l’embout ne soit pas              4                +/- 0,2         7             1,5       +/- 0,2     31                  X
blessant pour le tube intérieur (cas notamment des               5                +/- 0,2         8             1,5       +/- 0,2     37                  X
raccords mal ébavurés donc coupants).
                                                                 6                +/- 0,3         9             1,5       +/- 0,2     43                  X
TENUE CHIMIQUE                                                   7                +/- 0,4        10             1,5       +/- 0,2     49                  X
Voir tableau pages 89 à 92 colonne A.                            8                +/- 0,4        10               1       +/- 0,2     34                  X
Ne résiste pas aux hydrocarbures.                                8                +/- 0,4        11             1,5       +/- 0,2     54                  X
Choisir plutôt dans ce cas le TUBE PU CALIBRE                    8                +/- 0,5        12               2       +/- 0,2     75                  X
(page 33).
                                                                 9                +/- 0,5        12             1,5       +/- 0,2     60                  X           X
                                                                10                +/- 0,5        13             1,5       +/- 0,2     66                  X
                                                                10                +/- 0,5        14               2       +/- 0,2     90                  X
                                                                10                +/- 0,5        16               3       +/- 0,3     147                 X
                                                                12                +/- 0,5        15             1,5       +/- 0,3     77                  X
                                                                12                +/- 0,5        16               2       +/- 0,3     106                 X
                                                                13                +/- 0,6        17               2       +/- 0,3     114                 X
                                                                15                +/- 0,8        19               2       +/- 0,3     130                 X
                                                                15                +/- 0,8        21               3       +/- 0,3     204                 X
                                                                16                +/- 0,8        20               2       +/- 0,3     138                 X
                                                                16                +/- 0,8        21             2,5       +/- 0,3     176                 X
                                                                19                +/- 0,8        24             2,5       +/- 0,3     205                 X
                                                                20                +/- 0,8        26               3       +/- 0,3     260                 X
                                                                25                +/- 1,0        31               3       +/- 0,3     317      X
                                                                30                +/- 1,0        37             3,5       +/- 0,4     442      X
                                                                38                +/- 1,0        48               5       +/- 0,5     818      X

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

CBM Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

Where can I buy CBM Crystal tube 10x14 50 m rolls with worldwide delivery?

Source Crystal tube 10x14 rolls from 3G Electric, an authorized distributor handling logistics and customs globally. Lead time on request — contact our procurement team for availability and pricing on all CBM tubing products.

What is the operating temperature range for the CBM 10x14 Crystal tube?

The CBM Crystal tube 10x14 operates from -15°C to +60°C, making it suitable for HVAC cooling and refrigeration applications requiring stable performance across typical seasonal and industrial temperature ranges.

Is the CBM Crystal tube 10x14 food-contact compliant?

Yes. The CBM Crystal tube 10x14 is certified under EU 10/2011 food-contact standards with simulants A, B, and C compliance, enabling use in food-contact cooling circuits where regulatory approval is required.
