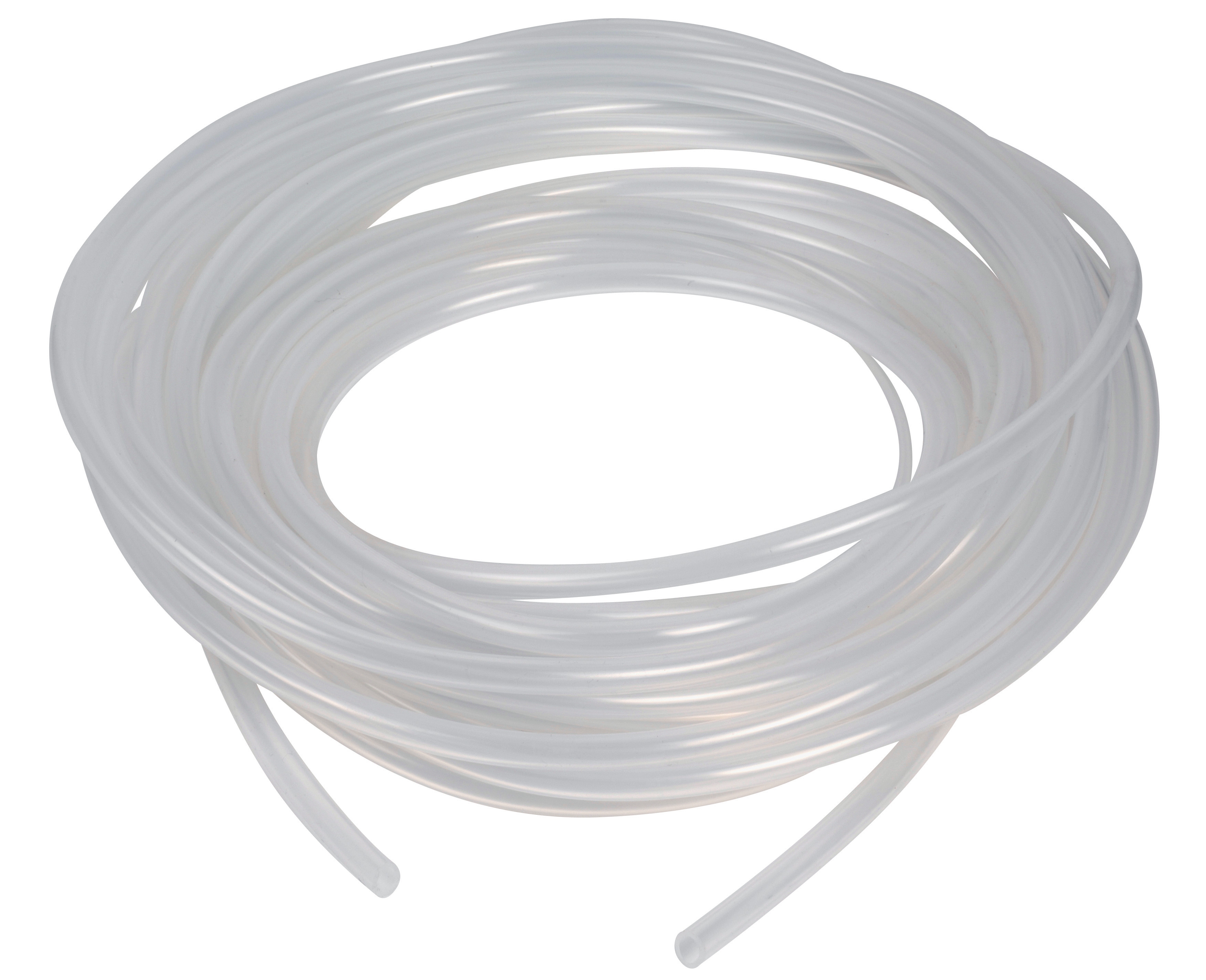

CBM Silicone hose 15X21mm per meter

CBM silicone hose for air conditioning and fluid transfer applications, featuring 15 mm inner diameter and 21 mm outer diameter with 60 shA hardness. Operates from -50 to +200 °C, suitable for automotive and…

SKU 3G-CBM-00927

Also listed as: CLI 04509 · CLI-04509

Brand

CBM

Item

Silicone hose 15X21mm per meter

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

CBM

hardness

60 shA

material

silicone

dimensions

ø ext. 21 mm Ø int. 15 mm le mètre

standard length

25 m

inner diameter mm

15

outer diameter mm

21

temperature range

-50 to +200 °C

Datasheet Content

Produits alimentaires

                                                                        3G-CBM-00927
                                                                                                                                                                      +200
                                                                                                                                                                       - 50
                                                                                                                                                                              °C




                                                                                                                P jus de fruits            P alcools forts
                                                                          (EU) N° 10/2011
                                                                                                                P vins                     P lait

                                                                   Tube monocouche en silicone transparent de qualité alimentaire
APPLICATIONS                                                       et très souple. (60 shA)
Passage sans pression de liquides alimentaires et de
solutions aqueuses dont des acides et des bases

SECTEURS D’ACTIVITÉ
- Agroalimentaire
- Médical (matériels non invasifs)
- Laboratoires




                                                                       Aucun marquage


AVANTAGES                                                         RACCORDS                                                    TENUE CHIMIQUE
Le silicone est un matériau souple résistant à des                Raccords à embout cannelé ou à olive avec colliers à        Voir tableau pages 89 à 92 colonne G.
températures élevées. Le Vitryl peut ainsi être utilisé           bande, à tourillon ou à oreille(s). Le sertissage est à
jusque 200°C (240°C en pointe) et supporte des cycles             proscrire. Le montage sur tube lisse avec colliers est
répétés de stérilisation.                                         possible. Bien veiller avant montage à ce que l’embout ne
Le Vitryl peut également être utilisé à basse température         soit pas blessant pour le tube intérieur (cas notamment
tout en gardant sa souplesse.                                     des raccords mal ébavurés donc coupants).
Il est apte aux contacts alimentaires. Les alcools titrant
jusqu'à 50% vol. peuvent y être véhiculés.

                                                                                                 Transparent
                   mm                                         mm                                    25 m
      3           +/- 0,2        5             1             +/- 0,15                15           189782
      3           +/- 0,2        6            1,5            +/- 0,15                24           169283
      3           +/- 0,2        7             2             +/- 0,15                37           169022
      4          +/- 0,25        6             1             +/- 0,15                18           189795
      4          +/- 0,25        7            1,5            +/- 0,15                30           169309
      4          +/- 0,25        8             2             +/- 0,15                44           169035
      5          +/- 0,35        8            1,5            +/- 0,2                 36           189801
      6          +/- 0,35        9            1,5            +/- 0,25                41           189814
      6          +/- 0,35       10             2             +/- 0,25                58           169080
      6          +/- 0,35       12             3             +/- 0,25                98           169093
      7           +/- 0,4       10            1,5            +/- 0,25                46           189827
      7           +/- 0,4       11             2             +/- 0,25                66           169409
      8           +/- 0,4       11            1,5            +/- 0,25                52           169425
      8           +/- 0,4       12             2             +/- 0,25                73           189830
      8           +/- 0,4       14             3             +/- 0,25               120           169112
     10           +/- 0,4       14             2             +/- 0,25                87           189843
     10           +/- 0,4       16             3             +/- 0,25               132           169125
     12           +/- 0,5       16             2             +/- 0,3                102           169154
     12           +/- 0,5       17            2,5            +/- 0,3                132           189856
     15           +/- 0,5       21             3             +/- 0,3                197           189869
     20           +/- 0,7       27            3,5            +/- 0,36               300           189885

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

CBM Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

Where can I buy CBM CLI04509 silicone hose worldwide?

3G Electric is an authorized distributor of CBM silicone hose. We source the CLI04509 15×21mm hose globally and handle worldwide delivery, logistics, and customs. Lead time on request.

What is the temperature operating range of the CBM CLI04509?

The CBM CLI04509 silicone hose operates from -50 to +200 °C, making it suitable for both automotive air conditioning and high-temperature industrial cooling circuits.

What are the dimensions and hardness of this silicone hose?

Inner diameter 15 mm, outer diameter 21 mm, 60 shA hardness. Supplied per meter or in 25 m standard coils for flexible air conditioning and fluid transfer systems.
