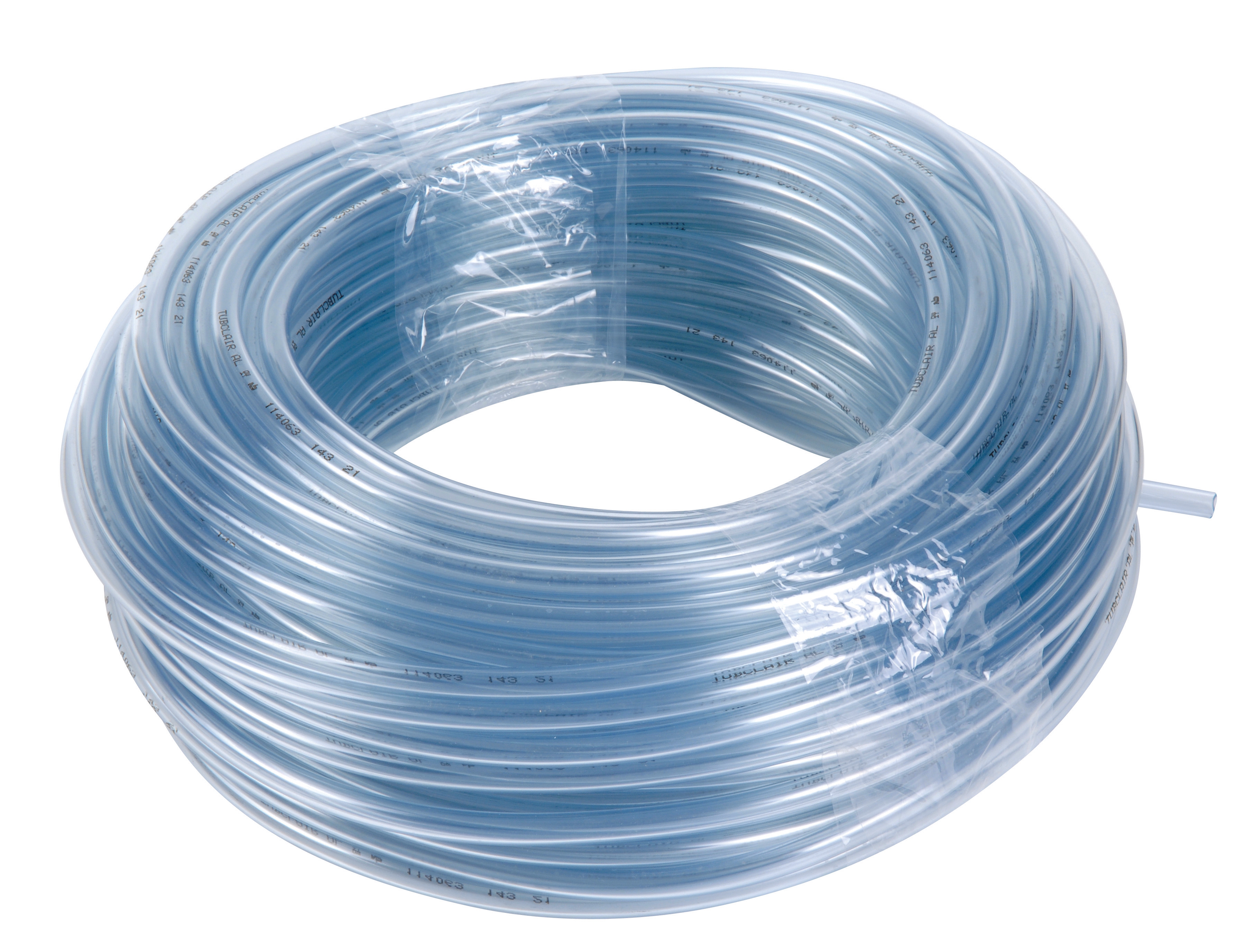

CBM Crystal tube 7x10 roll 50m

CBM crystal tube is a transparent PVC monocouche tubing for food-product and air-conditioning applications, offering 7 mm inner diameter and 10 mm outer diameter in 50 m rolls. Operating range spans -15 to +60°C…

SKU 3G-CBM-00931

Also listed as: CLI 04513 · CLI-04513

Brand

CBM

Item

Crystal tube 7x10 roll 50m

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

CBM

length m

50

tube type

PVC monocouche transparent

dimensions

ø ext. 10 mm 0 int. 7 mm 50m

applications

food products, protection sheath

inner diameter mm

7

outer diameter mm

10

temperature range

-15 to +60°C

Datasheet Content

Multi usages

                                                              3G-CBM-00931 à 14                                                                                         +60
                                                                                                                                                                    -15
                                                                                                                                                                          °C



                                                                                    Simulants A,B,C                                 P jus de fruits
                                                               (EU) N° 10/2011
                                                                                                                                    P vins

                                                             Tube monocouche économique en PVC souple transparent

APPLICATIONS
- Passage de produits alimentaires faiblement
  alcoolisés et non gras (non-compatible avec les
  produits laitiers)
- Utilisation comme gaine de protection

SECTEURS D’ACTIVITÉ
- Industrie en général




                                                              Marquage :          (EU) N° 10/2011 Sim. A, B, C [N° lot]


                                                                                                                                                      Transparent
RACCORDS
Raccords à embout cannelé ou à olive avec colliers à                              mm                                      mm                  25 m       50 m       100 m
bande ou à oreille(s). Le sertissage est à proscrire. Bien       4                +/- 0,2         6               1       +/- 0,2     19                              X
veiller avant montage à ce que l’embout ne soit pas              4                +/- 0,2         7             1,5       +/- 0,2     31                  X
blessant pour le tube intérieur (cas notamment des               5                +/- 0,2         8             1,5       +/- 0,2     37                  X
raccords mal ébavurés donc coupants).
                                                                 6                +/- 0,3         9             1,5       +/- 0,2     43                  X
TENUE CHIMIQUE                                                   7                +/- 0,4        10             1,5       +/- 0,2     49                  X
Voir tableau pages 89 à 92 colonne A.                            8                +/- 0,4        10               1       +/- 0,2     34                  X
Ne résiste pas aux hydrocarbures.                                8                +/- 0,4        11             1,5       +/- 0,2     54                  X
Choisir plutôt dans ce cas le TUBE PU CALIBRE                    8                +/- 0,5        12               2       +/- 0,2     75                  X
(page 33).
                                                                 9                +/- 0,5        12             1,5       +/- 0,2     60                  X           X
                                                                10                +/- 0,5        13             1,5       +/- 0,2     66                  X
                                                                10                +/- 0,5        14               2       +/- 0,2     90                  X
                                                                10                +/- 0,5        16               3       +/- 0,3     147                 X
                                                                12                +/- 0,5        15             1,5       +/- 0,3     77                  X
                                                                12                +/- 0,5        16               2       +/- 0,3     106                 X
                                                                13                +/- 0,6        17               2       +/- 0,3     114                 X
                                                                15                +/- 0,8        19               2       +/- 0,3     130                 X
                                                                15                +/- 0,8        21               3       +/- 0,3     204                 X
                                                                16                +/- 0,8        20               2       +/- 0,3     138                 X
                                                                16                +/- 0,8        21             2,5       +/- 0,3     176                 X
                                                                19                +/- 0,8        24             2,5       +/- 0,3     205                 X
                                                                20                +/- 0,8        26               3       +/- 0,3     260                 X
                                                                25                +/- 1,0        31               3       +/- 0,3     317      X
                                                                30                +/- 1,0        37             3,5       +/- 0,4     442      X
                                                                38                +/- 1,0        48               5       +/- 0,5     818      X

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

CBM Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

Where can I buy the CBM crystal tube 7x10 50m roll worldwide?

3G Electric is an authorized distributor of CBM crystal tubes. We handle procurement, logistics, and customs clearance for worldwide delivery. Contact us with your specifications and lead-time requirements.

What is the lead time and delivery timeline for the CBM CLI04513?

Lead time depends on order volume and destination. 3G Electric coordinates shipment to locations worldwide. Request a quote with your delivery address for exact lead-time and freight terms.

What applications are suitable for the 7x10 crystal tube?

The CBM crystal tube (7 mm inner diameter, 10 mm outer diameter) suits food-product conveyance, air-conditioning protection sheaths, and fluid lines in temperature-controlled environments from -15 to +60°C.

Used in

Common applications for CBM

Industrial boilers — CBM circulation pumps (mod. CM 30W) and solenoid valves (ELV series) for heating-loop control and pump staging.

Burner systems — CBM oil nozzles (FLU atomizer types), electrodes (ELC 200 mm), and solenoid coils (ELV 230V AC) for combustion ignition and flame supervision.

Plant maintenance and retrofit — CBM cable glands (CLI M25), motor couplings (ACC type D), and small-radius fittings (RAC 90°) for equipment reconfiguration and sensor integration.

Boiler water treatment — CBM chlorine test kits (DET free+combined) for feedwater and circulating-water quality monitoring in closed-loop systems.

Pump and motor assembly — CBM couplings, fittings, and cable glands for assembly and rewinding of industrial motors, circulation pumps, and auxiliary equipment.
