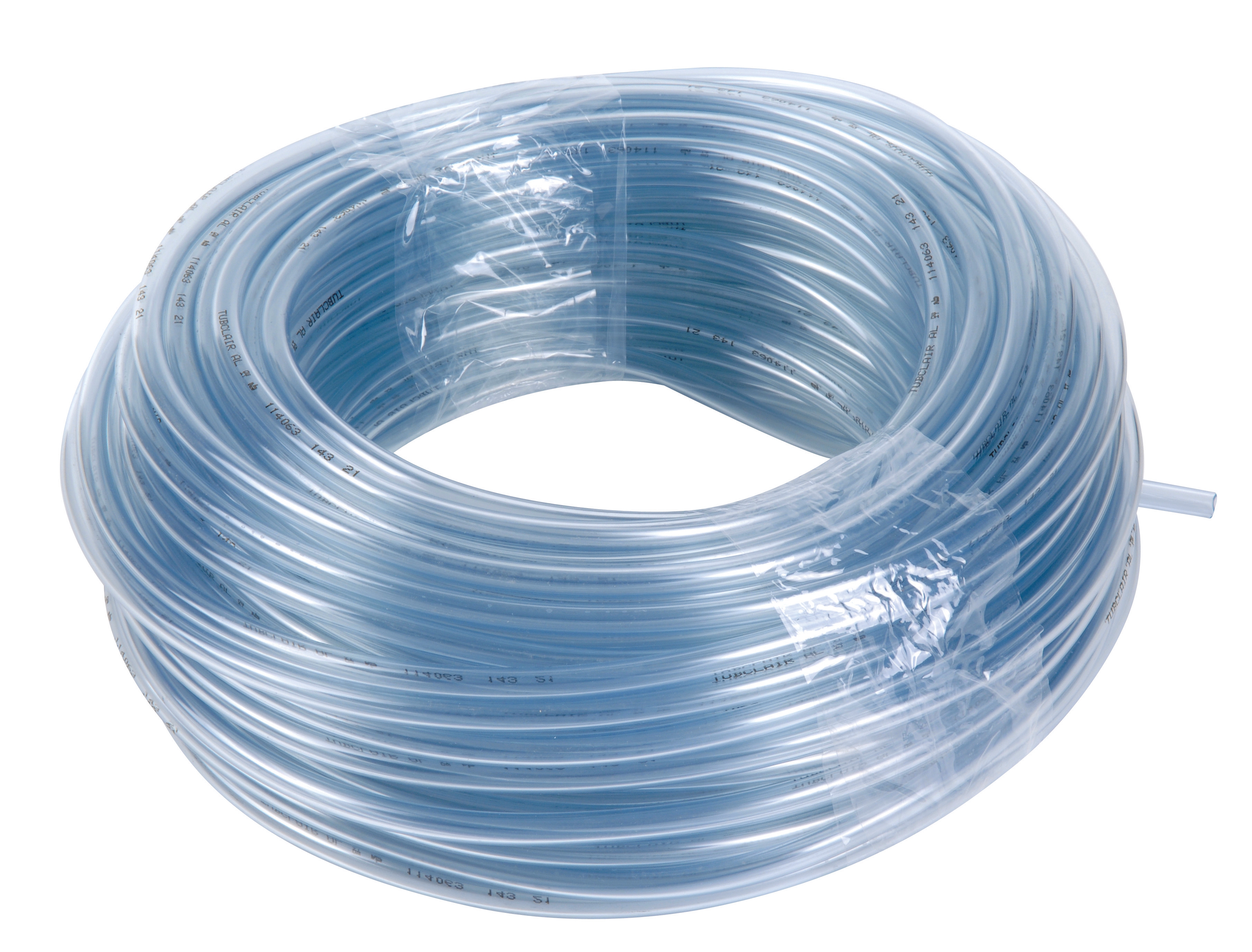

CBM Crystal tube 9x12 roll 50m

CBM crystal tube is a flexible PVC air conditioning line with 9 mm inner and 12 mm outer diameter, supplied in 50 m rolls. Operating range spans −15 to +60 °C, suitable for refrigeration and HVAC systems requiring…

SKU 3G-CBM-00932

Also listed as: CLI 04514 · CLI-04514

Brand

CBM

Item

Crystal tube 9x12 roll 50m

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

CBM

length m

50

material

PVC flexible

dimensions

ø ext. 12 mm ø int. 9 mm 50m

inner diameter mm

9

outer diameter mm

12

temperature range c

-15 to +60

food contact compliance

EU 10/2011 Simulants A,B,C

Datasheet Content

Multi usages

                                                              CLI04513 à 14                                                                                         +60
                                                                                                                                                                    -15
                                                                                                                                                                          °C



                                                                                    Simulants A,B,C                                 P jus de fruits
                                                               (EU) N° 10/2011
                                                                                                                                    P vins

                                                             Tube monocouche économique en PVC souple transparent

APPLICATIONS
- Passage de produits alimentaires faiblement
  alcoolisés et non gras (non-compatible avec les
  produits laitiers)
- Utilisation comme gaine de protection

SECTEURS D’ACTIVITÉ
- Industrie en général




                                                              Marquage :          (EU) N° 10/2011 Sim. A, B, C [N° lot]


                                                                                                                                                      Transparent
RACCORDS
Raccords à embout cannelé ou à olive avec colliers à                              mm                                      mm                  25 m       50 m       100 m
bande ou à oreille(s). Le sertissage est à proscrire. Bien       4                +/- 0,2         6               1       +/- 0,2     19                              X
veiller avant montage à ce que l’embout ne soit pas              4                +/- 0,2         7             1,5       +/- 0,2     31                  X
blessant pour le tube intérieur (cas notamment des               5                +/- 0,2         8             1,5       +/- 0,2     37                  X
raccords mal ébavurés donc coupants).
                                                                 6                +/- 0,3         9             1,5       +/- 0,2     43                  X
TENUE CHIMIQUE                                                   7                +/- 0,4        10             1,5       +/- 0,2     49                  X
Voir tableau pages 89 à 92 colonne A.                            8                +/- 0,4        10               1       +/- 0,2     34                  X
Ne résiste pas aux hydrocarbures.                                8                +/- 0,4        11             1,5       +/- 0,2     54                  X
Choisir plutôt dans ce cas le TUBE PU CALIBRE                    8                +/- 0,5        12               2       +/- 0,2     75                  X
(page 33).
                                                                 9                +/- 0,5        12             1,5       +/- 0,2     60                  X           X
                                                                10                +/- 0,5        13             1,5       +/- 0,2     66                  X
                                                                10                +/- 0,5        14               2       +/- 0,2     90                  X
                                                                10                +/- 0,5        16               3       +/- 0,3     147                 X
                                                                12                +/- 0,5        15             1,5       +/- 0,3     77                  X
                                                                12                +/- 0,5        16               2       +/- 0,3     106                 X
                                                                13                +/- 0,6        17               2       +/- 0,3     114                 X
                                                                15                +/- 0,8        19               2       +/- 0,3     130                 X
                                                                15                +/- 0,8        21               3       +/- 0,3     204                 X
                                                                16                +/- 0,8        20               2       +/- 0,3     138                 X
                                                                16                +/- 0,8        21             2,5       +/- 0,3     176                 X
                                                                19                +/- 0,8        24             2,5       +/- 0,3     205                 X
                                                                20                +/- 0,8        26               3       +/- 0,3     260                 X
                                                                25                +/- 1,0        31               3       +/- 0,3     317      X
                                                                30                +/- 1,0        37             3,5       +/- 0,4     442      X
                                                                38                +/- 1,0        48               5       +/- 0,5     818      X
