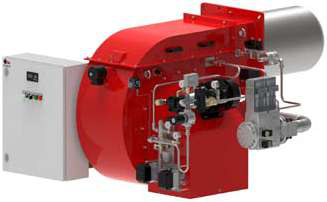

K 1500/M TL EL

Name: K 1500/M TL EL
Brand: FBR
SKU: fbr-k_1500_m_tl_el-k-1500-m-tl-el-diesel-burners-1

On RequestDiesel burners

Price on request — send us an enquiry for current pricing.

K 1500/M TL EL

Minimum order: 1 unit
Lead time: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.

Technical specifications

stage	2 stages sliding or modulating
fuel type	Dual fuel gas/light oil
nozzle mm	655
description	Dual fuel burners for gas and light-oil two stages progressive (hi-low flame) or modulating (PID fully modulating) if equipped with addition of optional modulation kit and probe.
fan motor w	45
power kw max	15116
power kw min	1977
ip protection	IP40
noisiness dba	97
pump motor kw	4
gas consumption	199/421-1520
electrical supply	3
power supply info	3~400V-1/N~230V-50Hz
current absorption a	38
thermal power mcal h	1700/3600-13000
nominal electric power w	49.5
max combustion air temp c	60

Frequently asked questions

Where can I buy the FBR K 1500/M TL EL burner in your region?+

3G Electric supplies the FBR K 1500/M TL EL for delivery to your location. We handle all customs import clearance, customs documentation, and USD invoicing. Contact us for availability and lead times.

What is the lead time and delivery timeframe to your region?+

Lead time varies based on warehouse stock and import logistics. Contact 3G Electric for a quote and specific delivery schedule to your location. We manage freight, handling, and customs clearance end-to-end.

What fuel types does the FBR K 1500/M TL EL support?+

The FBR K 1500/M TL EL is a dual-fuel burner rated for both natural gas and light oil. It delivers 1977–15116 kW across two modulating stages (hi-low or full PID modulation with optional kit) and operates at 97 dBA with IP40 protection.
