ELVSolenoid Valves

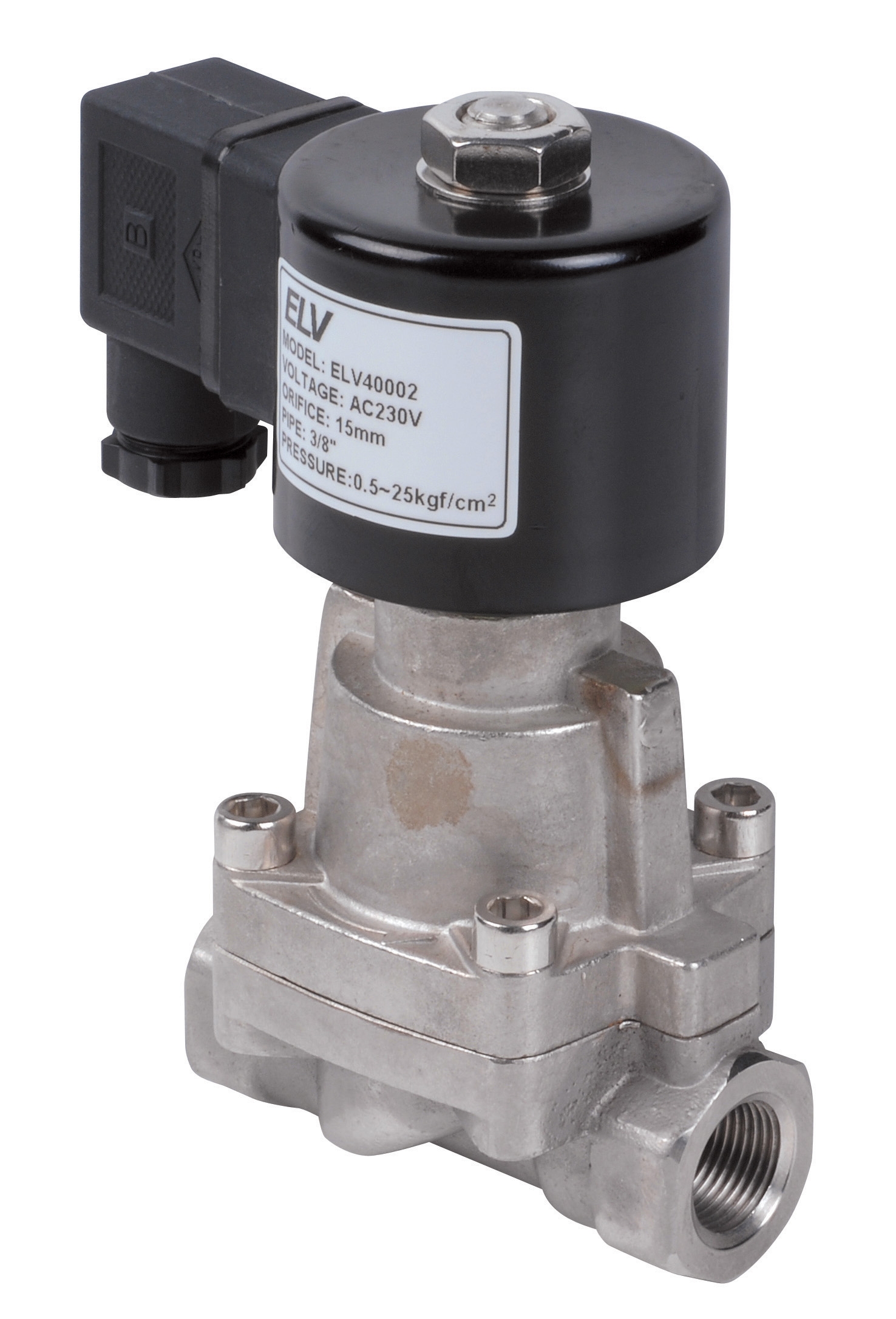

ELV Stainless steel steam solenoid valve D 3/8

ELV stainless steel steam solenoid valve for steam systems and industrial process applications. Features 3/8" connection with 15 mm passage diameter, rated for 0.5 to 10 bar operating pressure and Cv value of 4.5…

SKU 3G-CBM-03268

Also listed as: ELV 40002 · ELV-40002

Brand

ELV

Item

Stainless steel steam solenoid valve D 3/8

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

ELV

fluid

steam

cv value

4.5

max pressure

10 bar

connection size

3/8"

passage diameter

15mm

operating pressure

0.5 to 10 bar

max fluid viscosity

50 CST

max differential pressure

25 bar

Datasheet Content

Electrovannes inox NF vapeur                                                     Code

Electrovanne vapeur 3/8”                                                                           3G-CBM-03268

Electrovanne vapeur 1/2”                                                                           ELV40004

Electrovanne vapeur 3/4”                                                                           ELV40006

Electrovanne vapeur 1”                                                                             ELV40008

Electrovanne vapeur 1”1/4                                                                          ELV40010

Electrovanne vapeur 1”1/2                                                                          ELV40012

Caractéristiques techniques
            Modèle             3G-CBM-03268   ELV40004   ELV40006     ELV40008       ELV40010   ELV40012    ELV40014
Diamètre Raccord                3/8”       1/2”       3/4”           1”          1”1/4      1”1/2         2”
Diamètre passage               15mm       15mm       20mm          25mm          35mm       35mm         50mm
Pression différentielle max.     25         25         25            25            25         25          25
Valeur CV                        4.5        4.5        9.3          13.2           16         26          48
Dim. A mm                        75         75         85           100           120        120         150
Dim. C mm                       129        129        141           148           168        168         190
Viscosité fluide                                             Moins de 50 CST
Fluide                                                             Vapeur
Pression fonctionnement                                         0.5 ~ 10 bar
Pression maxi                                                      10 bar
Température maxi                                                5°C ~ 180°C
Tension                                                      +/- 10% - AC230V
Matériel corps                                                   Acier inox
Membrane                                                            Teflon
Mode opération                                                  Action directe
Type                                                        Normalement fermée

PIÈCES DE RECHANGES POUR VANNES
            Modèle             3G-CBM-03268   ELV40004   ELV40006     ELV40008       ELV40010   ELV40012    ELV40014
Référence bobine 220 V         ELV80515   ELV80515   ELV80515     ELV80515       ELV80515   ELV80515    ELV80515
Référence bobine 110 V            -          -          -             -             -          -           -
Référence bobine AC 48 V          -          -          -             -             -          -           -
Référence bobine AC 24 V          -          -          -             -             -          -           -
Référence bobine AC 12 V          -          -          -             -             -          -           -
Référence bobine DC 24 V       ELV81515   ELV81515   ELV81515     ELV81515       ELV81515   ELV81515    ELV81515
Référence bobine DC 12 V       ELV81530   ELV81530   ELV81530     ELV81530       ELV81530   ELV81530    ELV81530
Référence membrane NBR            -          -          -             -             -          -           -
Référence membrane EPDM           -          -          -             -             -          -           -
Référence membrane VITON          -          -          -             -             -          -           -

                                                                                                                   255
BRASS STREAM VALVES
2/2-Way Pilot Operated Piston Solenoid Valve . Normally closed

                                                                 1/4
2/2-Way Pilot Operated Piston Solenoid Valve . Normally closed

                                                     ELV35004

                                                     ELV35006

                                                     ELV35008

                                                     ELV35010

                                                      ELV35012

                                                                 2/4
                              1/4

        INOX STREAM VALVES
2/2-Way Pilot Operated Piston Solenoid Valve . Normally closed

                                                     3G-CBM-03268

                                                     ELV40004

                                                     ELV40006

                                                     ELV40008

                                                                 3/4
2/2-Way Pilot Operated Piston Solenoid Valve . Normally closed

                                                                 4/4

Technical Documents

(2)

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

ELV Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

Where can I buy the ELV40002 steam solenoid valve in your region?

3G Electric supplies the ELV40002 stainless steel steam solenoid valve with delivery to your location. We handle all customs import permits and customs clearance. Contact us for stock status and competitive USD pricing.

What is the lead time for ELV40002 delivery to your region?

Lead time varies by availability. Contact 3G Electric for current delivery schedules. We manage full logistics to your facility, including import documentation and customs coordination.

Is the ELV40002 suitable for my steam system operating at 8 bar?

Yes. The ELV40002 is rated for 0.5 to 10 bar operating pressure, so 8 bar falls within spec. Its 15 mm passage diameter and Cv 4.5 deliver reliable modulating control for manufacturing and heating steam lines.
