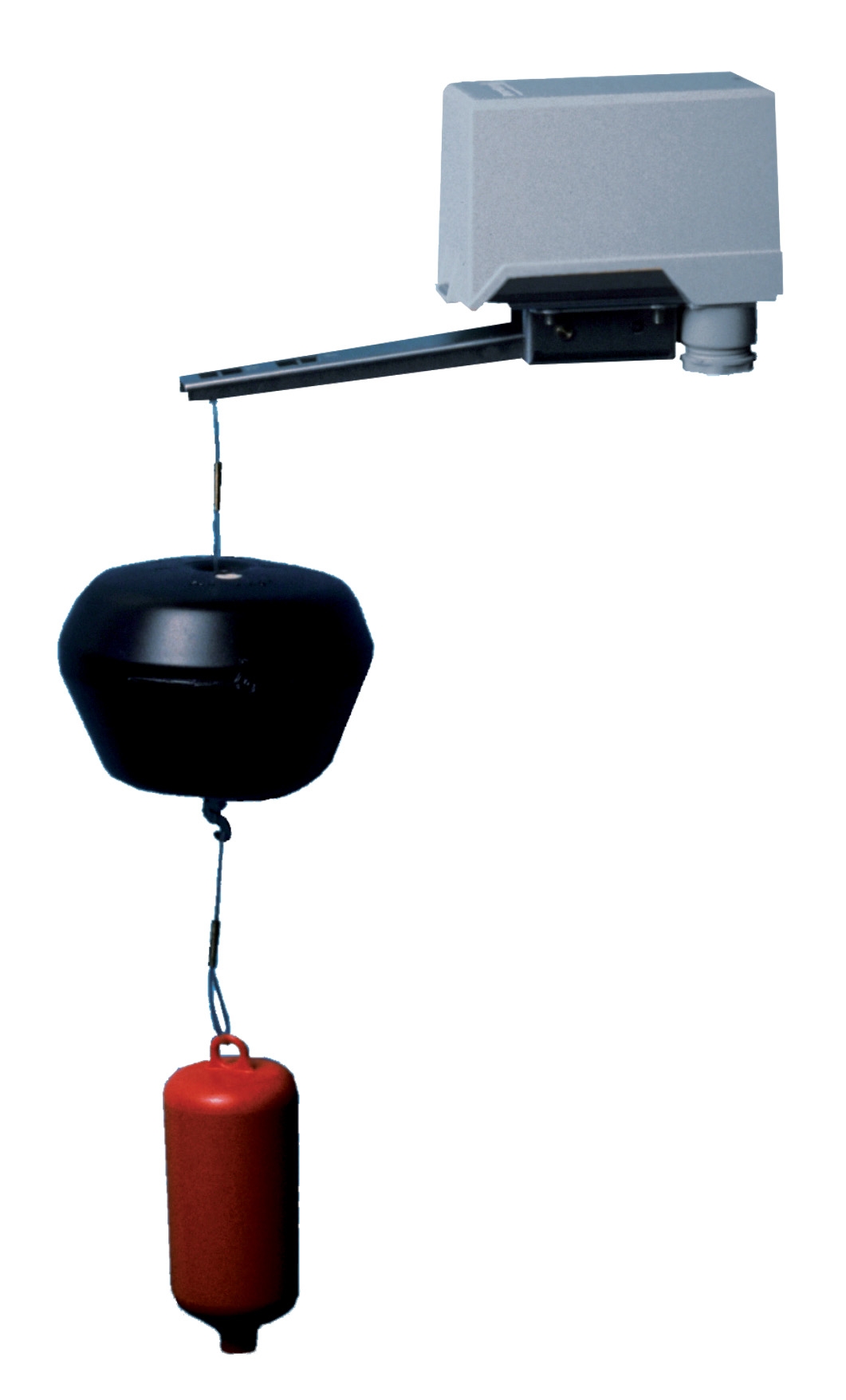

Fantini Cosmi Three-pole float switch A70

SKU 3G-CBM-03508

Also listed as: FAN 02044 · FAN-02044

Brand

Fantini Cosmi

Item

Three-pole float switch A70

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

Fantini Cosmi

type

three-pole float switch

power

4 kW (5.5 Hp)

voltage

380/415V

contacts

silver alloy

connections

G 1/2

protection degree

IP30

adjustable level jump

50÷750 mm

Datasheet Content

A70 : 3G-CBM-03508

INTERRUPTEUR A FLOTTEUR TRIPOLAIRE
 CARACTERISTIQUES GENERALES
-Interrupteur à flotteur de forme compacte pour contrôler le
 remplissage ou le vidage des réservoirs ouverts.
-Couvercle en thermoplastique antichoc.
-Parties métalliques en acier zincohydraté
-Etrier de fixation latéral qu'on peut monter à gauche ou à droite
 de l'appareil
-Prise de terre, deux presse-cables G 1/2
-Degré de protection IP30
-Flotteur en moplen, cable en nylon et contrepoids couvert en
 thermoplastique antichoc et antiacide

 CARACTERISTIQUES TECHNIQUES
-Contacts en alliage d'argent
-Interrupteur tripolaire à double cassure pour pole
-Fluide contrôlé: eau
-Température max. du fluide contrôlé 50°C
-Tension nominal d'isolation Ui 415V
-Courant thermique Ith 20A
-Courant nominal en AC-3 9A
-Puissance contrôlée des moteurs triphasés en AC-3:
 220/240V = 2,2kW (3 Hp)
 380/415V = 4 kW (5,5Hp)




  VIDAGE                                                                         REMPLISSAGE
  Placer le pivot 1 et le contrepoids 2 respectivement sur la lettre B           Placer le pivot 1 et le contre poids 2 respectivement sur la lettre A
  Note: l'écrou C doit être reglé, donc sera laissé dans la position original.   Note: Desserrer completement l'écron C pour toute la longueur de la vis
  L'APPAREIL EST VENDU DEJA PREVU POUR LA FONCTION DE                            pour obtenir é écoulement du ressort que ne sera plus inclus.
  VIDAGE




                                                          ALIMENTATION                                                             ALIMENTATION
                                                                                                                         LE NIVEAU
                                               LE NIVEAU                                                                 AUGMENTE
                                               AUGMENTE

                                                                                                                           Dans le cas
                                               Dans le cas                                                                 de moteurs
                                               de moteurs                                                                  monophase
                                               monophase                                                                   on ne liera
                                               on ne liera                                                                 que deux
                                               que deux                                                                    polex
                                               polex




    TYPE                  SAUT DE NIVEAU REGLABLE

    A70                        50 ÷ 750 mm

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Fantini Cosmi Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Fantini Cosmi A70 is a three-pole float switch rated for 4 kW at 380/415V, designed for liquid-level control in industrial tank and vessel applications. Features silver-alloy contacts, G 1/2 connections, IP30 protection, and adjustable level jump from 50–750 mm, fitting pump control and overflow systems.

Frequently Asked Questions

Where can I buy the Fantini Cosmi A70 float switch in your region?

3G Electric supplies the Fantini Cosmi A70 three-pole float switch with delivery to your location. We handle all customs documentation and logistics. Contact us for availability and lead times on this industrial tank-control switch.

What is the lead time and delivery timeline for the A70 float switch?

Lead time varies based on current stock and sourcing. 3G Electric handles all import logistics and customs clearance to your region. Contact our team for a specific delivery quote on the Fantini Cosmi A70 — we invoice in USD and manage full documentation support.

What tank applications is the Fantini Cosmi A70 suitable for?

The A70 is rated for 4 kW (5.5 Hp) at 380/415V with silver-alloy contacts and G 1/2 connections. Adjustable level jump is 50–750 mm, making it ideal for pump control and overflow protection in industrial tanks and vessel applications. IP30 protection suits most indoor industrial environments.
