ELVSolenoid Valves

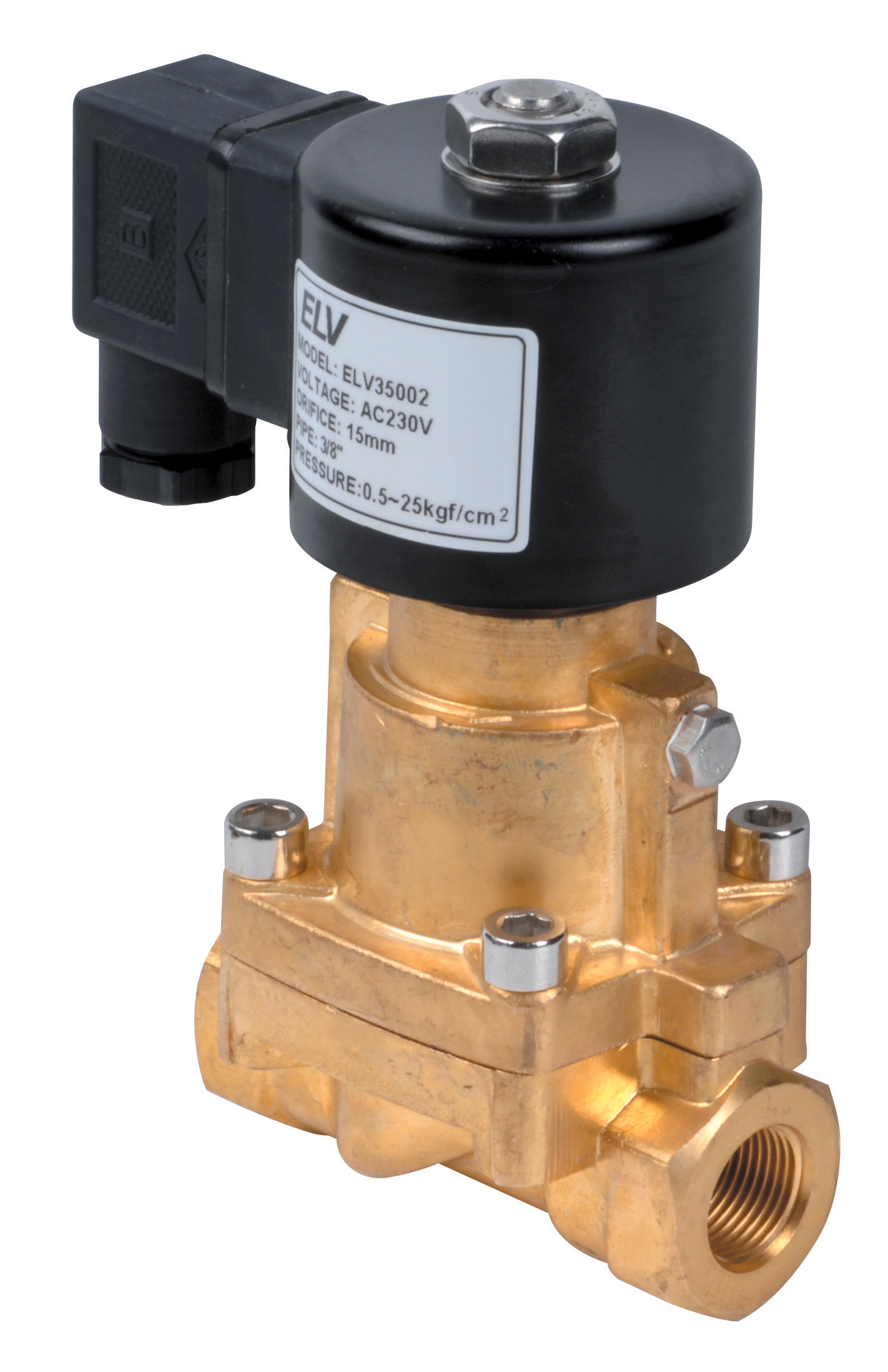

ELV Steam solenoid valve D 1"1/4

ELV steam solenoid valve with DN35 passage diameter and 1"1/4 connection for industrial steam systems. Operates at 0.5–10 bar with 25 bar maximum differential pressure rating. Suited for steam control in heating and…

SKU 3G-CBM-03266

Also listed as: ELV 35010 · ELV-35010

Brand

ELV

Item

Steam solenoid valve D 1"1/4

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

ELV

fluid

Vapeur (Steam)

cv value

16

connection

1"

dimension a mm

120

dimension c mm

168

connection size

1"1/4

max pressure bar

10

passage diameter mm

35

operating pressure bar

0.5-10

fluid viscosity max cst

50

max differential pressure bar

25

Datasheet Content

Electrovannes bronze NF vapeur                                                    Code

      Electrovanne vapeur 3/8”                                                                           ELV35002

      Electrovanne vapeur 1/2”                                                                           ELV35004

      Electrovanne vapeur 3/4”                                                                           ELV35006

      Electrovanne vapeur 1”                                                                             ELV35008

      Electrovanne vapeur 1”1/4                                                                          3G-CBM-03266

      Electrovanne vapeur 1”1/2                                                                          ELV35012

      Caractéristiques techniques
                  Modèle             ELV35002   ELV35004   ELV35006     ELV35008       3G-CBM-03266   ELV35012    ELV35014
      Diamètre Raccord                3/8”       1/2”       3/4”           1”          1”1/4      1”1/2         2”
      Diamètre passage               15mm       15mm       20mm          25mm          35mm       35mm         50mm
      Pression différentielle max.     25         25         25            25            25         25          25
      Valeur CV                        4.5        4.5        9.3          13.2           16         26          48
      Dim. A mm                        75         75         85           100           120        120         150
      Dim. C mm                       129        129        141           148           168        168         190
      Viscosité fluide                                             Moins de 50 CST
      Fluide                                                             Vapeur
      Pression fonctionnement                                         0.5 ~ 10 bar
      Pression maxi                                                      10 bar
      Température maxi                                                5°C ~ 180°C
      Tension                                                      +/- 10% - AC230V
      Matériel corps                                                     Bronze
      Membrane                                                            Teflon
      Mode opération                                                  Action directe
      Type                                                        Normalement fermée

      PIÈCES DE RECHANGES POUR VANNES
                  Modèle             ELV35002   ELV35004   ELV35006     ELV35008       3G-CBM-03266   ELV35012    ELV35014
      Référence bobine 220 V         ELV80515   ELV80515   ELV80515     ELV80515       ELV80515   ELV80515    ELV80515
      Référence bobine 110 V            -          -          -             -             -          -           -
      Référence bobine AC 48 V          -          -          -             -             -          -           -
      Référence bobine AC 24 V          -          -          -             -             -          -           -
      Référence bobine AC 12 V          -          -          -             -             -          -           -
      Référence bobine DC 24 V       ELV81515   ELV81515   ELV81515     ELV81515       ELV81515   ELV81515    ELV81515
      Référence bobine DC 12 V       ELV81530   ELV81530   ELV81530     ELV81530       ELV81530   ELV81530    ELV81530
      Référence membrane NBR            -          -          -             -             -          -           -
      Référence membrane EPDM           -          -          -             -             -          -           -
      Référence membrane VITON          -          -          -             -             -          -           -

254
BRASS STREAM VALVES
2/2-Way Pilot Operated Piston Solenoid Valve . Normally closed

                                                                 1/4
2/2-Way Pilot Operated Piston Solenoid Valve . Normally closed

                                                     ELV35004

                                                     ELV35006

                                                     ELV35008

                                                     3G-CBM-03266

                                                      ELV35012

                                                                 2/4
                              1/4

        INOX STREAM VALVES
2/2-Way Pilot Operated Piston Solenoid Valve . Normally closed

                                                     ELV40002

                                                     ELV40004

                                                     ELV40006

                                                     ELV40008

                                                                 3/4
2/2-Way Pilot Operated Piston Solenoid Valve . Normally closed

                                                                 4/4

Technical Documents

(2)

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

ELV Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

Where can I buy the ELV35010 steam solenoid valve in your region?

3G Electric stocks and sources the ELV35010 for delivery to your location. We handle all customs documentation and logistics. Contact us for availability and USD pricing on this DN35, 1"1/4 steam control valve.

What is the lead time for the ELV35010 solenoid valve to your region?

Lead time varies based on current stock and sourcing status. The ELV35010 is available to order. Contact 3G Electric for a specific delivery timeline to your location in your region, including any customs clearance.

What are the operating specifications of the ELV35010 steam valve?

The ELV35010 operates at 0.5–10 bar with a 25 bar maximum differential pressure rating. It features a DN35 passage diameter, 1"1/4 connection, and Cv value of 16. Designed for steam heating and process control in industrial applications.
