ELVSolenoid Valves

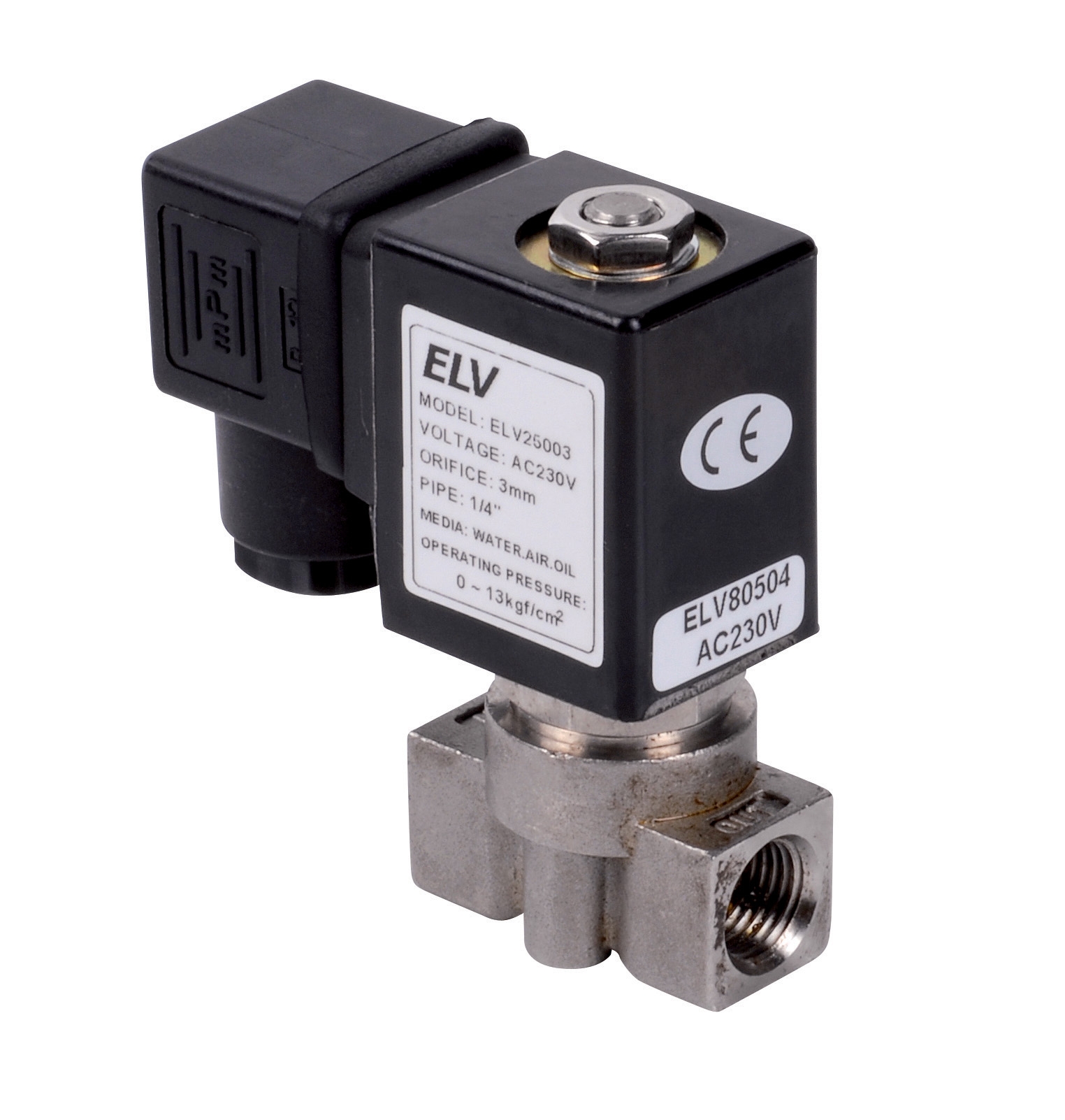

ELV Stainless steel solenoid valve D.3/4 NF 230V MINI 0

ELV stainless steel solenoid valve with 3/4 inch connection handles air, water, and fuel oil to 16 bar maximum pressure. Operates at 230V or 24V with power consumption of 33 VA and 32 W respectively. Suited for…

SKU 3G-CBM-03243

Also listed as: ELV 25008 · ELV-25008

Brand

ELV

Item

Stainless steel solenoid valve D.3/4 NF 230V MINI 0

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

ELV

size

3/4 inch

fluid

Air, Water, Fuel Oil

max pressure

16 bar

fluid viscosity

less than 20 CST

voltage options

230V, 24V

working pressure air

0-10 bar

power consumption 24v

32 W

working pressure fuel

0-5 bar

power consumption 220v

33 VA

working pressure water

0-10 bar

Datasheet Content

=v

Solenocia valve

Electrovannes inox NF Code
Action directe - Pression différentiel 0

lectrovanne 1/4” * Avec connecteur ELV25003
lectrovanne 3/8” Avec connecteur ELV25004
lectrovanne 1/2” © Avec connecteur ELV25006
lectrovanne 3/4” © Avec connecteur 3G-CBM-03243
lectrovanne 1” * Avec connecteur ELV25010
lectrovanne 1”1/4 * Avec connecteur ELV25012

lectrovanne 11/2 © Avec connecteur ELV25014

lectrovanne 2” Avec connecteur ELV25016

CARACTERISTIQUES TECHNIQUES

Diamétre Raccord 1/4" 3/8" 1/2" 3/4" 1" W1/41"1/2 2"
Diamétre passage 3mm 16mm 16mm 20mm 25mm 35mm 40mm 50mm
Pression différentielle max. 13 10 10 10 10 10 10 10
Valeur CV 0.23 48 48 7.6 12 24 29 48
Consommation VA 220 volt 22 33 33 33 33 70 70 70
Consommation W 24 volt 13 32 32 32 32 40 40 40
Dim L mm 40.5 69 69 73 99 123 123 168
Dim H mm 75 117 117 123.5 134,5 172 172 209
Viscosité fluide Moins de 20 CST
Fluide Air - Eau - Fioul
T Pression fonctionnement Eau:0~10 Air:0~10  Fioul: 0 ~ 5 bar
| Pression maxi 16 bar
| Température maxi -5 ~90°C
fo = Tension +/- 10% - AC230V
Matériel corps Acier INOX
Membrane NBR
Mode opération Action directe
——_— Type Normalement fermée
Protection IP IP65

PIECES DE RECHANGES POUR VANNES

Modéle | 125003 Jew25004 J ewv25006 | ew25008 | ew2sor0 J ewvasor2 J ewvasor4 J ew25016

Référence bobine 220 V ElV80504 ELV80502 ELV80502 ELV80502 ELV80502 ELV80506 ELV80506 ELV80506
Référence bobine 110 V E1V80522 E1V80520 ElV80520 EV80520 ELV80520 ELV80524 ELV80524 ELV80524
Référence bobine AC 48 V Elv80542 ELV80540 EIV80540 ELV80540 ELV80540 : :

Référence bobine AC 24 V FLV80562 EIV80560 ELV80560 ELV80560 ELV80560 ELV80564 ELV80564 ELV80564
Référence bobine AC 12 V ElV80604 ELV80602 ELV80602 ELV80602 ELV80602 : - -
Référence bobine DC 24 V EV81504 ELV81502 EIV81502 ELV81502 ELV81502 ELV81506 ELV81506 ELV81506
Référence bobine DC 12 V ElV81522 ElV81520 EIV81520 ELV81520 ELV81520 ElV81524 ELV81524 ElV81524
Référence membrane NBR : FlV90502 EIV90502 ELV90502 ELV90504 ELV90506 ELV90507 ELV90508
Référence membrane EPDM - EIV91502 ELV91502 ELV91502 ELV91504 ELV91506 ELV91507 ELV91508
Référence membrane VITON > FlV92502 ELV92502 ELV92502 ELV92504 ELV92506 ELV92507 ELV92508

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

ELV Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

Where can I buy the ELV 25008 solenoid valve in your region?

3G Electric supplies the ELV 25008 stainless steel solenoid valve with delivery to your location. We handle all import logistics, customs customs clearance, and USD invoicing. Contact us for availability and lead times.

What is the lead time and delivery schedule for this valve?

Lead time on request. 3G Electric manages all shipping logistics to your region, including customs processing. Delivery destinations include your location. Contact our team for a specific delivery quote.

What fluids and pressures does the ELV 25008 handle?

The ELV 25008 handles air, water, and fuel oil up to 16 bar maximum. Working pressure ranges: air 0–10 bar, water 0–10 bar, fuel oil 0–5 bar. Stainless steel construction suits corrosive industrial environments.
