ELVSolenoid Valves

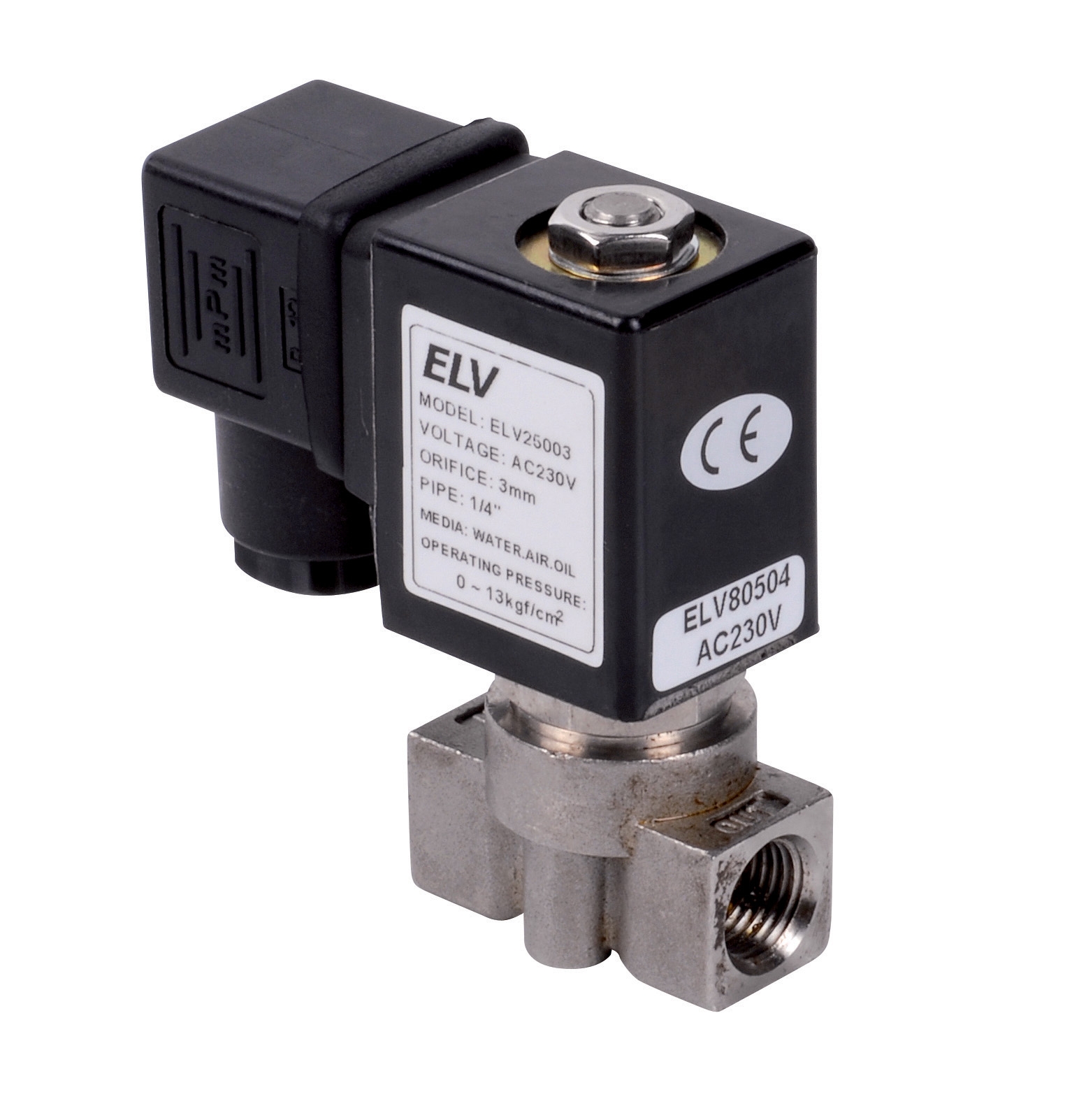

ELV Stainless steel electrovalve D.1/4 NF 230V MINI 0

ELV stainless steel solenoid valve with 1/4" port handles air, water, and fuel oil at up to 16 bar maximum pressure. Rated 230V with 22 VA consumption, suited for compact pneumatic and fluid control applications…

SKU 3G-CBM-03240

Also listed as: ELV 25003 · ELV-25003

Brand

ELV

Item

Stainless steel electrovalve D.1/4 NF 230V MINI 0

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

ELV

fluids

Air, Water, Fuel oil

voltage

230V

port size

1/4"

pressure max

16 bar

consumption va

22

consumption w 24v

13

fluid viscosity max

20 CST

pressure working air

0-10 bar

pressure working fuel

0-5 bar

pressure working water

0-10 bar

Datasheet Content

=v

Solenocia valve

Electrovannes inox NF Code
Action directe - Pression différentiel 0

lectrovanne 1/4” * Avec connecteur 3G-CBM-03240
lectrovanne 3/8” Avec connecteur ELV25004
lectrovanne 1/2” © Avec connecteur ELV25006
lectrovanne 3/4” © Avec connecteur ELV25008
lectrovanne 1” * Avec connecteur ELV25010
lectrovanne 1”1/4 * Avec connecteur ELV25012

lectrovanne 11/2 © Avec connecteur ELV25014

lectrovanne 2” Avec connecteur ELV25016

CARACTERISTIQUES TECHNIQUES

Diamétre Raccord 1/4" 3/8" 1/2" 3/4" 1" W1/41"1/2 2"
Diamétre passage 3mm 16mm 16mm 20mm 25mm 35mm 40mm 50mm
Pression différentielle max. 13 10 10 10 10 10 10 10
Valeur CV 0.23 48 48 7.6 12 24 29 48
Consommation VA 220 volt 22 33 33 33 33 70 70 70
Consommation W 24 volt 13 32 32 32 32 40 40 40
Dim L mm 40.5 69 69 73 99 123 123 168
Dim H mm 75 117 117 123.5 134,5 172 172 209
Viscosité fluide Moins de 20 CST
Fluide Air - Eau - Fioul
T Pression fonctionnement Eau:0~10 Air:0~10  Fioul: 0 ~ 5 bar
| Pression maxi 16 bar
| Température maxi -5 ~90°C
fo = Tension +/- 10% - AC230V
Matériel corps Acier INOX
Membrane NBR
Mode opération Action directe
——_— Type Normalement fermée
Protection IP IP65

PIECES DE RECHANGES POUR VANNES

Modéle | 125003 Jew25004 J ewv25006 | ew25008 | ew2sor0 J ewvasor2 J ewvasor4 J ew25016

Référence bobine 220 V ElV80504 ELV80502 ELV80502 ELV80502 ELV80502 ELV80506 ELV80506 ELV80506
Référence bobine 110 V E1V80522 E1V80520 ElV80520 EV80520 ELV80520 ELV80524 ELV80524 ELV80524
Référence bobine AC 48 V Elv80542 ELV80540 EIV80540 ELV80540 ELV80540 : :

Référence bobine AC 24 V FLV80562 EIV80560 ELV80560 ELV80560 ELV80560 ELV80564 ELV80564 ELV80564
Référence bobine AC 12 V ElV80604 ELV80602 ELV80602 ELV80602 ELV80602 : - -
Référence bobine DC 24 V EV81504 ELV81502 EIV81502 ELV81502 ELV81502 ELV81506 ELV81506 ELV81506
Référence bobine DC 12 V ElV81522 ElV81520 EIV81520 ELV81520 ELV81520 ElV81524 ELV81524 ElV81524
Référence membrane NBR : FlV90502 EIV90502 ELV90502 ELV90504 ELV90506 ELV90507 ELV90508
Référence membrane EPDM - EIV91502 ELV91502 ELV91502 ELV91504 ELV91506 ELV91507 ELV91508
Référence membrane VITON > FlV92502 ELV92502 ELV92502 ELV92504 ELV92506 ELV92507 ELV92508

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

ELV Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

Where can I order the ELV D.1/4 NF 230V solenoid valve in your region?

3G Electric sources this ELV stainless steel valve for delivery to your location, your location, and across your region. We handle all customs import documentation and customs clearance. Lead time on request — contact our procurement team for availability and USD quotation.

What is the maximum operating pressure and fluid compatibility?

The ELV D.1/4 NF solenoid valve is rated to 16 bar maximum. It handles air (0–10 bar), water (0–10 bar), and fuel oil (0–5 bar). Fluid viscosity must not exceed 20 CST. Power consumption is 22 VA at 230V AC.

What are typical lead times and shipping to your region?

Lead time depends on stock availability in our supply chain; we quote per order. Once confirmed, we arrange logistics to your facility in your location, your location, or other your regionn locations, managing all customs and import duties through our freight partners.

Used in

Common applications for ELV

Pneumatic automation and directional control — ELV 2/2-way and 3/2-way pilot-operated solenoid valves in compressed-air circuits

Fluid-power machinery — ELV cavity cartridges and manifold-integrated solenoids in hydraulic and lubrication systems

Packaging and filling equipment — ELV proportional and on-off solenoid valves for rapid actuation and media switching

Water treatment and circulation systems — ELV valves rated for continuous water flow control and process isolation

Gas burner and combustion control — ELV solenoid coils for gas isolation and pilot fuel regulation in industrial burner systems

Maintenance and retrofit projects — ELV replacement solenoid coils and membrane kits for in-service valve replacement without removing the valve body
