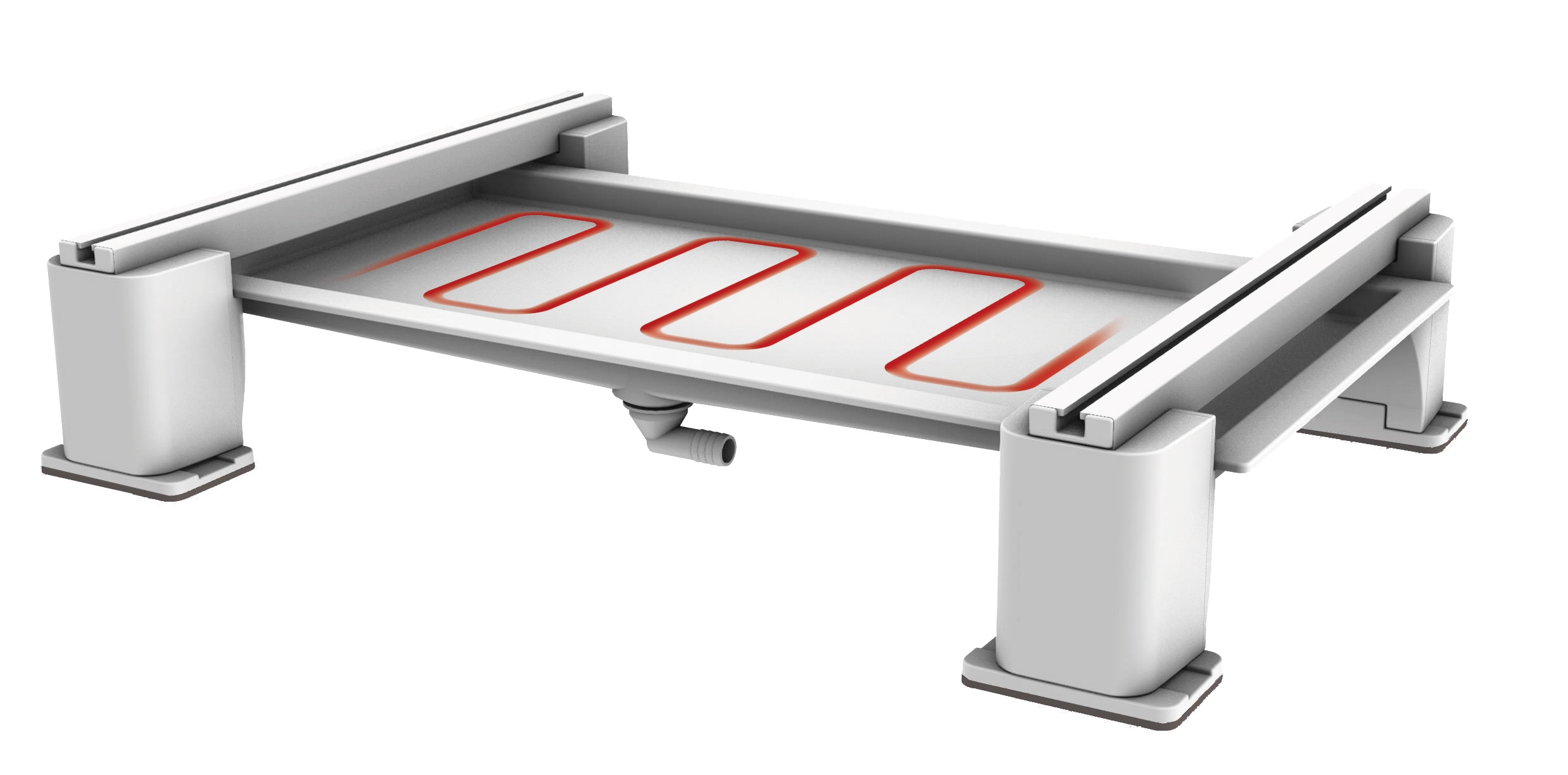

CBM Condensate pan on stand 790x548 with heating resistor

CBM CLI | Bac condensat sur pied 790x548 avec résistance chauffante

SKU 3G-CBM-01042

Also listed as: CLI 04806 · CLI-04806

Brand

CBM

Item

Condensate pan on stand 790x548 with heating resistor

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

CBM

dimensions

790 X 548 mm

Datasheet Content

3G-CBM-01042 – Bac condensat sur pied 790x548mm
                               Avec résistance chauffante




A.G.S. est un système de support d'unités de condensation
Il vous permet d'installer le bac de récupération des condensats à 110 mm du sol
Il est fait de matériau thermoplastique à haute résistance
Les supports au sol sont empilables et permettent de multiples applications en hauteur
La barre de connexion permet des variations de longueur et de profondeur
Les supports au sol comprennent un joint en caoutchouc TPE amortissant les vibrations pour une
installation au sol sécurisée
Équerres en acier inoxydable pour l'ancrage des supports au sol

AVANTAGES:
Fourni avec bac de récupération des condensats pouvant être positionnés à 110 mm du sol
Installation simple et rapide
Possibilité d'ancrage au sol
Réglable en hauteur, longueur et profondeur
Il réduit les vibrations transmises par les groupes de condensation à la surface d'installation
Possibilité de personnaliser le système grâce à ses composants modulaires

Composants du système:
4 supports de sol de 158 mm de hauteur, fournis avec caoutchouc anti‐vibration
2 barres 548 mm
790 × 390 h 40 mm Bac de récupération des condensats avec résistance ; évacuation des condensats
à 90 °, Ø 20 mm
Kit de vis en nylon

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

CBM Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

CBM CLI | Bac condensat sur pied 790x548 avec résistance chauffante

Frequently Asked Questions

Where can I buy the CBM CLI04806 condensate pan on stand?

Order the CBM CLI04806 from 3G Electric, an authorized distributor of CBM HVAC components. We handle worldwide delivery, customs clearance, and logistics for all equipment sourced through our platform.

What are the lead times for the CBM CLI04806?

Lead time varies by region and current availability. Contact 3G Electric with your destination and quantity for a confirmed delivery schedule. We manage sourcing and customs documentation.

What are the dimensions and heating capability of the CLI04806?

The CBM CLI04806 condensate pan measures 790×548 mm and includes an integrated heating resistor for freeze protection in cold climates. The resistor prevents condensate line blockage during winter operation.
