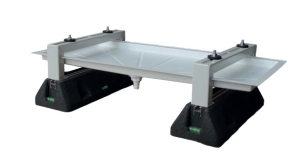

CBM Condensate pan with rubber P510 x H240

CBM condensate pan for air conditioning systems features steel construction with electrozinc epoxy finish and rubber supports rated for 300 kg maximum load capacity. Pan dimensions measure 940 x 420 mm with 240 mm…

SKU 3G-CBM-00859

Also listed as: CLI 04425 · CLI-04425

Brand

CBM

Item

Condensate pan with rubber P510 x H240

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

CBM

depth mm

510

material

steel electrozinc epoxy finish RAL 9002

height mm

240

pan dimensions mm

940 x 420

max load capacity kg

300

rubber support length mm

600

Datasheet Content

Mode d'emploi

BAC CONDENSAT AVEC RUBBER

CLI04424-25
     KIT DE SUPPORT METALLIQUE

     CLI04424 P510xH120 mm                1 carton
     3G-CBM-00859 P510xH240 mm                1 carton

     Support en acier électrozingué finition époxy
     (RAL 9002).

     Profondeur : 510 mm,
     Hauteurs : 120 mm ou 240 mm.
                                                                                P
     Kit composé d'un bac de récupération et de
     supports rubber 600 mm.
                                                                      H
     Fourni complet avec vis de fixation, caoutchoucs
     anti-vibrations et niveaux.

     Capacité de charge maximale par pièce : 150 kg

                                                                                    510

                                                                          240
                                            120

                                                  95

                                                                                    600

          LIBELLÉS                                                   POIDS MAX      CODE CBM
                                                   P 510 x H 120
          Bac condensat avec rubber 600                              300 kg           CLI04424
                                                   Bac : 940 x 420
                                                   P 510 x H 240
          Bac condensat avec rubber 600                              300 kg           3G-CBM-00859
                                                   Bac : 940 x 420

02

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

CBM Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

Where can I buy the CBM CLI04425 condensate pan worldwide?

Order the CBM CLI04425 from 3G Electric, an authorized distributor. We handle customs, logistics, and worldwide delivery. Lead time on request — contact us for availability and shipping terms.

What is the maximum load capacity of this condensate pan?

The CBM CLI04425 condensate pan is rated for a maximum load capacity of 300 kg. It features steel construction with electrozinc epoxy finish and rubber supports measuring 600 mm in length for stable HVAC installation.

What are the dimensions and material of the CBM CLI04425 pan?

Pan dimensions are 940 x 420 mm with 240 mm height. The pan is constructed from steel with electrozinc epoxy finish (RAL 9002) and includes rubber supports. Depth measures 510 mm, designed for durable condensate collection in air conditioning systems.

Used in

Common applications for CBM

Industrial boilers — CBM circulation pumps (mod. CM 30W) and solenoid valves (ELV series) for heating-loop control and pump staging.

Burner systems — CBM oil nozzles (FLU atomizer types), electrodes (ELC 200 mm), and solenoid coils (ELV 230V AC) for combustion ignition and flame supervision.

Plant maintenance and retrofit — CBM cable glands (CLI M25), motor couplings (ACC type D), and small-radius fittings (RAC 90°) for equipment reconfiguration and sensor integration.

Boiler water treatment — CBM chlorine test kits (DET free+combined) for feedwater and circulating-water quality monitoring in closed-loop systems.

Pump and motor assembly — CBM couplings, fittings, and cable glands for assembly and rewinding of industrial motors, circulation pumps, and auxiliary equipment.
