CBMHVAC & Refrigeration

CBM Condensate pan on stand 945x584

CBM CLI | Bac condensat sur pied 945x584

SKU 3G-CBM-01041

Also listed as: CLI 04804 · CLI-04804

Brand

CBM

Item

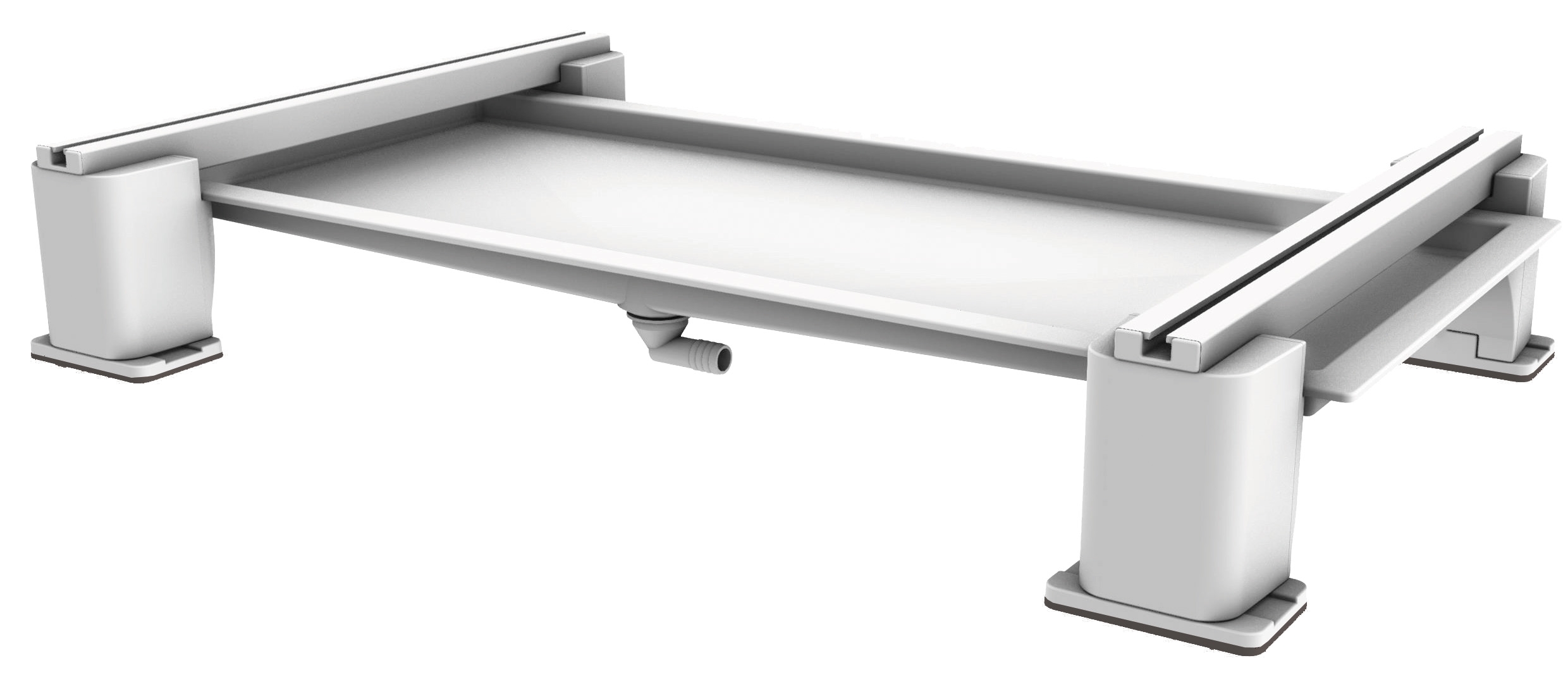

Condensate pan on stand 945x584

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

CBM

dimensions

945 X 584 mm

Datasheet Content

3G-CBM-01041 – Bac condensat sur pied 945x584mm




A.G.S. est un système de support d'unités de condensation
Il vous permet d'installer le bac de récupération des condensats à 110 mm du sol
Il est fait de matériau thermoplastique à haute résistance
Les supports au sol sont empilables et permettent de multiples applications en hauteur
La barre de connexion permet des variations de longueur et de profondeur
Les supports au sol comprennent un joint en caoutchouc TPE amortissant les vibrations pour une
installation au sol sécurisée
Équerres en acier inoxydable pour l'ancrage des supports au sol

AVANTAGES:
Fourni avec bac de récupération des condensats pouvant être positionnés à 110 mm du sol
Installation simple et rapide
Possibilité d'ancrage au sol
Réglable en hauteur, longueur et profondeur
Il réduit les vibrations transmises par les groupes de condensation à la surface d'installation
Possibilité de personnaliser le système grâce à ses composants modulaires

Composants du système:
4 supports de sol de 158 mm de hauteur, fournis avec caoutchouc anti‐vibration
2 barres 548 mm
945 × 425 h 40 mm Bac de récupération des condensats avec évacuation des condensats à 90 °, Ø 20
mm
Kit de vis en nylon

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

CBM Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

CBM CLI | Bac condensat sur pied 945x584

Frequently Asked Questions

Where can I buy the CBM CLI04804 condensate pan on stand worldwide?

3G Electric is an authorized distributor of CBM products. We supply the CLI04804 condensate pan (945 × 584 mm) with worldwide delivery. Our logistics team handles customs clearance and shipping to your facility.

What is the lead time for the CBM CLI04804 condensate pan?

Lead time depends on current availability and your location. Contact 3G Electric with your delivery address for a firm lead-time estimate. We coordinate all international logistics and documentation.

What are the dimensions of the CBM CLI04804 condensate pan on stand?

The CBM CLI04804 measures 945 × 584 mm. This size fits standard HVAC installations requiring robust condensate collection on a support stand for floor-level mounting.
